COA-030

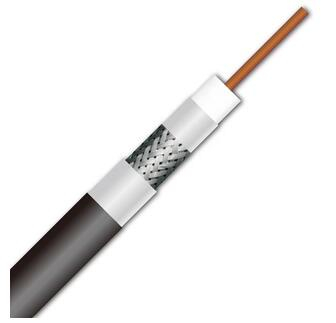

Best Quality Rg11 Low loss 14 AWG Tri-shield Coaxial Cable for Cable/Satellite Service
Replace RG6 or RG59 or RG7 which looses a lot of signal over distance, with new Top Quality Rg11 HD HIGH DEF Triple Shielded Broadcast Coaxial Cable, more Bandwidth.
Tri Shield low loss RG 11 Coax Wire is ideal for The RG11 PVC coaxial cable is typically used for cable or satellite service. RG11 has an impedance of 75 ohms and is used for the longer runs or back boning premise wiring. This RG11 PVC cable features a solid 14 AWG copper clad steel center conductor with a 77% aluminum Mg braid and 100% aluminum foil shield.
Product Highlights
Features:
|
Applications:
Satellite, High Definition Cable TV, CATV Installs
Cable Internet Modem, Off-Air Antenna Cabling
Short Wave Radio & Ham Radio, Electrical Sensor Devices, Long Range WIFI
Antennas Security Camera Installation
Cellular Signal Booster and all other Analog or High Frequency Digital Audio / Video Signal Transmission .

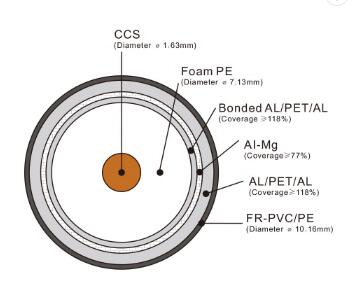

| Product Construction | |
| Inner Conductor | CCS |
| (Diameter ∅1.63mm) | |
| Insulation | Foam PE |
| (Diameter ∅7.13mm) | |
| 1st Shield | Bonded AL/PET/AL |
| (Coverage ≥118%) | |
| 2nd Shield | AI-Mg |
| (Coverage≥77%) | |
| 3nd Shield | AL/PET/AL |
| (Coverage ≥118%) | |
| Jacket | FR-PVC/PE |
| (Diameter ∅10.16mm) | |
| Other | Color,printing accoring to customer's requirement |
| Mechanical Characteristic | |||
| Minimum Bending Radius | 100mm | ||
| Inner Conductor Adhesion Force | >44N | ||
| Application Environment | - 40℃ ~ + 75℃ | ||
| Environmental Standards | ROHS | ||
| Packaging Length | Accoring to customer's requirement | ||
| Electrical Characteristic | ||
| Impedance | Transmission Rate | Return Loss |
| Ω | % | dB |
| 75±3 | 82 | 5---1002MHz >20 |
| 1003--3000MHZ >15 | ||
| Attenuation | ||
| Frenquency | @20ºC | @20ºC |
| MHz | db/100m | db/100Ft |
| 5 | 1.25 | 0.38 |
| 55 | 3.15 | 0.96 |
| 211 | 6.23 | 1.9 |
| 350 | 7.93 | 2.42 |
| 450 | 9.02 | 2.75 |
| 550 | 9.97 | 3.04 |
| 750 | 11.97 | 3.65 |
| 1000 | 14.26 | 4.35 |
| 1450 | 17.34 | 5.29 |
| 1850 | 20.07 | 6.12 |
| 2250 | 22.16 | 6.76 |
| 3000 | 24.26 | 7.4 |
Quality and standards are the foundation of TC. We are dedicated to providing customers with the outstanding, standards-compliant products and services.
TC has passed many quality system verification, like RoHS, UL, ISO9001, ISO14001, established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.
