CE Standard Cheap Prices Single Core 4mm PVC Insulated Copper Electrical Wire

Availability:
Quantity:
Inquire Add to Basket

  • FS-SＣ００２

Packaging & Delivery

  • Packaging Details

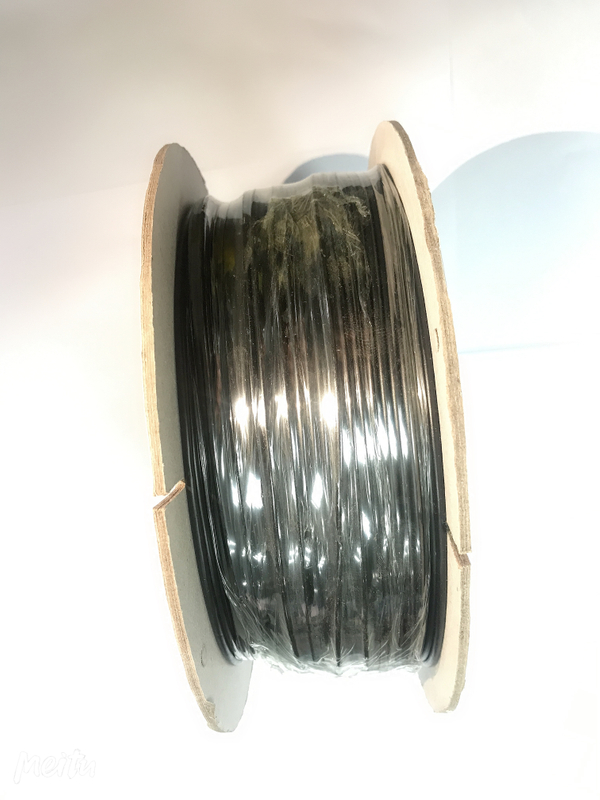

  • coil/wooden drum



  • Lead Time :

  • Quantity(Meters) 1 - 10000 10001 - 30000 >30000
    Est. Time(days) 30 60 To be negotiated
Details Images
Products Description
Standard
1.The executive standard of PVC insulated cables is GB/T 5023 (equal to IEC 60227) or JB/T 8734;

2.The executive standard of flame retardant/fire resistant PVC insulated cable is Q/320481SS511;low smoke halogenfree polyolefin insulated cable is Q/320481SS026.

Product operating characteristics
1.Product is applicable to internal wiring and power lighting system in instruments and electrical devices of rated voltage up to and including 450/750V.

2.The maximum permissible long-term operating temperature is 70 ° C. The maximum permissible operating temperature for XLPO insulated wires is 90 ° C.

3.Ambient temperature in installation: the ambient temperature is not below 0℃ during normal installation; when it is below 0℃, the product shall be preheated.
Single core solid copper conductor PVC insulated rigid electrical wire
Model
Rated voltage
Available size
60227 IEC 01 (BV)
450/750V
1.5mm2,2.5mm2,4mm2,6mm2,10mm2,16mm2,25mm2,35mm2,50mm2,70mm2,95mm2,120mm2,150mm2,185mm2,240mm2,300mm2,400mm2
60227 IEC 05 (BV)
300/500V
0.5mm2,0.75mm2,1mm2
Z*-BV /(Z*)N-BV
300/500V;450/750V
0.5mm2,0.75mm2,1mm2,1.5mm2,2.5mm2,4mm2,6mm2,10mm2,16mm2,25mm2,35mm2,50mm2,70mm2,95mm2,120mm2,150mm2,185mm2,240mm2,300mm2,400mm2
Double insulation type
BVV
Z*-BVV
(Z*)N-BVV
300/500V
0.75mm2,1mm2,1.5mm2,2.5mm2,4mm2,6mm2,10mm2,16mm2,25mm2,35mm2,50mm2,70mm2,95mm2,120mm2,150mm2,185mm2
Single core solid copper conductor PO/XLPO insulated rigid electrical wire
WDZ*(N)-BY
WDZ*(N)-BYJ
300/500V,450/750V
0.5mm2,0.75mm2,1mm2,1.5mm2,2.5mm2,4mm2,6mm2,10mm2,16mm2,25mm2,35mm2,50mm2,70mm2,95mm2,120mm2,150mm2,185mm2,240mm2,300mm2,400mm2
Single core solid Aluminum conductor  PVC insulated rigid electrical wire
BLV
450/750V
2.5mm2,4mm2,6mm2,10mm2,16mm2,25mm2,35mm2,50mm2,70mm2,95mm2,120mm2,150mm2,185mm2,240mm2,300mm2,400mm2
Z*-BLV
Model
Rated voltage
Available size
Single core copper conductor multi-strand PVC insulated flexible electrical wire
60227 IEC 02(RV)
450/750V
1.5mm2,2.5mm2,4mm2,6mm2,10mm2,16mm2,25mm2,35mm2,50mm2,70mm2,95mm2,120mm2,150mm2,185mm2,240mm2
60227 IEC 06(RV)
300/500V
0.5mm2,0.75mm2,1mm2
Z*-RV
(Z*)N-RV
300/500;450/750
0.5mm2,0.75mm2,1mm2,1.5mm2,2.5mm2,4mm2,6mm2,10mm2,16mm2,25mm2,35mm2,50mm2,70mm2,95mm2,120mm2,150mm2,185mm2,240mm2
BVR
Z*-BVR
(Z*)N-BVR
450/750V
0.75mm2,1mm2,1.5mm2,2.5mm2,4mm2,6mm2,10mm2,16mm2,25mm2,35mm2,50mm2,70mm2,95mm2,120mm2,150mm2,185mm2
Single core copper conductor multi-strand PO/XLPO insulated flexible electrical wire
WDZ*(N)-BYR
WDZ*(N)-BYJR
300/500V;450/750V
0.5mm2,0.75mm2,1mm2,1.5mm2,2.5mm2,4mm2,6mm2,10mm2,16mm2,25mm2,35mm2,50mm2,70mm2,95mm2,120mm2,150mm2,185mm2,240mm2
Remarks
Each conductor of the RV wire is thinner than the BVR, so it is more flexible than the BVR. It is mostly used as an electrical or mechanical internal connection wire. It is often used in security equipment and instrumentation.
About the model:
1) "Z*"，“ZR” means flame retardant properties, and the flame retardant properties of the wire are classified into Class A, Class B and Class C. "*" can be replaced with "A" or "B" or "C". Generally, the flame retardant Class A is marked as "ZA", Class A is marked as "ZB" , "ZR" default means flame retardant Class C, or marked as "ZC". Flame retardant performance ZA>ZB>ZC(ZR).

2) "WDZ*" means low smoke free halogen fire properties, code "WDZA", "WDZB", "WDZC".

3) "N" means fire resistant. For example, ZAN-BVR means Class A flame retardant and fire resistant BVR electrical wire.When the wire has only fire resistance, the model prefix is only marked "NH", such as "NH-BV".

4) “V” means PVC insulation; "Y" means PO insulation;"YJ " means XLPO insulation.
