Factory Price High Quality RG6 RG11 RG59 RG58 Coaxial Cable For TV/CATV/Satellite/Antenna/CCTV

Availability:
Quantity:
  • COA-008

Product Description

 Factory Price High Quality RG6 RG11 RG59 RG58 Coaxial Cable For TV/CATV/Satellite/Antenna/CCTV

RF coaxial cable assembly (7/16DIN/N/TNC/BNC/FME/U.FL/IPEX/L9/SMA/SMB/MMCX/MCX/OEM)
We focus on coaxial assemblies
Our custom RF cable assemblies are built-in and shipped worldwide
RF cable assemblies in 50 ohms can be ordered using the following connector types such as 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 ohms cable assemblies can be made with the following 75 ohms connectors such as BNC, F, N, SMB, SMC, TNC and mini SMB

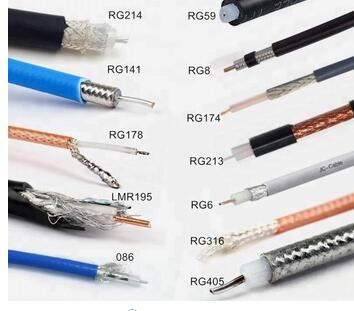

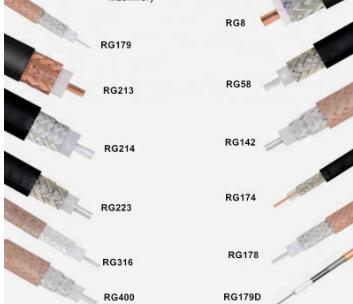

RF cable assemblies includes: RG141/RG142/RG174/ RG178/RG179/RG180/ RG187/RG196/RG213/RG214/RG218/RG219/ RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG402/RG405/RG58/U
RF cable assemblies can be produced with many different connector types and custom lengths depending on your needs and applications
If you require a special RF cable assembly configuration not found here, you can create your own RF cable assembly configuration by calling our sales department
We are manufactory,Can be customized by customer..
1. All materials are RoHS approved
2.Competitive price
3.OEM service offered
4.We are able to supply various types of connector according to clients’ requirement

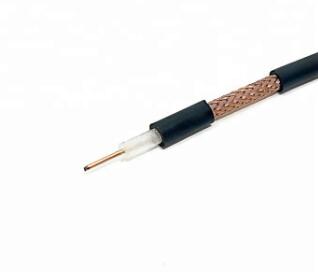

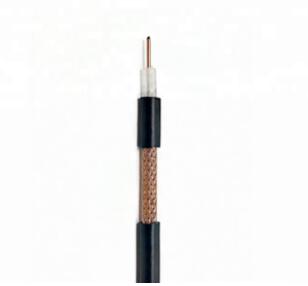

Construction Spectification



Item

Material

Diamenter (mm)

1. Inner Conductor

Tinned Copper

19x0.18

2. Dielectric

Solid Polyethylene

2.95

3. Outer Conductor

Tinned Copper Braid

3.45

4. Jacket

PVC

4.95




Electrical Characteristics

Capacitance (Pf/M)


101.05

Impedance (Ohm)


50

Velocity(%)


66

Shielding Effectiveness (>dB)


70

Max. Oper. Voltage (VMS)


1900

Operating Temp. (°C)


-20 to 80




Attenuation (Typical)

Frequency (MHz)


Attenuation (≯dB/100m)

100


15.1

400


30.8

1000


50.2
