| Payment & Shipping Terms | Supply Capacity | ||
|---|---|---|---|
| Unit Price: | 3.9~9.99 USD | Production Capacity: | 10,000,000pcs/Month |
| Trade Term: | FOB | Packing: | Clamshell packing |
| Payment Terms: | L/C, T/T, WU | Delivery Date: | About 30 days |
| Min. Order: | 500 Piece/Pieces | ||
| Means of Transport: | Ocean, Air, Land | ||

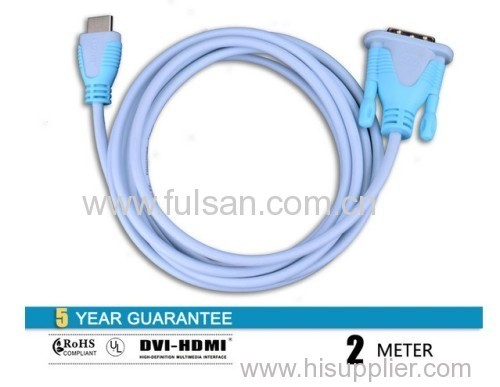

HDMI to DVI(18+1)/(24+1)/(24+5) cable
Specifications
1-Used for transmission of pure uncompressed digital video on one cable
2-Engineered for optimal speed transfer of digital video signals
3-Provides maximum noise rejection, minimal signal loss and ensures exceptional video quality
4-Supports high definition resolutions 1080P, 1080I, 720p and standard video format
5-Supports computer resolutions UXGA (1, 600 X 1, 200), SXGA (1, 280 X 1, 024), XGA (1, 024 X 768), SVGA (800 X 600), VGA (640 X 480)
6-Signal direction: DVI to HDMI
7-HDMI DTVs will display video received from existing DVI-equipped products, and DVI-equipped TVs will display video from HDMI sources
8-HDMI is fully backward-compatible with DVI hot plug for DTVs
9-Cheap HDMI to DVI cable
10-Digital TV-cable, satellite and terrestrial broadcasts
11-Digital movies-DVDs
12-Digital displays-Plasma, LCD, DLP, LCOS
13-Digital interactivity-PVRs, MHP, OCAP
14-D-VHS players
15-Audio/video receivers
16-PS3
HDMI is fully backward-compatible with DVI hot plug for DTVs.
HDMI DTVs will display video received from existing DVI-equipped products, and DVI-equipped TVs will display video from HDMI sources
Up to 5.0Gbps data transfer speed

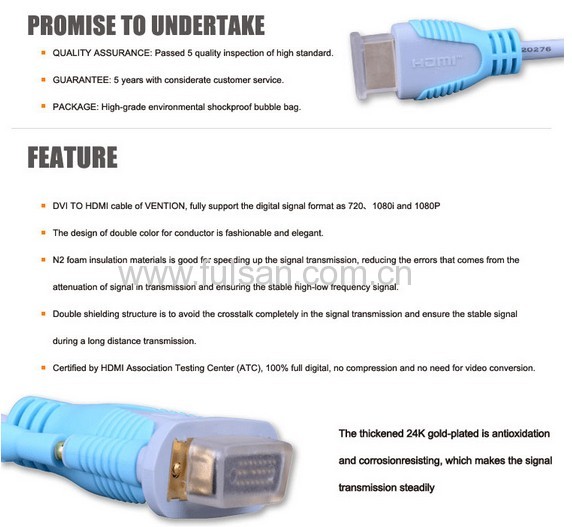

24k gold-plated connector resists corrosion and ensures an optimum connection for maximum signal transfer
High pure Oxygen Free Copper conductor for maximum conductivity and reliability
High density triple shielding for maximum rejection of EMI and RFI
100% Open&Short Test
Voltage: DC300V 5M ohm/10ms
Insulation Resistance: 10MΩ Min
Contact Resistance: 2 ohm max
Working Temperature: -25C-80C
| Brand | Fulsan |
| Model NO | P350DVIHD150 |
| Length | 1.5m |
| Other length | 2m/3m/5m |
| Color | Ice blue |
| Connector type | HDMI Male to DVI Male |
| Connector material | 24k gold plated |
| Conductor material | Tinned copper |
| Contact | Standard 19pin |
| Support | 3D Ethernet Audio Return |
| UL Standard | AWM STYLE 20276 |
| Flame Rating | VW-1 |
| Application | Applicable to connect the computers to the display device such as HD TV and projector. Connecting the display device directly for the digital output, Connecting the LCD liquid crystal display , TV of 1080P etc, including 1920 X1200 to achieve a perfect condition. |
| Warranty | 5 Years. |
