| Payment & Shipping Terms | Supply Capacity | ||
|---|---|---|---|
| Unit Price: | 0.9 USD | Production Capacity: | 10,000,000pcs/Month |
| Trade Term: | FOB,CFR,CIF,CIP | Packing: | Clamshell packing |
| Payment Terms: | L/C, T/T, WU | Delivery Date: | About 30 days |
| Min. Order: | 1 Piece/Pieces | ||
| Means of Transport: | Ocean, Air, Land | ||
Specifications

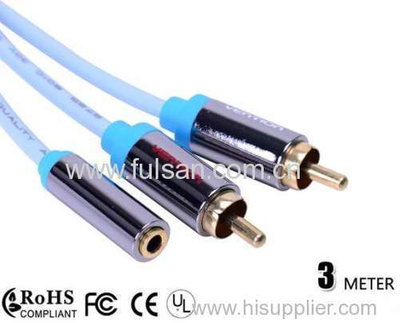

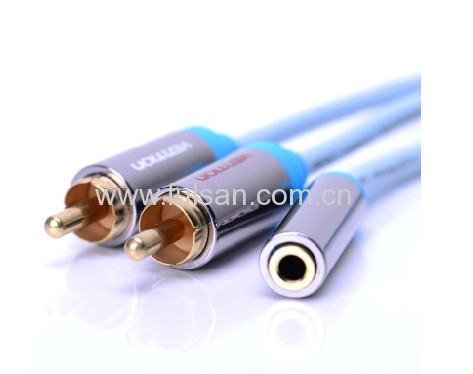

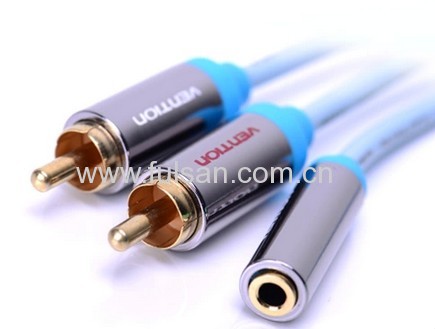

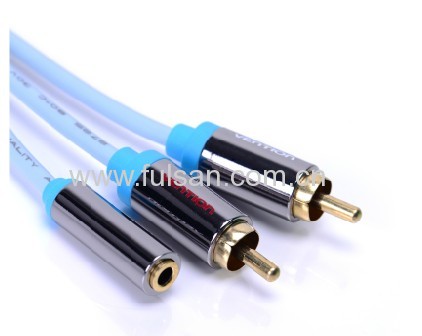

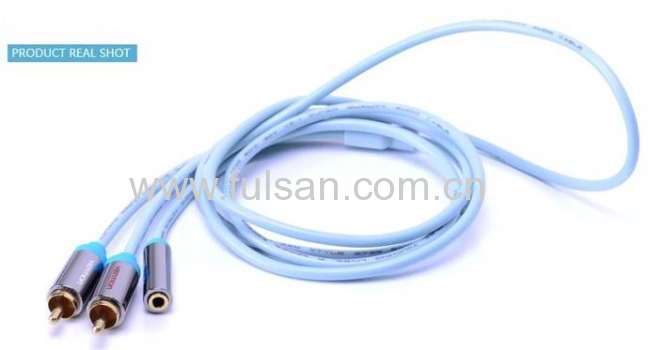

1.3.5mm stereo jack to 2RCA cable/ 3.5mm stereo audio cable, 3.5mm female to 2RCA male
2. Approval of UL, VDE, ROHS.
3.5mm stereo jack to 2RCA cable
Those are connected to CD player, Audio and Video player or computer system, etc. This cable set maximizes signal transfer for optimum sound.
Characteristics:
Conductor: Tin copper, 10+10/0.10mm or 10+20/0.10mm, 28AWG
Insulation: PVC
Color: Available
Thickness: 0.4mm, Diameter: 1.0± 0.1mm
Shield: Tin copper, 10/0.10mm or 20/0.10mm
Jacket: PVC, Non migration against ABS, Lead free
Length: Available
Electrical:
Testing: 100% open and short test
Contact Resistance: 30M Ohms Max
Voltage rating: AC/DV 125V
Current rating: AC/DV 1A
Withstanding Voltage: AC 250V/1 Min
Insulation resistance: 100M Ohms Min
Working Temperature: -25° ~+85°
1. RCA Composite Video + Audio Cable
2. Get composite RCA video and audio connectors all in one cable.
3. AVA gold-plated Composite RCA Video and Audio Cable is specifically designed to provide sharp and clear video and sound for your home theatre system.
4.99.99% Pure Oxygen-Free Copper Wire
5. Spiral-Wound Bare Copper Shield
6. Ultra Flexible Rubberized 6.0mm OD PVC Jacket
7. You can connect video equipment with composite and audio output jacks to televisions and projectors with composite video and audio input jacks.
8. The 24K Gold-Plated gold-plated heavy duty RCA male connectors on each end provide excellent strain relief to keep your cable intact.
9. An ultra flexible PVC jacket and color coded connectors help to simplify installation.
10. Heavy duty PVC jacket provides maximum protection to the cable while minimizing signal loses and statics
11. Unparalleled Quality and Top-Line Performance for Home Theater Audio Equipment
12. AV Cable Type: Audio/Video Cable
13. Connectivity: RCA (M x 3) to RCA (M x 3), 1RCA, 2RCA, 3RCA, 6RCA all are in our production line.
Usage: Audio & video signals
Certificate: UL, CE. RoHS
Export to: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, MID East, Eastern Asia, Western Europe
| Name | RCA DC cable |
| Core | CCS/ CCA/ 100% Oxygen Free Bare Copper Conductor |
| Connector | Gold-Plated or Nickle-Plated Connector |
| OD | 2.0mm --4.8mm |
| Insulation | PE,PVC material,ensure image quality,transmit image signal stably |
| Shield | Bare Copper Wire Aluminum-Mylar foil shield |
| Jacket | PVC jacket, can be used in high temperature |
| Application | Computer, Tv , DVD , Power Amplifier , MP3 , Cellphone , Voice Box |
| Color | Golden/Black/Red/Gray/Blue/Transparent/others |
| Length | 0.5m ,1m,1.5m,2m,2.5m,3m,5m,10m,etc.other lengths |
| Packing | Polybag , Blister Pack |
| Certificate | CE/UL/CSA/ROHS |
| OEM | Accepted |
Category: Audio and Video Cable
Related Category: DisplayPort Cable Computer Cable Speaker Cable Patch Cord Cable Lan Cable
