| Payment & Shipping Terms | Supply Capacity | ||
|---|---|---|---|
| Payment Terms: | L/C, T/T | Production Capacity: | 1000000/month |
| Min. Order: | 1000 pcs | Packing: | According to client's... |
| Means of Transport: | Ocean | Delivery Date: | 30days |

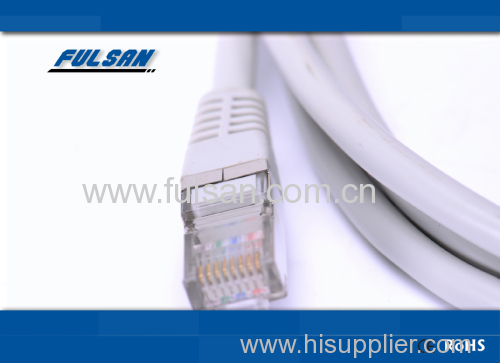

d-link lan cable cat6
Feature:
<1>Fast and Reliable Connection
<2>Twisted Pairs with Bright Color for Easy Recognition
<3>Ripcord and Footmark for Convenient Use
<4>Smooth Jacket for Easy Pulling in Tight Space
<5>Color in Light Grey, Dark Grey, Blue, White or as per Your Requirement
Structure:
Bare copper,PE insulation,FR PVC/LSOH PVC ROHS jacket
Standards:
ISO/IEC11801,ANSI/TIA/EIA-568B,
Application:
Used as work-station oution to the FD/IDF and other horizontal cabling,supporting TP-PMD Audio,integrated
service digital network(ISDN),ATM 155Mbps,1Gmbps TPDDI,Fast Ether-net ETC
CAT5e Electrical Charateristies
FREQUENCY | RL | SRL | ATTEN | NEXT | PSNEXT | ELFEXT | PSELFEXT | DELAY |
(MHZ) | (DB) | (DB) | (DB/100M) | (DB/100M) | (MHZ) | (DB/100M) | (DB/100M) | (NS/100M) |
0.772 | 16.7 | 25.2 | 2.0 | 68.9 | 67.5 | 68.0 | 69.2 | 570 |
1 | 18 | 28.0 | 2.0 | 66.2 | 64.9 | 65.4 | 65.4 | 560 |
4 | 19.8 | 28.0 | 4.0 | 57.9 | 57.2 | 53.7 | 548 | 554 |
8 | 20.8 | 27 | 5.2 | 56.2 | 55.0 | 49.0 | 50.3 | 545 |
10 | 22 | 25.0 | 6.2 | 51.9 | 48.3 | 44.7 | 44.7 | 544 |
16 | 22 | 26.0 | 7.9 | 49.5 | 46.3 | 42.5 | 42.5 | 542 |
20 | 22 | 26.2 | 8.6 | 47.2 | 44.5 | 40.2 | 39.8 | 540 |
25 | 20.2 | 26.5 | 9.7 | 45.9 | 42.9 | 37.3 | 37.3 | 539 |
31.3 | 19.6 | 25.8 | 16.5 | 41.2 | 38.2 | 30.9 | 30.9 | 536 |
62.5 | 18 | 25.7 | 21.2 | 38.4 | 34.8 | 25.6 | 25.6 | 535 |
100 | 17 | 22.4 | 18.7 | 32.8 | 28.6 | 22.6 | 23.7 | 533 |
Certificate:
UL,CE,CCC
Package( Cat5e utp ) :
305meters/roll
