| Payment & Shipping Terms | Supply Capacity | ||
|---|---|---|---|
| Payment Terms: | L/C, T/T, WU | Production Capacity: | 10,000,000pcs/Month |
| Min. Order: | 500 Piece/Pieces | Packing: | Clamshell packing |
| Means of Transport: | Ocean, Air, Land | Delivery Date: | About 30 days |
Product Description

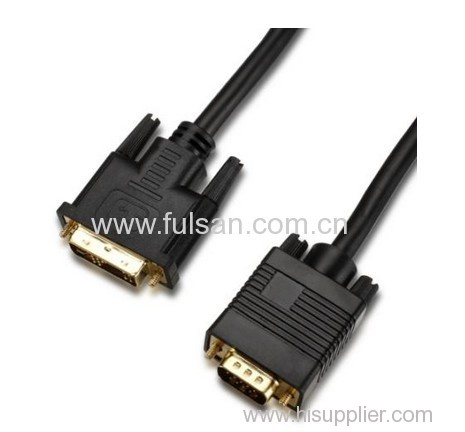

1. DVI cable 12+5 female to HDB 15p male
2. Optional gold and nickel plating.
3. Suitable for 28AWG and 30AWG wire gauge.
4. Applicable to analog signals compatible.
Features:
1. Compliant with DisplayPort Interoperability specification V1.1a 1 and 2 Lanes.
2 Content protection of HDCP 1.3 for Mini DVI to vga
3. PC: VGA, SVGA, XGA, SXGA, and UXGA.
4. HDTV: 480i, 576i, 480p, 576p, 1080i and 1080p.
5. Long product life: 10, 000 cycles of insertion and withdrawal.
6. Support video Bandwidth up to 10.8Gpbs.
7. Royalty-free, digital audio/video interconnect.
8. Two-way display connectivity, optional audio support, higher performance
9. Unique micro-packet architecture that enables new display features.
10. Support a minimum of 1080P resolution at 24bpp, 50/60Hz.
11. Support greater than QXGA (2048 x 1536) resolution at 24-bit color depths.
12. Support the 1Mbps bidirectional auxiliary channel.
13. Support 8-bit, 10-bit Deep Color.
Optimized Connectivity:
Ultra High Density, Triple Shielded, and high density Twisted Pair Cable is used for the most stabilized impedance and highest uncompressed digital video signal transfer available. It maintains high bandwidth and maximum data signal integrity. Made with lead-free& environmentally safe materials is for a better world.
| Conductors: | High purity Oxygen Free Copper |
| Insulation: | With nylon protection layer, ferrite cores optional |
| Contacts: | Gold Plated |
| Conductors: | BC<bare copper>, TC< Tin copper>, SC< Silver Copper> |
| Available lengths: | 1m to 5m(optional) |
| Available terminations: | HDMI,19PIN,Male to Male, up to 1080P |
| Available gauge: | 22/24/26/28/30AWG(optional) |
| Certification: | RoHS, FCC, CE |
ELECTRICAL:
| Quality Control: 100% Open & Short Test, passed four tests |
| Voltage: DC300V 5M ohm/10ms |
| Insulation Resistance: 10MΩ min |
| Contact Resistance: 2 ohm max |
| Working Temperature: -25C-80C |
