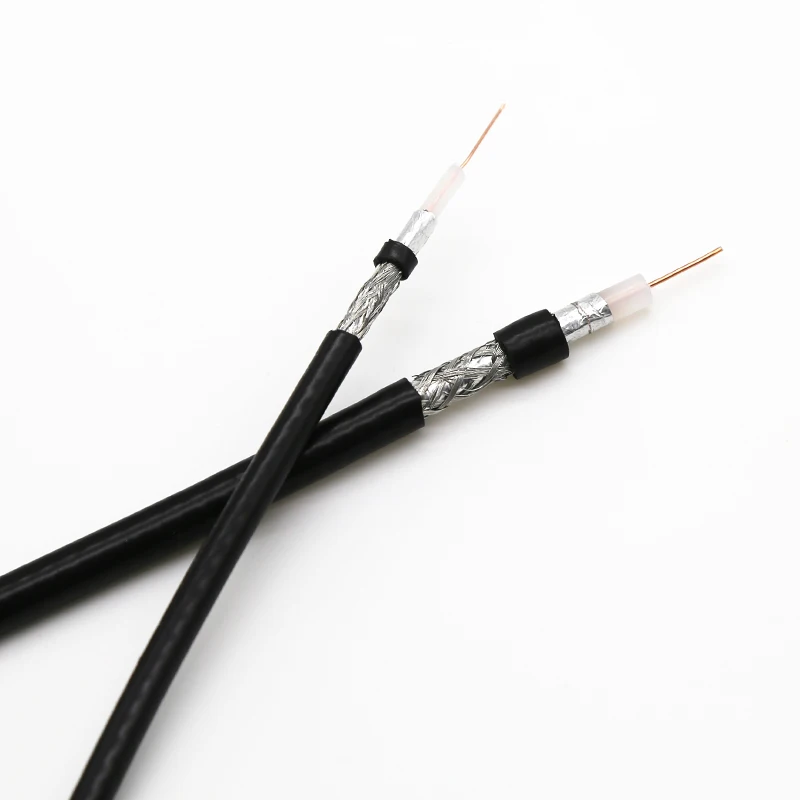

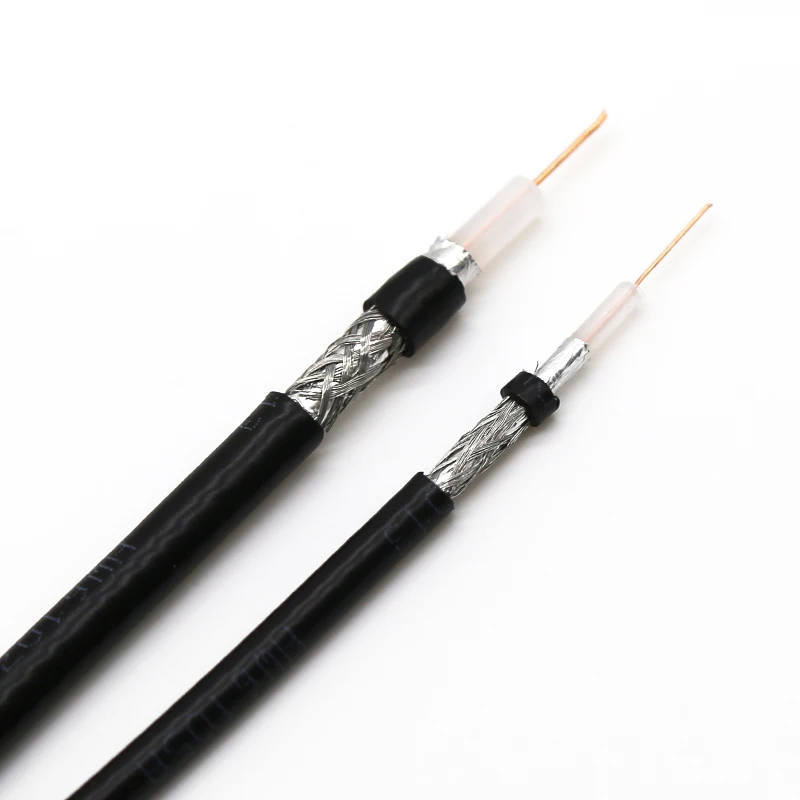

1000ft High Quality Siamese Rg59 Coaxial Cable 2DC for CCTV

1000ft High Quality Siamese Rg59 Coaxial Cable 2DC for CCTV

 Specifications:
1) 0.81mmBC(or CCS)+ 3.66mmFoamed PE + A/P(bonded)+60% AL Braiding +6.1mm PVC
2) Customers' specifications are welcomed.

Note:
1) Center conductor: Tinned Copper, Bare Copper, and Copper Clad Steel available;
2) Al-foil: Non-bonded Al-foil, bonded Al-foil, double bonded Al-foil,
And double non-bonded Al-foil are available;
3) Braiding wire: AL, Bare Copper and Tinned Copper available;
4) Braiding wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15, 0.16mm available;
5) Braiding net: 32, 48, 64, 72, 80, 96, 120, 128, 144 and more available;
6) Braiding coverage: Between 30-- 97% available;
7) PVC jacket of Flame retardant, UV, or UL available.

Characteristics:
Impedance: 75+/-3 Ohm
Velocity of Propagation: 85%
Capacitance: 52 pF/m
Return Loss: 20dB min
Attenuation:
[@68 F. (20 C) ] dB/100meters
5MHz: 2.81dB 500MHz: 18.6dB
55MHz: 6.72dB 550MHz: 19.48dB
187MHz: 11.80dB 600MHz: 20.31dB
250MHz: 13.43dB 750MHz: 22.84dB
350MHz: 15.72dB 865MHZ: 24.65dB
400MHz: 16.71dB 1000MHZ: 26.61dB

Packing:
1) Packing Lengths:
100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll
Other lengths available according to client's request;
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request.

Product Origin: China
Brand Name: Fulsan or OEM
Productivity: 20, 000, 000Km/Month
Price Terms: FOB
Payment Terms: T/T
Shipping date: Generally within 15days
Certificates: ISO9001, CE, UL, CUL, RoHS.
