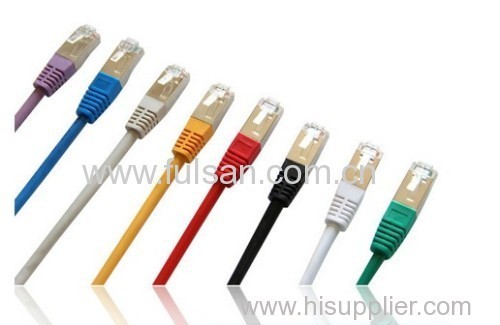

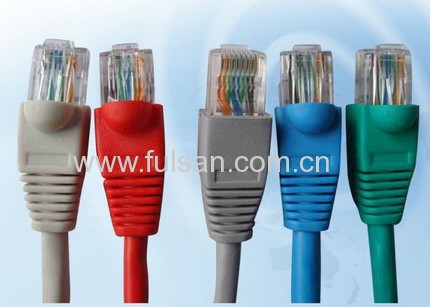

100Mbps/1000Mbps High Speed AMP Cat6 Patch Cord

Quantity:
Payment & Shipping Terms Supply Capacity
Unit Price: 0.6 USD Production Capacity: 10,000,000pcs / month
Trade Term: FOB Packing: Blister or Polybag or...
Payment Terms: L/C, T/T, WU Delivery Date: About 30 days
Min. Order: 500 Piece/Pieces
Means of Transport: Ocean, Air, Land

0.57mm 23 AWG, High Speed SSTP cat6 Patch Cord Cable with UL complaince
1x 4 PAIRES SOLID COPPER (100% COPPER) AWG23 100 OHMS LSZH
Yellow LSZH JACKET
Each pair must be Aluminum foiled separately
Overall shielding with Aluminum foil, tinned copper drain wire
500M/WOOD DRUM
WOODEN PALLET PACKAGE
OEM order is welcome

· Includes:
BC conductor
F-PE insulation
Twisted pair screen
Drain wire
Overall screen
Rip cord
PVC sheath

· Conductor:
Material: Solid bare copper
Number of pairs: 4 pairs
AWG: 24
Conductor diameter: 0.575 ± 0.003mm

· Insulation:
Material: F-PE
Diameter: 1.35 ± 0.005mm
Average thickness: 0.3875mm
Minimum point thickness: 0.3870mm
Twisted pair screen: AL foil (25%)
Drain wire: Ø 0.4mm TC
Overall screen: AL foil (25%)
Jacket rid cord: Optional

· Sheath:
Material: PVC or LSOH
Nominal diameter: 8.5 ± 0.2mm
Average thickness: 0.65mm
Minimum point thickness: 0.645mm
Operating temperature: -20 to 75° C
Minimum bend radius (install): (OD) 8mm
Flame test: CMX, CM, CMR and IEC60332-1

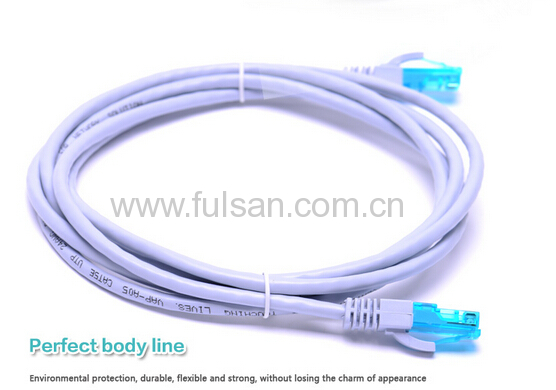

Product: Patch cord
Category: Cat 5e, Cat6, Cat 6a, Cat7
Shirleding: UTP, FTP, SFTP, SSTP
Connector RJ 45 connector
Conductor Bare copper, CCA ( copper clad alunimum) or CCS ( copper clad steel)
Guage 22AWG, 24AWG, 26AWG, 28AWG, 30AWG
Insulation HDPE
Shirleding Aluminum foil and Braiding
Jacket PVC, LSZH.

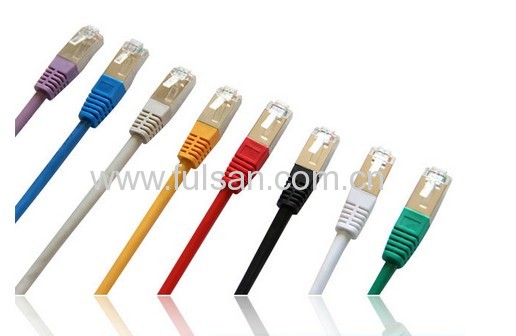

Color Black, white, grey, blue, red, orange ,yellow, purple,green ,transparent ^
OD 5.0mm, 5.2mm, 5.4mm, 5.7mm ...
Length 0.25m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 10m, 15m, 20m, 30m, 50m, 80m,100m,etc
Compliance ATC, UL, ETL, CE, RoHS, REACH

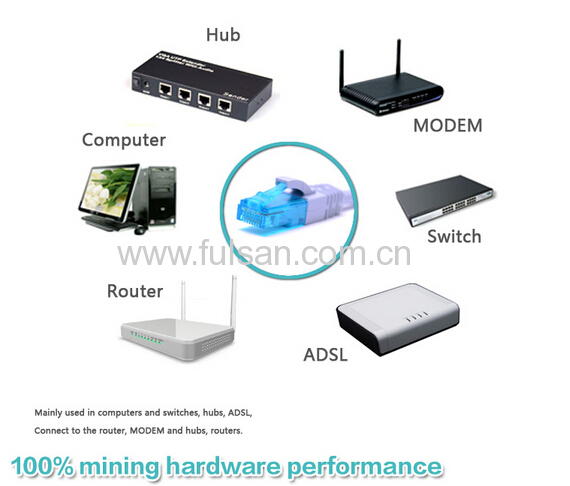

Application 1.PC with Switch, Hub, ADSL, Router, Wall Socket, Network Module Plate,etc.
2.Connect 2 XBOX consoles for multi player gaming
3.ADSL, Modem with Hub or Router
Compatibility 100 Base-T4
100 Base-TX
100VG-AnyLAN
1000 Base-T(Gigabit Ethernet)
155 Mbps ATM
622 Mbps ATM
Package Polybag,Zip bag,OPP bag, bag with paper card, gift box, blister or Customized
ELECTRONICS
QC 100% open and short test
Voltage DC300V 5M ohm/10ms
Insulation Resistance 10M ohm min
Contact Resistance 3 max
Working Temperature -25C-80C





Category: Patch Cord Cable
