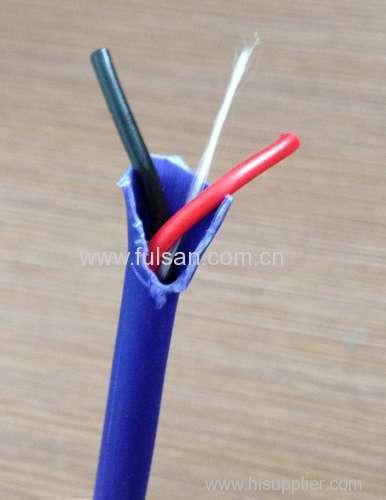

16AWG Professional Installation Speaker Cable with LSZH Jacket

Quantity:
Payment & Shipping Terms Supply Capacity
Unit Price: 0.2 USD Production Capacity: 10,000,000m/month
Trade Term: FOB,CFR,CIF,CIP Packing: Plastic Reel or...
Payment Terms: L/C, T/T, WU Delivery Date: About 30 days
Min. Order: 5000 Meter
Means of Transport: Ocean, Air, Land

Type: Shielded Speaker Cable LSOH Jacket
Conductor Material: 100% Oxygen-Free Bare Copper
Cable Structure: 65 Stranded Wires, Individual Size of 0.254mm
Jacket Material: PVC
Rip cord: Nylon Thread
Cable Gauge: 12 AWG
Outer Diameter: 7.8mm
Conductor resistance (20°C) Max: 5.43Ω/KM
Insulation resistance (20°C) Min: 0.75Ω/KM
Spark Test: 3.0KV/ Sec NOBREAKING
Cable Rating: CM, UL, & CL2 Rated

APPLICATION
Used in AUDIO & VIDEO series, worked as the connective cable in AUDIO & VIDEO
They are of good electric capability. Also, the efficiency either of high frequency or low frequency is good too. Its attenuation is low while its prevention is high.

FEATURE

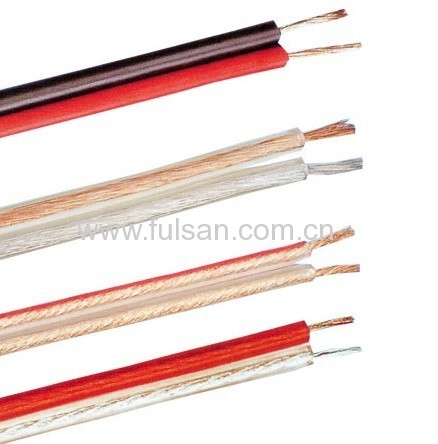

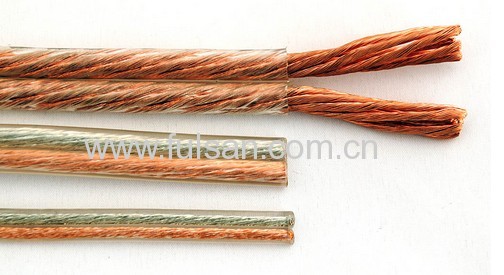

The products can be devided in three kinds: The colored AUDIO & VIDEO cable, the perspective AUDIO & VIDEO cable and the perspective gold and silver AUDIO & VIDEO cable.
The coiored AUDIO & VIDEO cable and the perspective AUDIO & VIDEO cable can choose the multi-phase tag according to the requst to sign the polarity. The polarity line should be blus or red.


THE STRUCTURE LIST OF COLORED AUDIO & VIDEO CABLE
SERIAL No. DESCRIPTION AREA (m m2) SPECIFICATION   OUTER Φ mm WEIGHT (Kg/Km)
V-001 0.24 2*30/0.10 1.6*3.3 9
V-002 0.4 2*50/0.10 1.8*3.6 13
V-003 0.5 2*64/0.10 1.9*3.8 15
V-004 0.6 2*80/0.10 2.1*4.3 19
V-005 0.75 2*96/0.10 2.2*4.5 22
V-006 0.8 2*100/0.10 2.3*4.5 22
V-007 1 2*7*18/0.10 2.6*5.1 28
V-008 1.5 2*7*27/0.10 2.9*5.8 38
V-009 2 2*7*36/0.10 3.3*6.5 50
V-010 2.5 2*7*46/0.10 3.5*7.1 61
V-011 4 2*7*72/0.10 4.1*8.3 90
V-012 6 2*7*110/0.10 5.0*10.1 135
V-013 0.4 2*13/0.20 1.9*3.8 14
V-014 0.5 2*16/0.20 2.0*4.0 16
V-015 0.6 2*19/0.20 2.1*4.2 18
V-016 0.75 2*24/0.20 2.2*4.5 22
V-017 0.8 2*26/0.20 2.3*4.5 23
V-018 1 2*32/0.20 2.4*4.8 27
V-019 2 2*48/0.20 2.7*5.4 38
V-020 2 2*64/0.20 2.9*5.9 48
V-021 3 2*7*11/0.20 3.5*6.9 59
V-022 4 2*7*18/0.20 4.1*8.2 90
V-023 6 2*7*27/0.20 5.0*10.0 133
THE STRUCTURE LIST OF COLORED AUDIO & VIDEO CABLE
SERIAL No. DESCRIPTION AREA(m m2) SPECIFICATION   OUTER Φ mm WEIGHT (Kg/Km)
V-024 20 2*41/0.12 1.9*3.9 16
V-025 18 2*65/0.12 2.3*4.6 23
V-026 16 2*7*15/0.12 2.8*5.6 15
V-027 14 2*7*23/0.12 3.3*6.6 20
V-028 12 2*7*37/0.12 3.9*7.7 26
V-029 10 2*7*59/0.12 4.8*9.5 39
V-030 8 2*7*95/0.12 5.7*11.4 182

Category: Speaker Cable
