FS-P013
Description:
Patch cords are designed for end-to-end connections in equipment
rooms or horizontal subsystems
They are fully complaint to ISO/IEC
11801 and T-568A Cat6a standards and meet T568A/B wiring
configuration
Patch cords provide more flexibility for quick connection between patch panels
Various lengths, wiring means and colors are available for your choice
Electrical Characteristics:
Contact-resistance: <3mΩ
Insulation-resistance: >1000mΩ
Dielectric intensity: DC 1000V(AC 700V ), no spark over and fly arc in 1 minute
Mechanical Characteristics:
Insertion times: >750 times

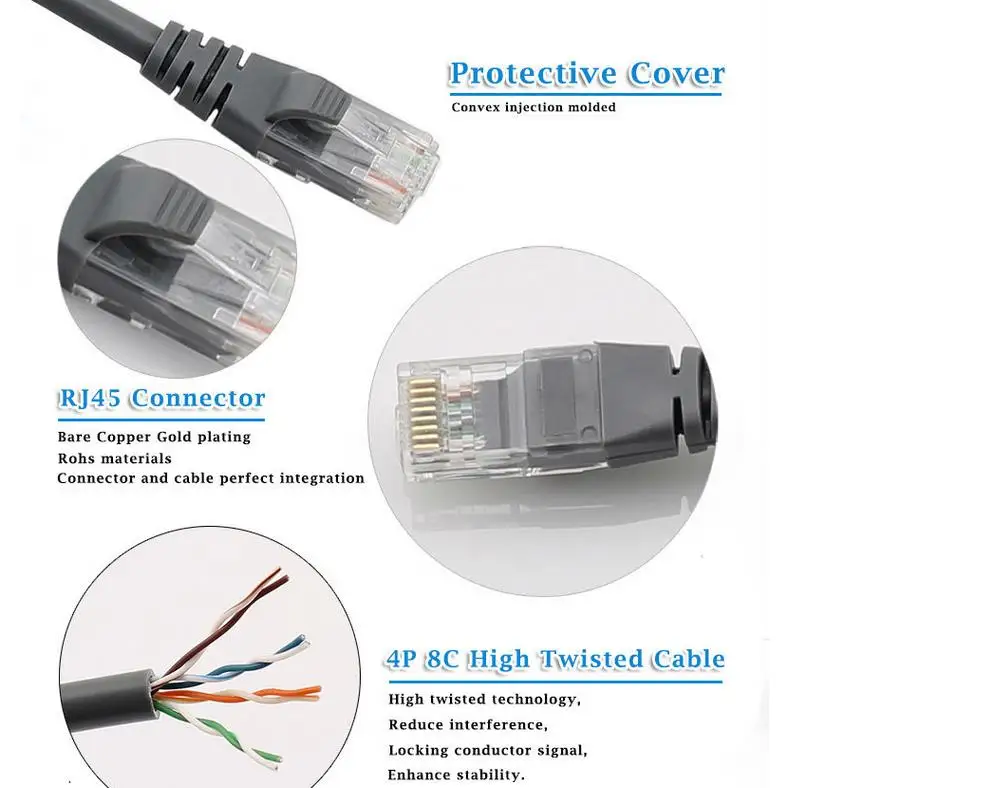

Materials:
Plug housing: PC
Gold pin: phosphor bronze with gold-plating
Shielding shell: phosphor bronze with nickel-plating
Wiring criteria | |
T568A | T568B |
1.White/green | 1.White/orange |
2.Green | 2.Orange |
3.White/orange | 3.White/green |
4.Blue | 4.Blue |
5.White/blue | 5.White/blue |
6.Orange | 6.Green |
7.White/brown | 7.White/brown |
8.Brown | 8.Brown |

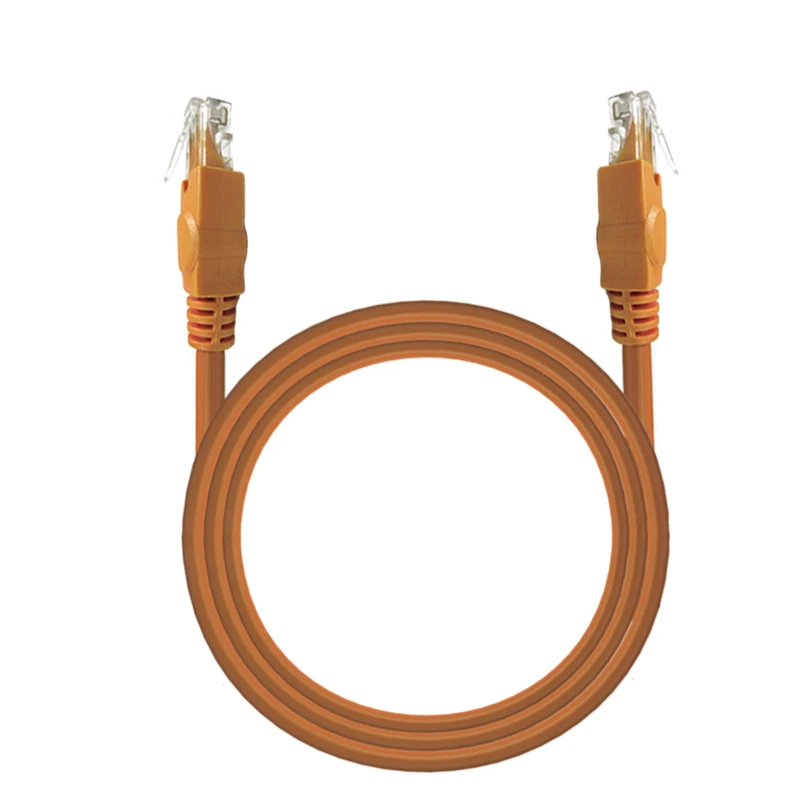

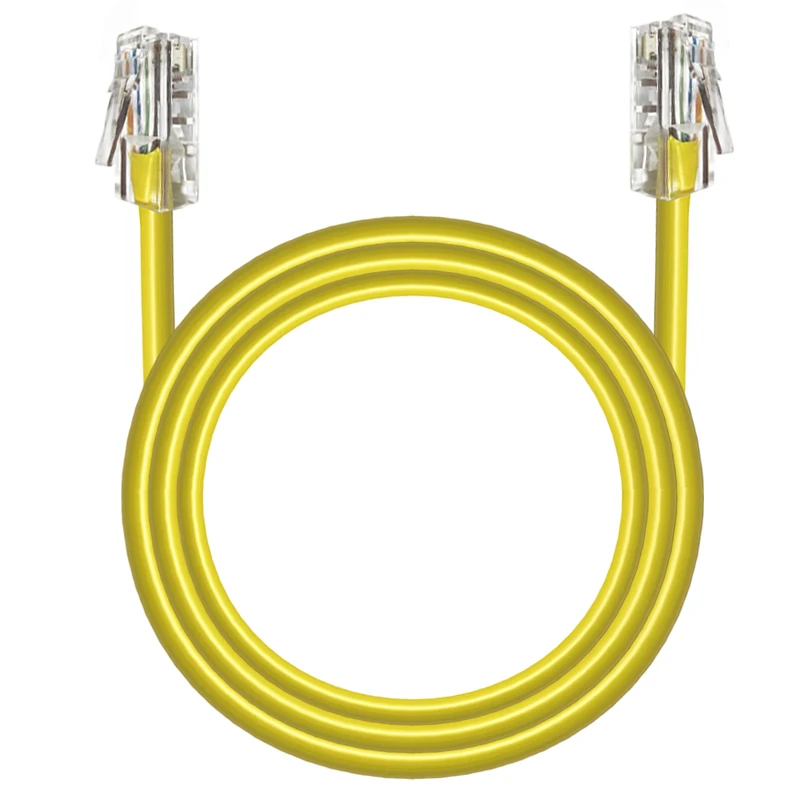

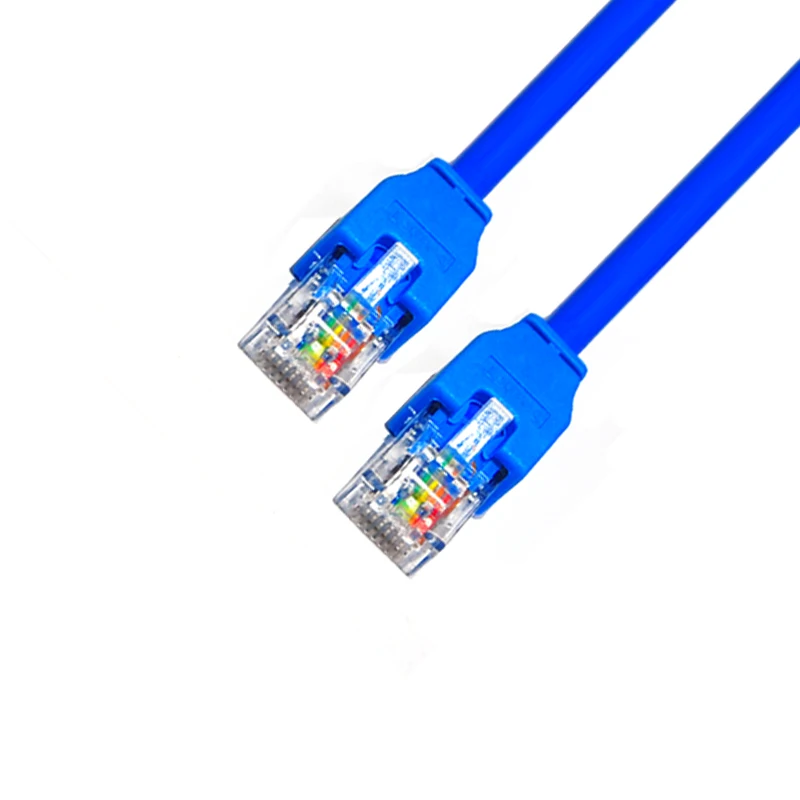

| Name | Cat 5e patch cord networking cable |
| Model | UTP Cat 5e Patch Cord |
| conductor material | BC/CCS/CCA/CCC/ETC |
| outer Jacket | PVC |
| inner insulation material | PE |
| Color | colorful |
| Shielding | NON |
| length | Customized |
| Number of Twisted Pair | 4 |
| MOQ | 200 |
| ROHS | yes |
| OEM/ODM | Welcome |
| samples | Yes |
Packaging terms: PE bag ,carton box
Shipping terms: we usually USE DHL,FEDEX,UPS,TNT,EMS for shipping
Lead time :10-15 working days depend on the quantity
