2014 HOT Sell 75ohm Coaxial Cable Rg11 With Messenger

Quantity:
Payment & Shipping Terms Supply Capacity
Unit Price: 0.1 USD Production Capacity: 1000000drum/month
Trade Term: FOB,CFR,CIF,CIP Packing: According to client's...
Payment Terms: L/C, T/T, WU Delivery Date: 30 days
Min. Order: 5000 Meter
Means of Transport: Ocean, Air, Land

Specifications

1. Good quality
2. ETL, ROHS, CE, ISO approved
3. Competitive Price
4. Quick delivery
5. OEM

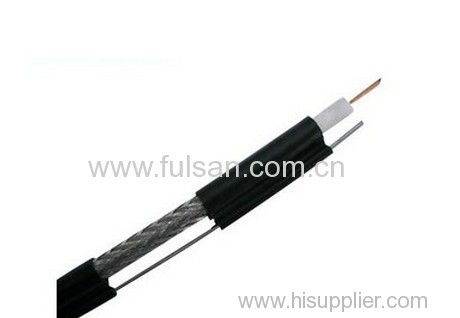

RG11 with Messenger



1. Specification

1) Construction

Center Conductor:

1.63+0.01mm Solid Copper/Copper Clad Steel

Dielectric:

7.11+0.05mm Foam PE

Shield:

Al Foil/Bonded Al Foil

Braid Coverage:

96*0.16mm AL braiding

Jacket:

10.10+0.05mm PVC

Messenger

1.63mm Steel

2) Characteristics

Sparker Test:

4000VAC

Impedance:

75+3 Ohm

Capacitance:

53+3pF/m

Velocity of Propagation:

83%

Return Loss:

20dB min (5-2300MHz)

3)Attenuation

Attenuation

[@68o F. (20o C.)]

Frequency (MHz)

Maximum (dB/100 ft.)

Maximum (dB/100 m)

10

0.45

1.5

50

0.89

2.9

100

1.21

4.0

200

1.68

5.5

400

2.37

7.8

700

3.27

10.7

900

3.77

12.4

1000

3.95

13.0

1200

4.46

14.6

1450

5.08

16.7

1800

5.58

18.3

2200

6.29

20.6

3000

7.58

24.9

Electrical Characteristics :

1) Characteristics Impedance: 75+/- 3 Ohms

2) Capacitance Conductor to Shield: 53.1 pF/m

3) Velocity of Propagation :82%

4) Delay:4.065 ns/m

5) Min.Structural Return Loss (5-3000MHz) :  20 dB

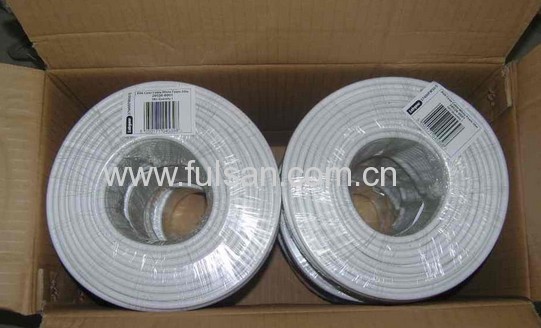

1) Packing Lengths:100/roll,200m/roll,300m/roll,305m/roll, 500m woden reel, 1000m wooden reel

2) Inner Packing:Wooden reel,plastic reel,and paper reel

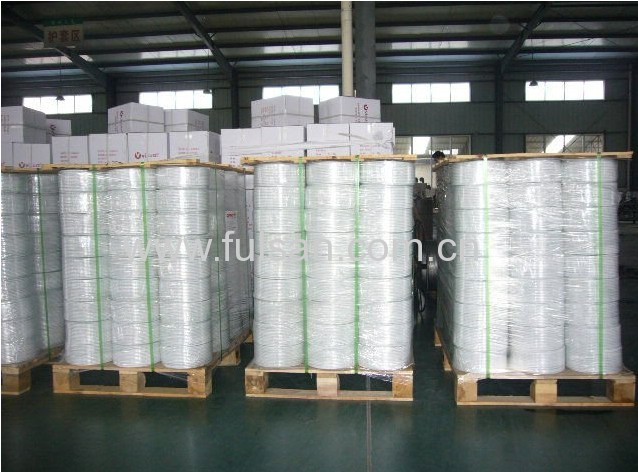

3) Outer Packing:Carton box,pull out box,pallet available

4) Other packing available according to clients' request



Category: Coaxial Cable
