| Payment & Shipping Terms | Supply Capacity | ||
|---|---|---|---|
| Trade Term: | FOB | Production Capacity: | 1000000drum/month |
| Payment Terms: | L/C, T/T, WU | Packing: | According to client's... |
| Min. Order: | 5000 Meter | Delivery Date: | 30 days |
| Means of Transport: | Ocean, Air, Land | ||
Specifications
1)Optimal Structural Return Loss
2)Remarkable Impedance Stability
3)Less Attenuation

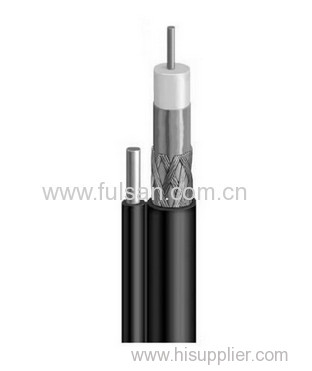

Coaxial Cable RG6 with messenger
1)Inner conductor: BC or CCS OD:1.02mm
2)Dielectric: Foamed PE Diameter:4.57mm
3)Foil:Boned Al+Pol, Al+Pol+Al, Al+Pol
4)Braids wire: AL-MG Alloy, Tinned copper, bare copper
Braids wire diameter:0.12mm, 0.15mm, 0.16mm
Braids wire net number:48,64,80,96,112,120,144 and up.
Braids coverage:40%,50%,60%,70%,80%,90%,95% and up.
5)Jacket: Vergin PVC .
UL Listed UL-CMX+UV Inhibitor
OD: Standerd Shield:6.9mm,
6)Messenger:1.30mm Steel Messenger
Diameter:17AWG

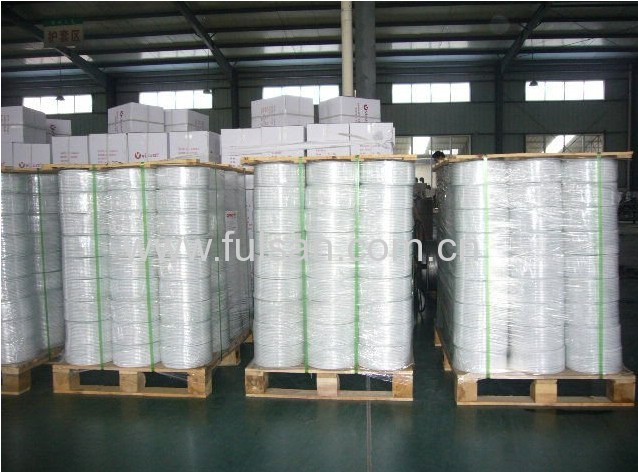

7)Package:(1)305m wood drum, 2 drums in 1 carton

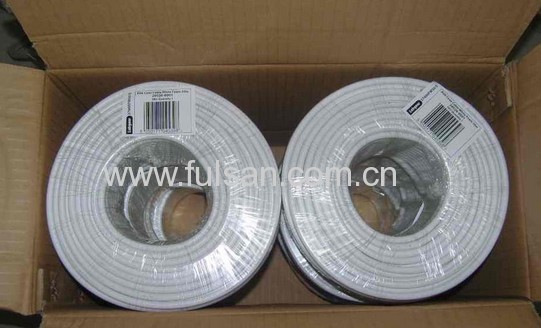

(2)100m roll ,6 rolls in 1 carton
(3)100m cardboard or plastic drum, 6 rolls in 1 carton
8)Electric performance:
(1)Wave velocity rate:85%
(2)Capacitance(pF/m):52±2.0
(3)Impedance(Ω):75±3.0
(4)Return loss:VHF 5-300MHz≥20dB
UHF 300-960MHz≥18dB
(5)attenuation
Attenuation | |
Frequence(MHZ) | Max value(dB/100m) |
5 | 1.80 |
50 | 4.70 |
55 | 4.95 |
200 | 9.50 |
211 | 9.70 |
300 | 11.00 |
400 | 12.80 |
450 | 13.40 |
500 | 14.62 |
550 | 14.80 |
600 | 15.65 |
750 | 17.20 |
800 | 18.90 |
860 | 20.30 |
1000 | 21.80 |
1350 | 25.40 |
1750 | 29.00 |
2150 | 32.80 |
2200 | 33.00 |
3000 | 39.00 |
Coax Cable RG6 with messenger Application
These cables are used as a distribution cable for indoor CATV (Community Antenna
Television),MATV (Master Antenna Television),Digital Video and as a connection cable for
satellite systems where lower attenuation required.
