COA-009
Product standard:
The production standard for anti-flaming and fire-resistant cables is GB/T19666-2005,GB/T5023-2008,JB/T8734-2012
Main of cables features
1. Uo/U is 450/750V,300/500,
2. Long-term allowable temperature of the cable:The allowable temperature of 105 Cable should not exceed 105℃;the allowable temperature of other models should not exceed 70℃.
Application: Applicable to the cables and wires of rated yolatage 450/750V and less than 450/750V AC for power plant,household electrical applance,insurment and telecommunication equipment.

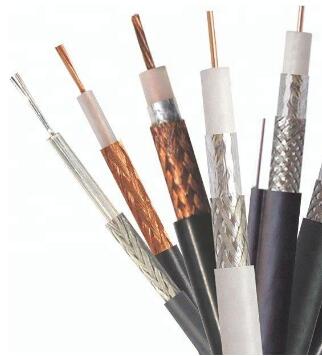

Construction | |||||
Item | RG58 | RG59 | RG6 | RG7 | RG11 |
Inner Conductor(mm) | 0.5 | 0.81 | 1.02 | 1.29 | 1.63 |
Dielectric(mm) | 2.9 | 3.66 | 4.57 | 5.72 | 7.11 |
Shield(mm) | 3.15 | 3.84 | 5.4 | 5.9 | 7.29 |
Jacket(mm) Standard-shield | 5.1 | 6.1 | 6.9 | 8.1 | 10.16 |
Jacket(mm) Tri-shield | 5.2 | 6.2 | 7.06 | 8.2 | 10.16 |
Jacket(mm) Quad-shield | 5.74 | 6.73 | 7.54 | 8.64 | 10.34 |
Electrical Characteristics | |||||
Impedance(Ω) | 75 | 75 | 75 | 75 | 75 |
Capacitance(pF/m) | 55 | 55 | 54 | 52 | 51 |
Velocity of Propagation(%) | 84 | 84 | 84 | 85 | 86 |
