21pin scart cable to hdmi

21pin scart cable to hdmi

1) Housing: PVC, LCP

2) Terminal: Phosphor Bronze or gold plated

3) Signal Wire: UL2725 26/28 AWG, Copper,Tinned Copper

Features:
1.Provides maximum isolation from electromagnetic and radio frequency interference with double-shielded construction
2.Improves clarity with superior-grade, 99.99%-purity copper clad steel conductors
3.Strengthens signal transfer using precision-formulated, polyethylene material
4.Creates precise contact and increased durability with corrosion-resistant,nickel plated connectors
5.Isolates noise with 100%-coverage aluminum/Mylar foil shield
6.Creates an additional layer of protection with copper clad steel-braided or spiral shielding

Electrical

1) Hi-Pot Test: DC300V

2) Insulation Resistance: 10M Ohms (min)

3) Contactor Resistance: 1 Ohm (Max)

4) 100% Open Short and Miss Wire Test

Mechanic:

1) Insertion Force: 45N Max

2) Withdrawal Force: 15N Min

3) Operating Temperature:-25 to +85 degree Celsius

4) Transfer Rate: Supports 3.0Gbps

Packaging:

1). Poly bag with sticker;

2). Customized Gift box;

3). Blister, bubble or slide blister available, carton.

4)optional

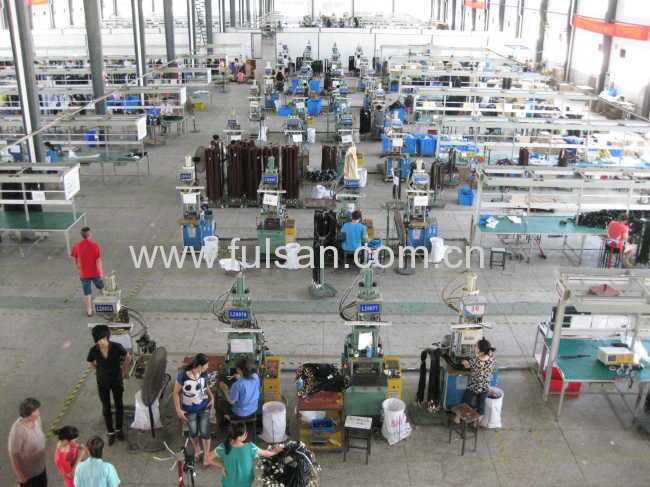

Factory
