Patch lead (FS-patch cord 008)
Fulsan
854442
1m, 2m, 3m, 5m, 10m, 12m, 15m, 20m

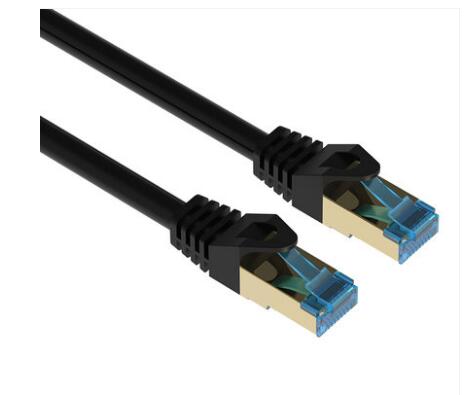

24AWG 8P8c 4 Pairs Bare Copper Rg45 FTP UTP Ethernet Lan Cable RJ45 Patch Cord Cat5 CAT5E CAT6 CAT7 LAN CABLE

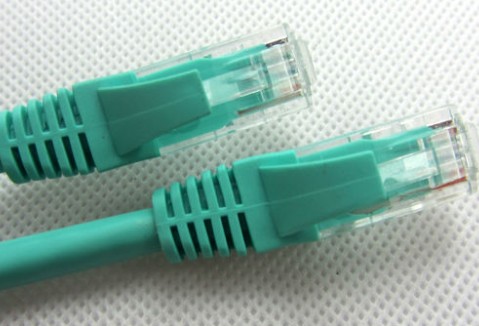

High Speed Ethernet Cable RJ45 FTP Cat5e Patch Cord
Specifications
1. Conductor: 7*32AWG(7/0.2MM)stranded coppers
2. Insulation: PE
3. Boot: PVC
4. Plug: Shield RJ45 plug
5. Jacket: PVC
| Category | Cat5, Cat6, Cat6a, Cat7, Cat8 | Cable Length | Customized |
| Cable Jacket | PVC, LSZH | Shielding Type | UTP,FTP,SFTP,SSTP |
| Cable Color | Customized | Connecting Way | T568A,T568B,Crossover |
| Interface Type | RJ45, RJ11 | Operating Temperature | -20°C to 60°C |
| Cable AWG | 24AWG/26AWG/28AWG/30AWG/ 32AWG/34AWG/36AWG/38AWG | Installation Temperature | -30 C to 50°C |
RJ45 FTP Cat5e Patch Cord
Specification about the product
A: Description
1. Conductor material: Bare Copper/CCA/CCS
2. Conductor AWG: 7*0.2mm(or others)
3. Insulation: HDPE
4. Color code;
Pair1: Orange/White Orange
Pair2: Blue/ White Blue
Pair3: Green/ White Green
Pair4: Brown/White Brown
5. Jacket: PVC/LSZH(5.5mm)
6. Boot: PVC
7. Plug: Shield RJ45 plug
8. Plug gold plating: 50u
9. Color: Optional(White, red, blue, black, yellow...)
10. Length: Optional(0.5m, 1m, 2m, 3m...)
11. Certification: CE, RoHS Compliant
12. Pass Fluke test
13. Standards: ETL 444/CSA-C22.2 No. 214, Type CM/TIA/EIA-568A, Patch Cable
14. Application:
100 Base-T4
100 Base-TX
100VG-AnyLAN
1000 Base-T(Gigabit Ethernet)
155 Mbps ATM
622 Mbps ATM
Key Specifications/Special Features:
Specifications:
RJ45 8P8C male to male patch cord
Industrial standards: YD/T1019-2001, (USA) ANSI/TIA/EIA-568-B, (Worldwide) ISO/IEC 11801/71156
Conductor: Solid and stranded oxygen-free copper wire
Jacket: PVC, LSZH, HDPE, rip wire
Molded type plug: Cat6 8P8C RJ-45 short long plug with injection molding circle caps (or injection molding strain relief caps)
Uses 24AWG (UTP), stranded bare copper, four pairs
Colors: Black, gray, red, white, blue, yellow, green, orange, purple and pink or can be customized
Length: 1, 2, 3, 4, 5, 8, 10, 15m or can be customized
Rating temperature: 75° C
Meets Cat6 specifications or on customized requested
Testing: 100% continuity test and AQL 15% attenuation, next, return loss, impedance test
Designed for network adapters, hubs, switches, DSL/cable, modems, patch panels, and other twisted-pair applications
Applications:
PC to hub
PC to PC
Hub to hub
Category:
Cat5: 100MHz transmission frequency with high-density and high-quality insulation jacket
Cat5e: Used for Ethernet 1, 000Mbps, less attenuation and ANEXT, higher ratio of ACR and Structural
Cat6: Most suitable for transmission rate higher than 1Gbps application, improve the performance of ANEXT, can provide twofold in broadband Cat5e
Cat6a: Performance higher than Cat6, final index reached 300MHz bandwidth
UTP: Small diameter save space, lightweight, flexible, easy cabling, low-price
FTP/STP: Reduce or eliminate ANEXT, independence, flexible and more strong flame retardant
| Cable | Cat.5e UTP or FTP cable |
| Jacket | PVC/LSZH jacket |
| Wire | 4*2*AWG24/26, Twisted Pair |
| Plug | RJ45 Gold plating from FU" to 50U" |
| Transmission | It supports data transmission to 100MHz |
| Cable | Cat.6 UTP or FTP cable, with Cross inside |
| Jacket | PVC/LSZH jacket |
| Wire | 4*2*AWG24/26, Twisted Pair |
| Plug | RJ45 Gold plating from FU" to 50U" |
| Transmission | It supports data transmission to 250MHz |
| Cable | Cat.6A SSTP(PiMF) cable |
| Jacket | PVC/LSZH jacket |
| Wire | 4*2*AWG26, Twisted Pair |
| Plug | RJ45 50U" Gold plating |
| Transmission | It supports data transmission to 500MHz |
