24AWG UTP cat5e Lan Cable

Quantity:
Payment & Shipping Terms Supply Capacity
Unit Price: 24.0 USD Production Capacity: 10,000,000rolls/month
Trade Term: FOB,CFR,CIF,CIP,FCA,EXW Packing: Easy Pull Box or Drum
Payment Terms: L/C, T/T, WU Delivery Date: About 30 days
Min. Order: 50 Pack/Packs
Means of Transport: Ocean, Air, Land

Description

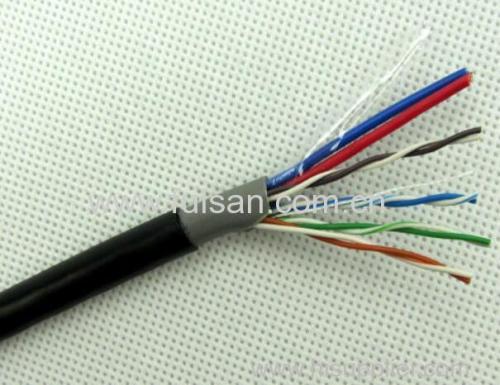

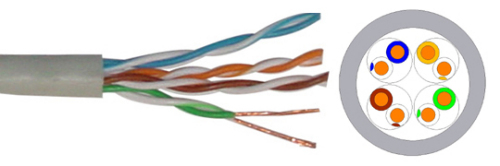

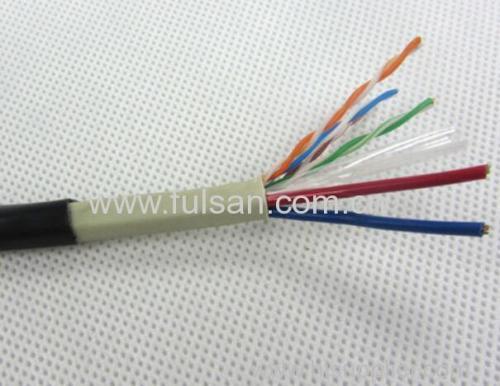

Cable type and number of pairs: cable UTP (unshielded twisted pair -- unshielded twisted pair) to the internal pads, 4 pairs (solid),
Category 5e.

Specifications
• Conductor: bare copper wire O0.51 ± 0.01 mm, 24 AWG
• Insulation: High density polyethylene, minimum thickness of 0.18 mm
• Conductor diameter 0.9 ± 0.02 mm
• 4 twisted pairs are covered with PVC jacket (minimum thickness of the shell 0.4 mm)
• The external cable diameter of 5.1 ± 0.2 mm
• bending radius: 8xO during installation, 6xO with vertical
Cabling, 4xO the horizontal cabling

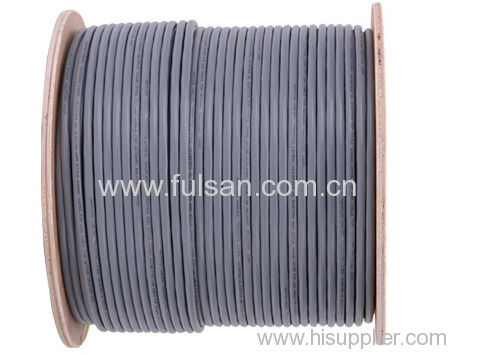

• Standard packing: 18.5 x 37.5 x 36.5 cm (W x H x D) - 305 m
• Weight without cable, weight: 9.7 kg
• Cable Weight with packaging: 10.5 kg
• Weight 1 km of cable: 31.8 kg
• Operating temperature: -20 ° C - +75 ° C
• Fire: CM
• Standards: UL444/UL1581, TIA / EIA 568B.2

Conductor resistance at 20 ° C 9.38 Om/100 m
DC Resistance Unbalance 5%
Capacitive unbalance pair to ground 330 pF/100m

Impedance 0.772-100 MHz 85-115 Ohm

Maximum working capacity of 5.6 nF / m


2.CHARACTERISTICS:

Frequency MHz Impedance ohm RL Attenuation dB/100m Next    Db/100m ELFEXT  dB/100m PS NEXT Db/100m PS FLFEXT  Db/100M Propagation speed  m/s
db
1 100±15 20 2 65.3 63.8 62.3 60.8 0.65C
4 23 4.1 56.3 51.7 53.3 48.7
8 25 5.8 51.8 45.7 48.8 42.7
10 25 6.5 50.3 43.8 47.3 40.8
16 25 8.2 47.3 39.7 44.2 36.7
20 25 9.3 48.5 37.7 42.8 34.7
25 24 10.4 44.3 35.8 41.3 32.8
31.25 24 11.6 42.9 33.9 39.9 30.9
62.5 22 17 38.4 27.8 35.4 24.8
100 20 22 35.3 23.8 32.3 20.8
155 10±18 19 28.1 33 20 29 17
200 19 32.4 31 18 28 15
310 100±22 18 41.8 28 14 25 11
350 17 44.9 27 13 24 10
