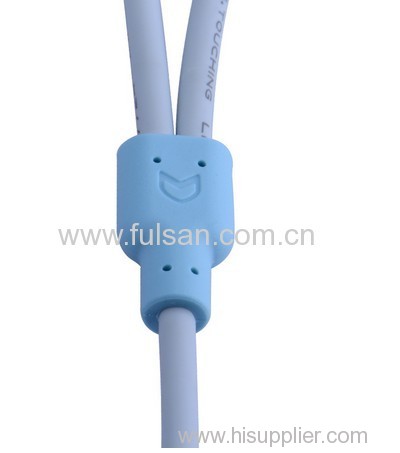

2m 3.5mm to 2RCA Audio and Video cable

Quantity:
Payment & Shipping Terms Supply Capacity
Unit Price: 0.9~6.54 USD Production Capacity: 10,000,000pcs/Month
Trade Term: FOB Packing: Clamshell packing
Payment Terms: L/C, T/T, WU Delivery Date: About 30 days
Min. Order: 1 Piece/Pieces
Means of Transport: Ocean, Air, Land

Specifications
1.3.5mm stereo to 2RCA cable/ 3.5mm stereo audio cable, 3.5mm male to 2RCA male cable
2. Approval of UL, VDE, ROHS.

3.5mm stereo plug to 2RCA cable
Those are connected to CD player, Audio and Video player or computer system, etc. This cable set maximizes signal transfer for optimum sound.

Characteristics:
Conductor: Tin copper, 10+10/0.10mm or 10+20/0.10mm, 28AWG
Insulation: PVC
Color: Available
Thickness: 0.4mm, Diameter: 1.0± 0.1mm
Shield: Tin copper, 10/0.10mm or 20/0.10mm
Jacket: PVC, Non migration against ABS, Lead free
Length: Available

Electrical:
Testing: 100% open and short test
Contact Resistance: 30M Ohms Max
Voltage rating: AC/DV 125V
Current rating: AC/DV 1A
Withstanding Voltage: AC 250V/1 Min
Insulation resistance: 100M Ohms Min
Working Temperature: -25° ~+85°


1. RCA Composite Video + Audio Cable
2. Get composite RCA video and audio connectors all in one cable.
3. AVA gold-plated Composite RCA Video and Audio Cable is specifically designed to provide sharp and clear video and sound for your home theatre system.
4.99.99% Pure Oxygen-Free Copper Wire
5. Spiral-Wound Bare Copper Shield
6. Ultra Flexible Rubberized 6.0mm OD PVC Jacket
7. You can connect video equipment with composite and audio output jacks to televisions and projectors with composite video and audio input jacks.
8. The 24K Gold-Plated gold-plated heavy duty RCA male connectors on each end provide excellent strain relief to keep your cable intact.
9. An ultra flexible PVC jacket and color coded connectors help to simplify installation.
10. Heavy duty PVC jacket provides maximum protection to the cable while minimizing signal loses and statics
11. Unparalleled Quality and Top-Line Performance for Home Theater Audio Equipment
12. AV Cable Type: Audio/Video Cable
13. Connectivity: RCA (M x 3) to RCA (M x 3), 1RCA, 2RCA, 3RCA, 6RCA all are in our production line.


Usage: Audio & video signals
Certificate: UL, CE. RoHS
Export to: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, MID East, Eastern Asia, Western Europe

Name RCA DC cable
Core CCS/ CCA/ 100% Oxygen Free Bare Copper Conductor
Connector Gold-Plated or Nickle-Plated Connector
OD 2.0mm --4.8mm
Insulation PE,PVC material,ensure image quality,transmit image signal stably
Shield Bare Copper Wire Aluminum-Mylar foil shield
Jacket PVC jacket, can be used in high temperature
Application Computer, Tv , DVD , Power Amplifier , MP3 , Cellphone , Voice Box
Color Golden/Black/Red/Gray/Blue/Transparent/others
Length 0.5m ,1m,1.5m,2m,2.5m,3m,5m,10m,etc.other lengths
Packing Polybag , Blister Pack
Certificate CE/UL/CSA/ROHS
OEM Accepted

Category: Audio and Video Cable

Related Category: DisplayPort Cable  Computer Cable  Speaker Cable  Patch Cord Cable  Lan Cable

Payment & Shipping Terms Supply Capacity
Unit Price: 0.9~6.54 USD Production Capacity: 10,000,000pcs/Month
Trade Term: FOB Packing: Clamshell packing
Payment Terms: L/C, T/T, WU Delivery Date: About 30 days
Min. Order: 1 Piece/Pieces
Means of Transport: Ocean, Air, Land

Specifications
1.3.5mm stereo to 2RCA cable/ 3.5mm stereo audio cable, 3.5mm male to 2RCA male cable
2. Approval of UL, VDE, ROHS.

3.5mm stereo plug to 2RCA cable
Those are connected to CD player, Audio and Video player or computer system, etc. This cable set maximizes signal transfer for optimum sound.

Characteristics:
Conductor: Tin copper, 10+10/0.10mm or 10+20/0.10mm, 28AWG
Insulation: PVC
Color: Available
Thickness: 0.4mm, Diameter: 1.0± 0.1mm
Shield: Tin copper, 10/0.10mm or 20/0.10mm
Jacket: PVC, Non migration against ABS, Lead free
Length: Available

Electrical:
Testing: 100% open and short test
Contact Resistance: 30M Ohms Max
Voltage rating: AC/DV 125V
Current rating: AC/DV 1A
Withstanding Voltage: AC 250V/1 Min
Insulation resistance: 100M Ohms Min
Working Temperature: -25° ~+85°


1. RCA Composite Video + Audio Cable
2. Get composite RCA video and audio connectors all in one cable.
3. AVA gold-plated Composite RCA Video and Audio Cable is specifically designed to provide sharp and clear video and sound for your home theatre system.
4.99.99% Pure Oxygen-Free Copper Wire
5. Spiral-Wound Bare Copper Shield
6. Ultra Flexible Rubberized 6.0mm OD PVC Jacket
7. You can connect video equipment with composite and audio output jacks to televisions and projectors with composite video and audio input jacks.
8. The 24K Gold-Plated gold-plated heavy duty RCA male connectors on each end provide excellent strain relief to keep your cable intact.
9. An ultra flexible PVC jacket and color coded connectors help to simplify installation.
10. Heavy duty PVC jacket provides maximum protection to the cable while minimizing signal loses and statics
11. Unparalleled Quality and Top-Line Performance for Home Theater Audio Equipment
12. AV Cable Type: Audio/Video Cable
13. Connectivity: RCA (M x 3) to RCA (M x 3), 1RCA, 2RCA, 3RCA, 6RCA all are in our production line.


Usage: Audio & video signals
Certificate: UL, CE. RoHS
Export to: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, MID East, Eastern Asia, Western Europe

Name RCA DC cable
Core CCS/ CCA/ 100% Oxygen Free Bare Copper Conductor
Connector Gold-Plated or Nickle-Plated Connector
OD 2.0mm --4.8mm
Insulation PE,PVC material,ensure image quality,transmit image signal stably
Shield Bare Copper Wire Aluminum-Mylar foil shield
Jacket PVC jacket, can be used in high temperature
Application Computer, Tv , DVD , Power Amplifier , MP3 , Cellphone , Voice Box
Color Golden/Black/Red/Gray/Blue/Transparent/others
Length 0.5m ,1m,1.5m,2m,2.5m,3m,5m,10m,etc.other lengths
Packing Polybag , Blister Pack
Certificate CE/UL/CSA/ROHS
OEM Accepted

Category: Audio and Video Cable

Related Category: DisplayPort Cable  Computer Cable  Speaker Cable  Patch Cord Cable  Lan Cable
