50 Ports Rj11 Voice Patch Panel

Quantity:
Payment & Shipping Terms Supply Capacity
Trade Term: FOB Production Capacity: 10,000,000pcs / month
Payment Terms: L/C, T/T, WU Packing: Paper Box or According...
Min. Order: 100 Piece/Pieces Delivery Date: About 20 days.
Means of Transport: Ocean, Air, Land

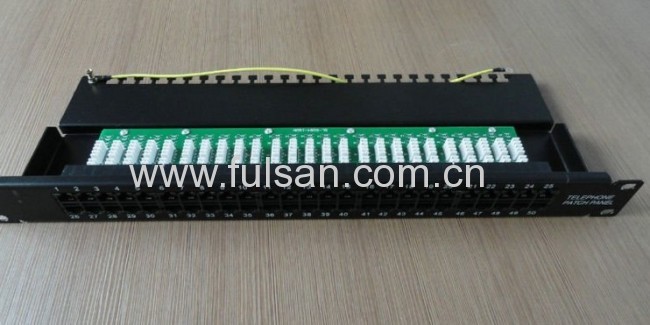

50 ports voice patch panel (6P4C)/50 port RJ11 cat3 voice telephone patch panel

1. Utp 50-port patch panel
2. Voice patch panel
3. FTP snap-in patch panel
4. Cat3 rj11 patch panel
5. Telephone patch panel

1. RJ11 cat3 voice telephone patch panel
2. Meet TIA/EIA-586A and TIA/EIA 586-B standard
3.1U 19" rack mount
4.25 port and 50 port are available
5. OEM and ODM available

Feature:
1) Toolless and cabinet designed;
2) Highly resistance and inflaming retarding material, Grade UL94-0;
3) Connection strap to adopt gold plate, alloy of Cu and Be, IDC to use the alloy of Cu and P;
4) Firm and easy installation reducing the installation and operation cost;
5) Transmission stability;
6) Module part is fitted with shield, protecting inner 1DC contact from irregular working in rugged environment;
7) Meet or exceed the current T568A and T568B standard.

Application standard:
ISO/IEC11801: 2002
IEC 60603-7-4(edition: 1.02003-01-10)
IEC 60603-7-2(edition: 1.02003-01-10)
EIA/TIA568B. 2-1(2002de-embedded)

Item: Specification:
Product name: 50 ports RJ11 Voice Patch Panel HM-PPS8
Port: 50 ports
Category: 4C with module
Height: 2U
Housing: Steel with Black Painting/ABS
Size: 483*88*24mm
Weight: 578g
Install way: Rack mount
Thickness of steel: 1.2mm
Certification: CE & RoHS
Electrical Voltage Rating :125 VAC  RMS
Current Rating : 1.5AMP
Contact  Resistance:110 Milliohs MAX.
Insulation Resistance:1 000 megohms   MIN  500 VDC
Dielectric Strength :750   VAC   RMS    60Hz ,1 MIN
Environment Storge: -40~ 85°c
Operation: 0~70°c
Machanical
Contact: Phosphor Bronze with gold Plating
RJ11 Jack:IFE:750 times MIN.
IDC Life :200 times MIN.
Wire:AWG 24-26

Category: Patch Panel
