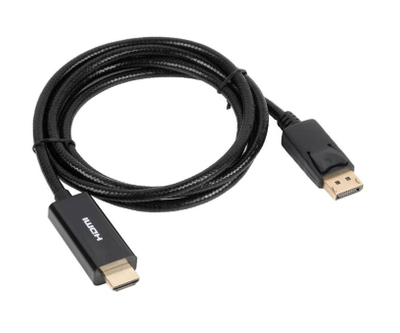

6ft DisplayPort To HDMI Cable DP To HDMI Converter Cable For PC Monitor Support 4K Resolution

Displayport to HDMI Cable
Male to Male 1.8M, 3m
100% Pure Copper conductor
24K Gold-Plated Connector with Dust cap
Availability:
Quantity:
  • HDMI cable (FS-HDMI28)

  • Fulsan

  • 854442

  • 120g/pc

  • 1m, 2m, 3m, 5m, 10m, 12m, 15m, 20m

6ft DisplayPort To HDMI Cable DP To HDMI Converter Cable For PC Monitor Support 4K Resolution


Male to Male 1.8M, 3m

100% Pure Copper conductor
24K Gold-Plated Connector with Dust cap

Compliant with DisplayPort Interoperability specification V1.1a.
. Support full DisplayPort link training.
. Compliant with HDMI 1.3a specification up to 2.25 Gbps.
. ESD protect: Human Body Mode at 8 kV, Machine Mode at 400V, and Charged Device Mode at 2 kV.
. PC: VGA, SVGA, XGA, SXGA, and UXGA.
. HDTV: 480i, 576i, 480p, 576p, 1080i and 1080p.
. Standby mode current: 64uA...LED indicator: Cable link status.
. W/Latch, W/LED, Adapter Type, Plastic Cover Ass'y, Width=21mm, RoHS


This is a DisplayPort to HDMI Adapter for interfacing next generation DisplayPort based PC and notebook computers with high definition displays. DisplayPort offers a unified, scalable, and cost effective interface for embedded and external display applications. As desktop and notebook PCs are increasingly transitioning from conventional analog type interfaces to DisplayPort, the converter facilitates the transition by offering seamless connectivity between new DisplayPort PC and the installed base HDMI monitors and projectors.


It offers solutions for digital entertainment center, HDTV retail and show site, HDTV, STB, DVD and Projector factory, noise space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

Electrical:
100% open and short test
Voltage: 300V DC, 5MΩ /10ms
Insulation resistance: 10MΩ Minimum
Contact resistance: 2Ω Maximum
Working temperature: -25 to 80 degree Celsius




Item High Speed HDMI to Displayport Cable
Connector Full 19pin HDMI port 24k gold plated
Connector type Type A
Plug mould PVC injection mould, bi-color mould, metal shell mould
Gender Male
conductor Full oxygen-free pure copper
Wire gauge AWG24, AWG26, AWG28, AWG30
Cable jacket PVC
Support 1080P, 3D, ethernet, 4K, audio return channel
Application HDTV, DVD player, set top box, xbox360, ps3, satellite, home studio^
Packing 1. Polybag, blister packaging etc

2.According to customers.


DP TO hdmi 8DP TO hdmi 9DP TO hdmi 10DP TO hdmi 11DP TO hdmi 12DP TO hdmi 13
