| Payment & Shipping Terms | Supply Capacity | ||
|---|---|---|---|
| Unit Price: | 8.5 USD | Production Capacity: | 10,000,000pcs / month |

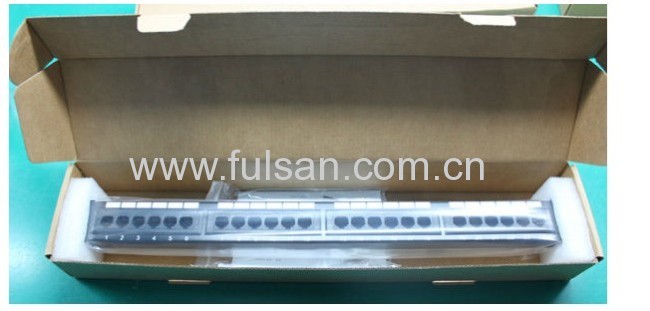

| Trade Term: | FOB,CFR,CIF,CIP,FCA,EXW | Packing: | Paper Box or According... |
| Payment Terms: | L/C, T/T, WU | Delivery Date: | About 20 days. |
| Min. Order: | 100 Piece/Pieces | ||
| Means of Transport: | Ocean, Air, Land | ||
Product Description

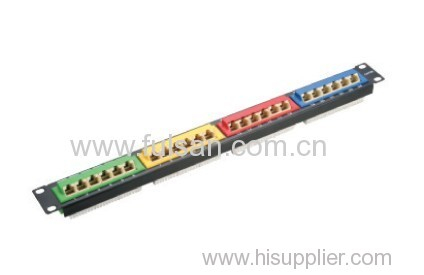

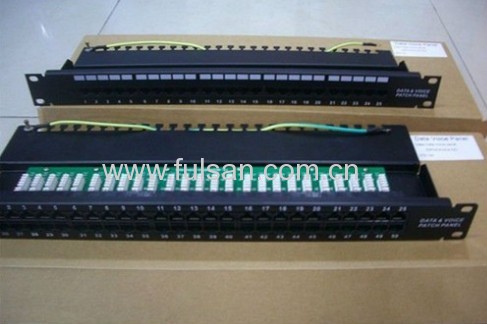

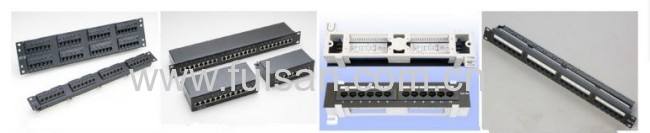

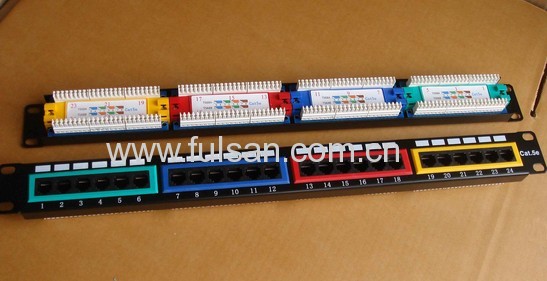

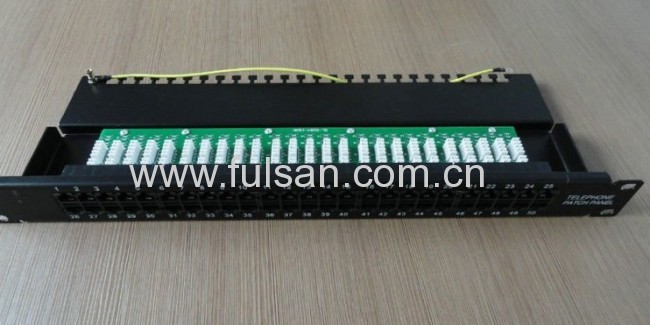

Cat5e cat6 Patch Panel
Specifications
1.12/16/18/24/48 ports patch panel
2. OEM, ODM available
3. ISO9001, RoHS, CE, FCC, UL, ETL
4, Size: 1U, 2U 19"
5.110 IDC patch panel
Patch Panel Discription:
Specifications:
Meet TIA/EIA-568-A and TIA/EIA-568-B Category 5E requirements.
Meet TIA/EIA TSB-40
Meet ISO/IEC Generic Cabling Standard 11801
Meet CENELEC Generic Cabling Standard EN50173
Electrical:
Angle: 90, 180 Degree
Termination: 110 Type
Current rating: 1.5 Amp Max.
Voltage rating: 150 Volts
Contact resistance: 20 m-ohm
Insulation Resistance: 500M-ohm
Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min
Applications:
1. UTP 19" Rack 1U 24Port Cat6APatch Panel with shutter Door and Label Mark
2. Available in 1U&24Port and 2U&48Port configurations. 3. Exceeds all TIA/EIA568B.210 Cat6A and ISO/IEC 11801 Class EA component standard requirements at
swept frequencies up to 500MHZ 4. Certified performance channel up to 100meters and exceeds requirements of TIA/EIA 568B.2 10 and ISO/IEC 11801 class EA
5. Back Bar is optional 6. IDC Block: K:LSA Block, D:Dual Block, H:110 Block
Materials:
Housing: PC UL94V-0
IDC: PC UL94V-0, Accept 22-26 AWG Solid Wire.
PCB: FR4 1.6mm(0.04") thickness, 2 layers
Contact: PC UL94V-0, 0.45mm(0.018") Diameter Phosphor bronze with 3 u"-50U" Gold plating on contact area.
| Item No. | Description |
| P197-12 | 19" . 1u, 12 ports |
| P197-18 | 19" . 1u, 18 ports |
| P197-24 | 19" . 1u, 24 ports |
| P197-48 | 19" 2u, 48 ports |
