Bulk 305m 23AWG UTP CAT6 Networking Cable Pass Fluke Test

Quantity:
Payment & Shipping Terms Supply Capacity
Unit Price: 27.0 USD Production Capacity: 10,000,000rolls/month

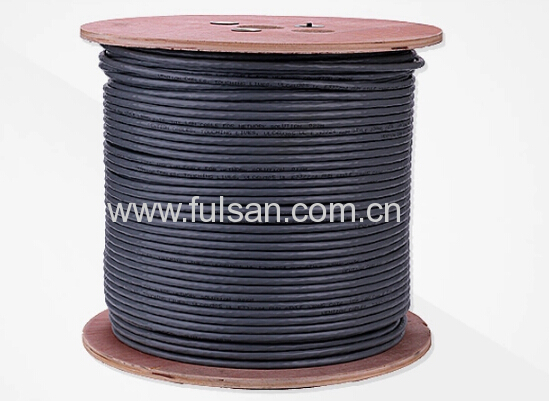

Trade Term: FOB,CFR,CIF,CIP Packing: Easy Pull Box or Drum
Payment Terms: L/C, T/T, WU Delivery Date: About 30 days
Min. Order: 50 Pack/Packs
Means of Transport: Ocean, Air, Land

UL/CE/RoHS/ISO Approved UTP cat6 4X2X23 AWG Cable
UTP CAT6 LAN CABLE
LAN CABLE UTP CAT6

UTP CAT6 Cable
1)Product Description

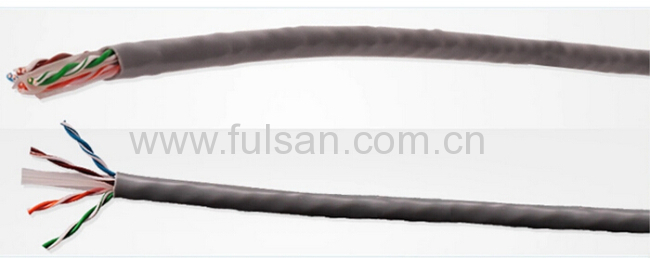

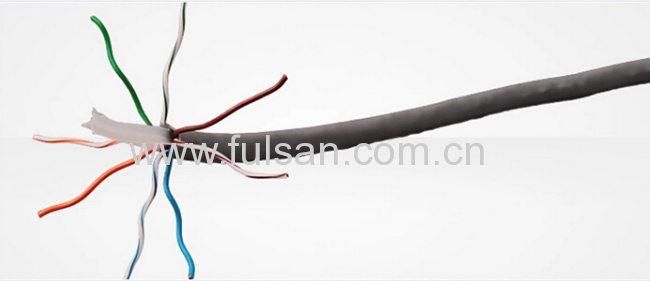

4PX(0.57mm Copper/1.00mm PE) + Separator + Ripcord + 6.30mm PVC
Rated temperature: 60, 75
Bare solid of stranded copper conductor
Colour-coded PE insulation
Rip cord(optional)
PVC or LSOH jacket
Flammadbility Grade: CMX, CM, CMR
Standard: UL444, TIA/ETA568B

2) Characteristics
Impedance: 100+/-15 Ohms
Velocity of Propagation: 65%
SRL: >=20dB (1 to 200 MHz)
>=15dB (200to 550 MHz)

3) Attenuation 20(dB/100M)
1MHz 1.9 dB/100m
4MHz 3.7 dB/100m
8MHz 5.3 dB/100m
10MHz 5.9 dB/100m
16MHz 7.5 dB/100m
20MHz 8.4 dB/100m
25MHz 9.5 dB/100m
31.25MHz 10.6 dB/100m
62.5MHz 15.4 dB/100m
100MHz 19.8 dB/100m
155MHz 25.1 dB/100m
200MHz 29.0 dB/100m
250MHz 32.8 dB/100m
300MHz 36.4 dB/100m
350MHz 39.8 dB/100m
400MHz 43.0 dB/100m
450MHz 46.3 dB/100m
500MHz 48.9 dB/100m
550MHz 51.8 dB/100m

4)Application:
10 Base-T
100 Base-T4
100 Base-TX
100VG-AnyLAN
1000Base-TATM

Structure:
Bare copper, PE insulation, FR PVC/LSOH PVC RoHS jacket
Standards:
ISO/IEC11801, ANSI/TIA/EIA-568B,

Application:
Used as work-station oution to the FD/IDF and other horizontal cabling, supporting TP-PMD Audio, integrated service digital network(ISDN), ATM 155Mbps, 1Gmbps TPDDI, Fast Ether-net etc

Usage: Network cabling
Certificate: UL, CE, CCC
Export to: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, MID East, Eastern Asia, Western Europe

Construction

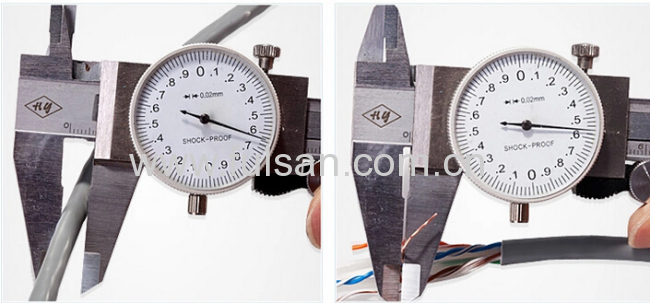

Center Conductor 0.57mm+ 0.01mm Solid Copper/Copper Clad AL (CCA)/Copper clad steel(CCS)
Dielectric 1.02 + 0.05mm PE
cross slot PE
Jacket 6.1 + 0. 1 mm PVC /LSZH
Jacket Color Black/White or per customers' request




Dielectric strength 2.5KV dc-2seconds
Conductor resistance Max  7.0 ohm/100M at 20°C
Max. ring resistance 16.8 ohm/100M at 20°C
Max. mutual capacitance 560 pf/100M
Max. capacity unbalance 330 pf/100M
Standard impedance 100±15 ohm between 1Mhz and 100Mhz
Minimum bending radius 60 mm
Working temperatures -20 ~ 60°C
Fluke Test on DTX1800 ( USA ) 100% pass 90m Fluke Link Test



Frequency (Mhz) RL ATT NEXT PS. ELFEXT PS-ELFEXT
(dB) (dB/100) (dB) NEXT (dB) (dB)
(dB)
1 20 2.04 74.3 72.3 67.8 64.8
4 23.01 3.81 65.3 63.3 55.8 52.8
8 24.52 5.35 60.8 58.8 49.7 46.7
10 25 5.99 59.3 57.3 47.8 44.8
16 25 7.6 56.2 54.2 43.7 40.7
20 25 8.52 54.8 52.8 41.8 38.8
25 24.32 9.75 53.3 51.3 39.8 36.8
31.25 23.64 10.74 51.9 49.9 37.9 34.9
62.3 21.54 15.48 47.7 45.4 31.9 28.9
100 20.1 19.92 44.3 42.3 27.8 24.8
