CAT6 STP 305 METERS CABLE ROLL CAT6 ETHERNET LAN CABLE

Availability:
Quantity:
Inquire Add to Basket

  • FS-Lan008

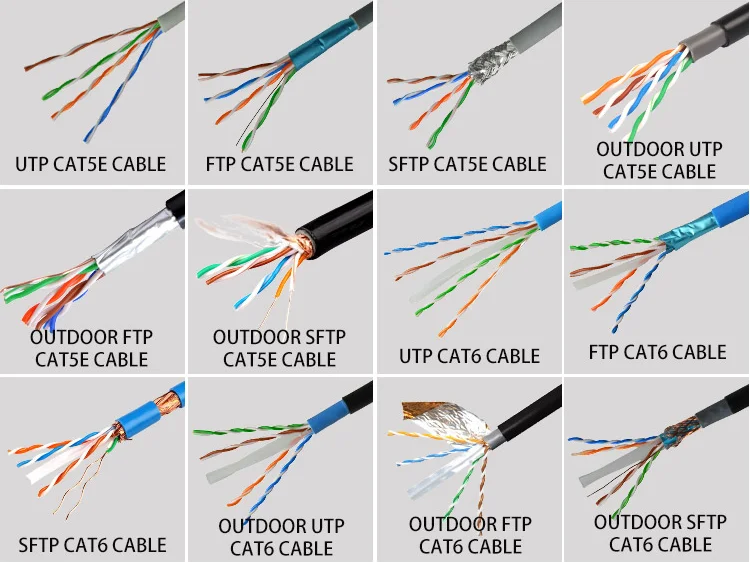

Glory 305m roll 4pair 23awg 0.57mm CCA CAT6 UTP LAN Cable


Product Description
Product Name
CAT6 STP 305 METERS CABLE ROLL CAT6 ETHERNET LAN CABLE

Inner Conductor
Material
CCS/ CCA/ CCAG/ CCC/ BC
Diameter
0.58mm ± 0.01mm ( 23AWG )


Insulation ( Dielectric )
Material
Color-coded PE (Polyethylene)
Thickness
≥ 0.21mm
Diameter
1.05mm ± 0.01mm
Cross Separator
Material
Plastic
Shielded Layer
Material
Aluminum Foil


Twisted Pair


N/A
Pair 1: Blue, White/ Blue
Pair 2: Orange, White/ Orange
Pair 3: Green, White/ Green
Pair 4: Brown, White/ Brown


Outer Jacket
Material
New PVC (Rip code, Optional)
Thickness
≥ 0.65mm
Nominal O.D
6.80mm ± 0.10mm
Reference Standard
Category 6 UL444, ANSI/ TIA/ EIA 568B & ISO/ IEC11801 Stanard
Rated Temperature
-20℃ to +70℃
Supports Transmission
Digital and analogue voice, data and video signal
