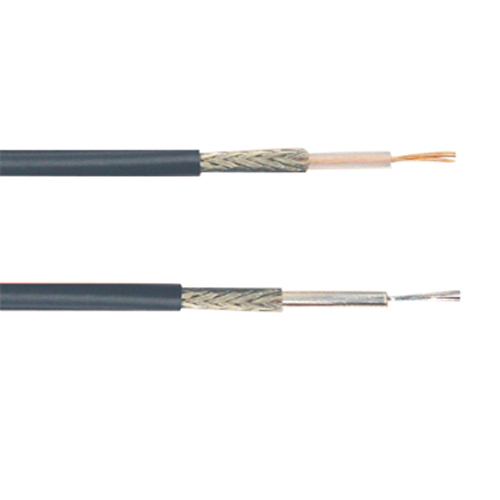

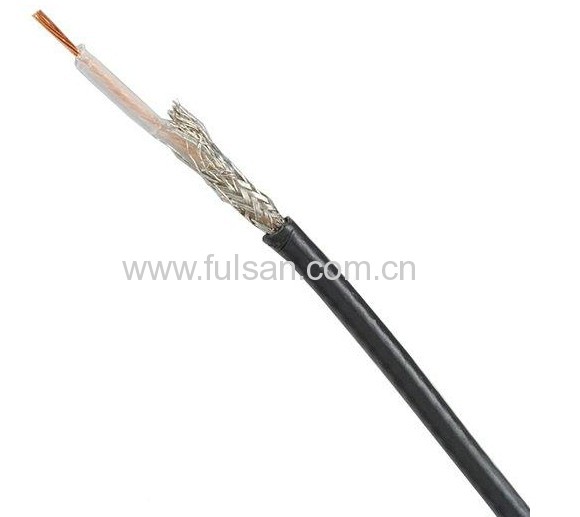

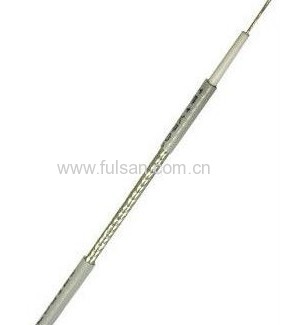

CCTV RG174 Coaxial Cable

Quantity:
Payment & Shipping Terms Supply Capacity
Payment Terms: L/C, T/T, WU Production Capacity: 1000000/month
Min. Order: 1000 pcs Packing: According to client's...
Means of Transport: Ocean, Air, Land Delivery Date: 30days

Coaxial Cable, RG6 Coaxial Cable, RG59 Coaxial Cable, Digital Coaxial Cable, RG11 Coaxial Cable, 75 OHM Coaxial Cable, RG58 Coaxial Cable manufacturer and factory in China. We can produce Coaxial Cable, RG6 Coaxial Cable, RG59 Coaxial Cable, Digital Coaxial Cable, RG11 Coaxial Cable, 75 OHM Coaxial Cable, RG58 Coaxial Cableaccording to your requirements. More types of Coaxial Cable, RG6 Coaxial Cable, RG59 Coaxial Cable, Digital Coaxial Cable, RG11 Coaxial Cable, 75 OHM Coaxial Cable, RG58 Coaxial Cablewanted, please contact right now!
Specifications:
1)7x0.16mmBare Copper+1.52mmFoamedPE+A/P/A+60%TinnedCopperBraiding +2.54mmPVC
2) Customers' specifications are welcomed
Note:
1) Center conductor: Tinned Copper, Bare Copper, and Copper Clad Steel available;
2) Al-foil: Non-bonded Al-foil, bonded Al-foil, double bonded Al-foil,
and double non-bonded Al-foil are available;
3) Braiding wire: AL, Bare Copper and Tinned Copper available;
4) Braiding wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15, 0.16mm available;
5) Braiding net: 32, 48, 64, 72, 80, 96, 120,128 ,144 and more available;
6) Braiding coverage: Between 30- 97% available;
7) PVC jacket of Flame retardant ,UV, or UL available.
Characteristics:
Impedance: 50+/-2 Ohm
Velocity of Propagation: 85%
Capacitance: 110pF/m
Return Loss: 20dB min
Attenuation: [@68 F. (20 C) ] dB/100meters
1MHz:   1.9dB                 1000MHz: 25.94dB
10MHz: 2.92dB                1200MHz: 28.60dB
50MHz: 5.49dB                1450MHz: 31.65dB
100MHz: 8.13dB                1800MHz: 35.56dB
200MHz: 11.25dB               2250MHZ: 39.62dB
400MHz: 16.01dB
700MHz: 21.52dB
900MHz: 24.53dB

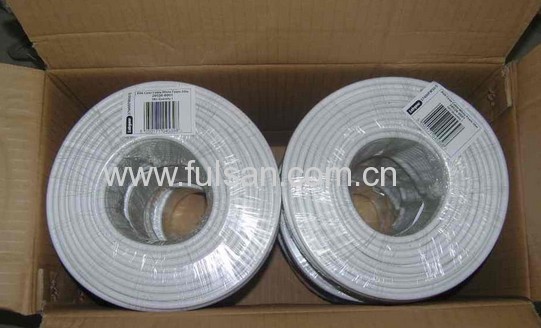

Packing:
1) Packing Lengths:
100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll
Other lengths available according to client's request;
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request.
CCTV RG174 Coaxial Cable CCTV RG174 Coaxial Cable CCTV RG174 Coaxial Cable CCTV RG174 Coaxial Cable CCTV RG174 Coaxial Cable

Category: Coaxial Cable
