CCTV RG213 Coaxial Cable

Quantity:
Payment & Shipping Terms Supply Capacity
Trade Term: FOB Production Capacity: 1000000/month
Payment Terms: L/C, T/T, WU Packing: According to client's...
Min. Order: 1000 pcs Delivery Date: 30days
Means of Transport: Ocean, Air, Land

Coaxial Cable, RG6 Coaxial Cable, RG59 Coaxial Cable, Digital Coaxial Cable, RG11 Coaxial Cable, 75 OHM Coaxial Cable, RG58 Coaxial Cable manufacturer and factory in China. We can produce Coaxial Cable, RG6 Coaxial Cable, RG59 Coaxial Cable, Digital Coaxial Cable, RG11 Coaxial Cable, 75 OHM Coaxial Cable, RG58 Coaxial Cableaccording to your requirements. More types of Coaxial Cable, RG6 Coaxial Cable, RG59 Coaxial Cable, Digital Coaxial Cable, RG11 Coaxial Cable, 75 OHM Coaxial Cable, RG58 Coaxial Cablewanted, please contact right now!
Specifications:

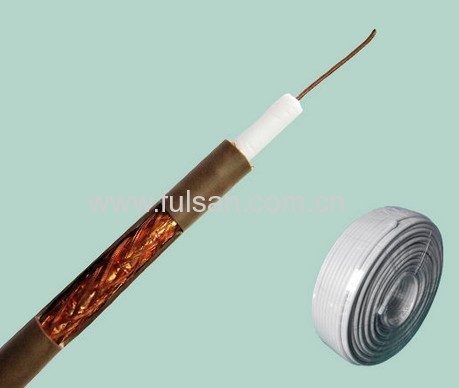

1)7X0.75mmBareCopper+7.24mmSolid PE+96%BareCopperBraiding +10.3mmPVC(or PE)
2) Customers' specifications are welcomed
Note:
1) Center conductor: Tinned Copper, and Bare Copper available;
2) Al-foil: Non-bonded Al-foil, bonded Al-foil, double bonded Al-foil,
and double non-bonded Al-foil are available;
3) Braiding wire: AL, Bare Copper and Tinned Copper available;
4) Braiding wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15, 0.16mm available;
5) Braiding net: 80, 96, 120,128 ,144 and more available;
6) Braiding coverage: Between 70- 97% available;
7) PVC jacket of Flame retardant ,UV, or UL available.
Characteristics:
Impedance: 50+/-2 Ohm
Velocity of Propagation: 66%
Capacitance: 30.8pF/m
Return Loss: 20dB min
Attenuation: [@68 F. (20 C) ] dB/100meters
10MHz: 1.80dB           400MHz: 15.10dB
20MHz: 2.80dB           500MHz: 16.20dB
50MHz: 4.40dB           8000MHz: 21.50dB
100MHz: 6.80dB           1000MHz: 24.50dB
200MHz: 9.70dB

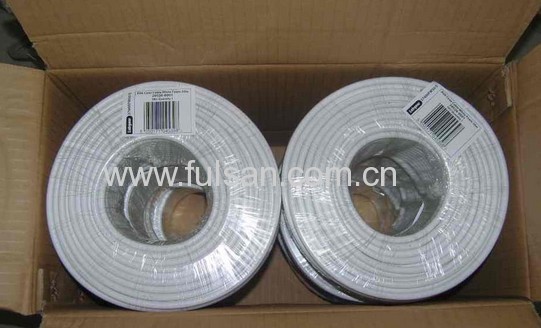

Packing:
1) Packing Lengths:
100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll
Other lengths available according to client's request;
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request.

CCTV RG213 Coaxial Cable CCTV RG213 Coaxial Cable CCTV RG213 Coaxial Cable CCTV RG213 Coaxial Cable CCTV RG213 Coaxial Cable

Category: Coaxial Cable
