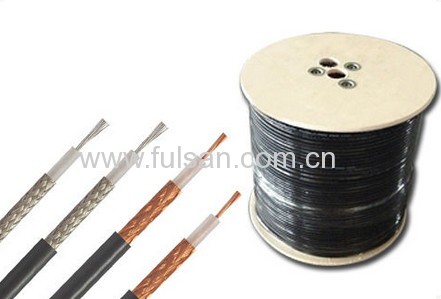

CCTV RG58 Coaxial Cable

Quantity:
Payment & Shipping Terms Supply Capacity
Payment Terms: L/C, T/T, WU Production Capacity: 1000000/month
Min. Order: 1000 pcs Packing: According to client's...
Means of Transport: Ocean, Air, Land Delivery Date: 30days

Coaxial Cable, RG6 Coaxial Cable, RG59 Coaxial Cable, Digital Coaxial Cable, RG11 Coaxial Cable, 75 OHM Coaxial Cable, RG58 Coaxial Cable manufacturer and factory in China. We can produce Coaxial Cable, RG6 Coaxial Cable, RG59 Coaxial Cable, Digital Coaxial Cable, RG11 Coaxial Cable, 75 OHM Coaxial Cable, RG58 Coaxial Cableaccording to your requirements. More types of Coaxial Cable, RG6 Coaxial Cable, RG59 Coaxial Cable, Digital Coaxial Cable, RG11 Coaxial Cable, 75 OHM Coaxial Cable, RG58 Coaxial Cablewanted, please contact right now!
Specifications:

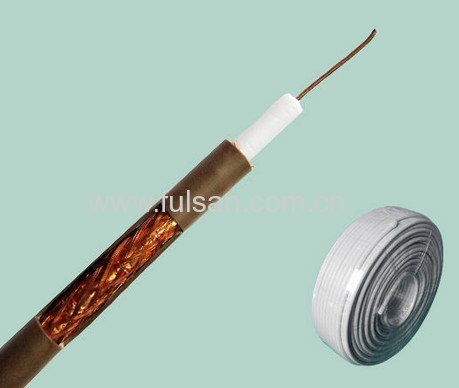

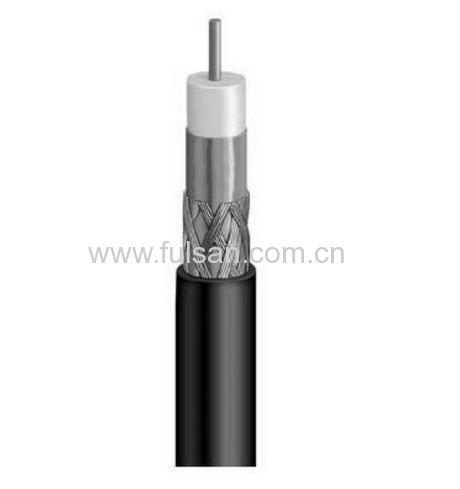

1)19X0.18mmTinnedCopper+2.95mmSolid PE + + 95% Tinned Copper Braiding+4.95mmPVC
2)Customers' specifications are welcomed
Note:
1) Center conductor:Tinned Copper, Bare Copper, and Copper Clad Steel available;
2) Al-foil:Non-bonded Al-foil, bonded Al-foil, double bonded Al-foil,
And double non-bonded Al-foil are available;
3) Braiding wire:AL, Bare Copper and Tinned Copper available;
4) Braiding wire diameter:0.10, 0.12, 0.13, 0.14, 0.15, 0.16mm available;
5) Braiding net:80, 96, 120,128 ,144 and more available;
6) Braiding coverage:Between 80- 97% available;
7) PVC jacket of Flame retardant ,UV, or UL available.
Characteristics:
Impedance:50+/-2 Ohm
Velocity of Propagation:66%
Capacitance:93.5pF/m
Return Loss:23dB min
Attenuation:[@68 F.(20 C) ] dB/100meters
30MHz:6.30dB                1500MHz:45.60dB
50MHz:8.10dB                1800MHz:50.10dB
150MHz:14.10dB              2000MHz:53.00dB
220MHz:17.10dB              2500MHz:59.50dB
450MHz:24.60dB              5800MHZ:93.10dB
900MHz:35.00dB

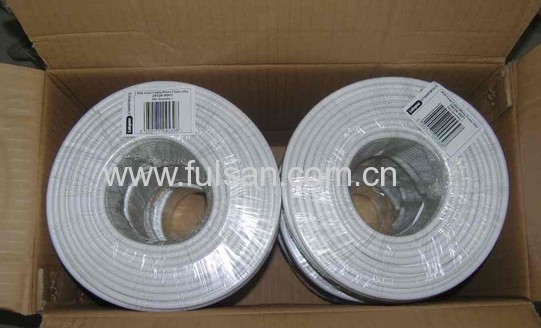

Packing:
1) Packing Lengths:
100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll
Other lengths available according to client's request;
2) Inner packing:Wooden reel, plastic reel, and paper reel available.
3) Outer packing:Carton box, pull out box, pallet available.
4) Other packing available according to client's request.

CCTV RG58 Coaxial Cable CCTV RG58 Coaxial Cable CCTV RG58 Coaxial Cable CCTV RG58 Coaxial Cable CCTV RG58 Coaxial Cable CCTV RG58 Coaxial Cable

Category: Coaxial Cable
