| Payment & Shipping Terms | Supply Capacity | ||
|---|---|---|---|
| Trade Term: | FOB | Production Capacity: | 1000000/month |
| Payment Terms: | L/C, T/T, WU | Packing: | According to client's... |
| Min. Order: | 1000 pcs | Delivery Date: | 30days |
| Means of Transport: | Ocean, Air, Land | ||
Coaxial Cable, RG6 Coaxial Cable, RG59 Coaxial Cable, Digital Coaxial Cable, RG11 Coaxial Cable, 75 OHM Coaxial Cable, RG58 Coaxial Cable manufacturer and factory in China. We can produce Coaxial Cable, RG6 Coaxial Cable, RG59 Coaxial Cable, Digital Coaxial Cable, RG11 Coaxial Cable, 75 OHM Coaxial Cable, RG58 Coaxial Cableaccording to your requirements. More types of Coaxial Cable, RG6 Coaxial Cable, RG59 Coaxial Cable, Digital Coaxial Cable, RG11 Coaxial Cable, 75 OHM Coaxial Cable, RG58 Coaxial Cablewanted, please contact right now!

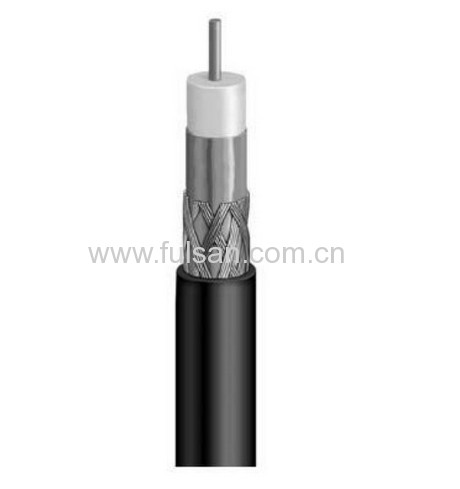

Specifications: 1)2.60mmBare Copper+7.25mmFoamed PE+A/P/A(bonded)+80% Tinned Copper Braiding+10.24mmPVC
2)Customers' specifications are welcomed
Note:
1) Center conductor: Tinned Copper, Bare Copper, and Copper Clad Steel available;
2) Al-foil: Non-bonded Al-foil, bonded Al-foil, double bonded Al-foil,
and double non-bonded Al-foil are available;
3) Braiding wire: AL, Bare Copper and Tinned Copper available;
4) Braiding wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15, 0.16mm available;
5) Braiding net: 80, 96, 120,128 ,144 and more available;
6) Braiding coverage: Between 80- 97% available;
7) PVC jacket of Flame retardant ,UV, or UL available.
Characteristics:
Impedance: 50+/-2 Ohm
Velocity of Propagation: 85%
Capacitance: 24.8pF/ft
Attenuation: [@68 F. (20 C) ] dB/100feet
5MHz: 0.4dB 900MHz: 4.1dB
10MHz: 0.5dB 1000MHz: 4.4dB
50MHz: 1.0dB 1500MHz: 5.5dB
100MHz: 1.4dB 1800MHz: 6.1dB
200MHz: 1.8dB 2000MHz: 6.5dB
400MHz: 2.6dB 2500MHz: 7.5dB
700MHz: 3.6dB 3000MHz: 8.3dB
400MHz: 9.9dB

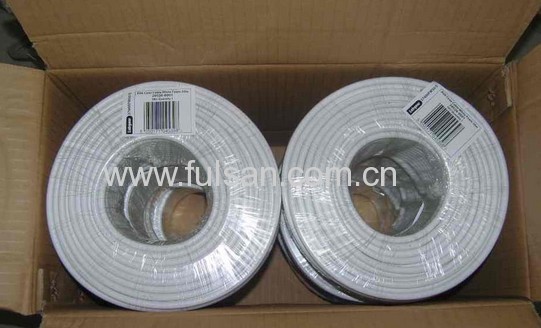

Packing:
1) Packing Lengths:
100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll
Other lengths available according to client's request;
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request.
