CE ROHS Fluke passed 24awg/4p UTP cat5e with best price

Quantity:
Payment & Shipping Terms Supply Capacity
Trade Term: FOB Production Capacity: 10,000,000rolls/month
Payment Terms: L/C, T/T, WU Packing: Easy Pull Box or Drum
Min. Order: 50 ROLLS Delivery Date: About 30 days
Means of Transport: Ocean, Air, Land

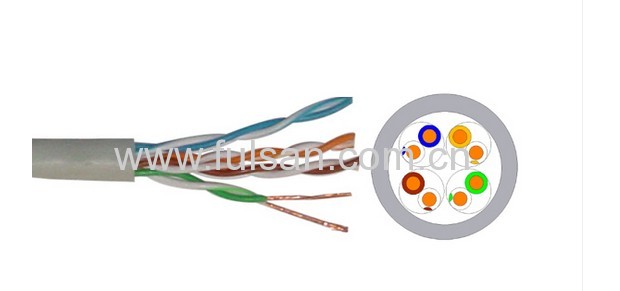

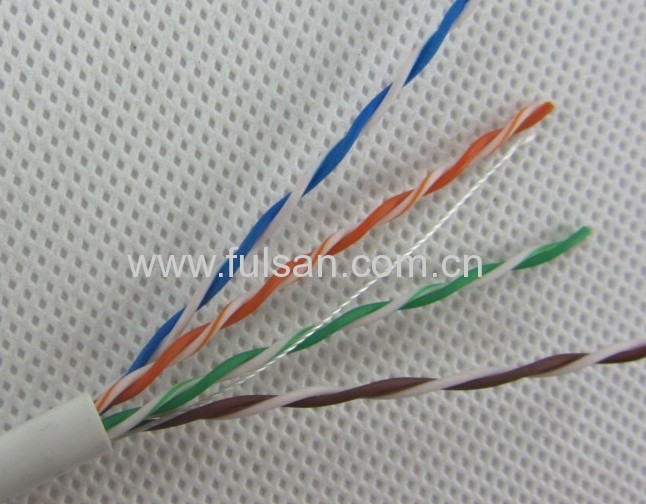

CCA Copper OFC 4PR 24AWG UTP Cat5e Cable



Applications:

1.Computer Network Cabling Project.

2.Broadband Network Communication.

3.Digital ISDN Network and ATM 155Mbps Network

4.Ethernet Network

5.Audio and Data Transmission



Specifications:

1.Solid OFC, Bare Copper, CCA, CCS Conductor

2.Color-coded PE Insulation

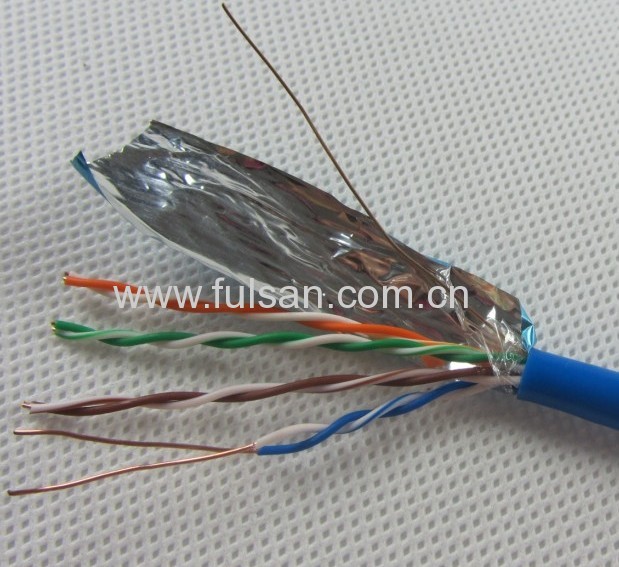

3.FTP: Full AL Foil Surrounding, SFTP, AL or Copper Braiding and AL Foil Surrounding

4.Rip cord

5.Drain wire(optional)

6.Lead Free PVC or LOSH Jacket

7.Flammability Grade: CMX, CM, CMG, CMR

8.Rated Temperature: 60°C or 75°C

9.Reference Standard: YD/T 1019-2001, TIA/EIA-568B

Electrical Properties:
Impedance: 100 Ohmn +/-15 @ 1-100 Mhz
Mutal Capacitance (max. ): 5.5 pF/100m
Capacitance Unbalance: 330 pF/100m
DC Resistance (max. ): 9.38 Ohm/100m
Resistance Unbalance (max. ): 5%
Velocity Ratio (nom. ): 65%

Model CAT5E Cable
Conductor Size 24AWG
0.45mm/0.48mm/0.49mm/0.5mm/0.51mm
Conductor Material CCA/CCU/BC
Nuber Of Conductor 4P
Shiled UTP/FTP
Flammability Grade CMP,CMX,CM,CMG,MPG,CMR,MPR
Insulation Material PE,HDPE,LSZH PE
Insulation Thickness 0.91mm
Jacket Material PVC, ROHS PVC, LSZH PVC
Outer Jacket Thickness 5.2mm
DC Resistance(Max.) 9.5Ω/100m
DC Resistance Imbalance 2.50%
Working Capacitance(Max.) 5.4nF/100m
Insulation Resistance 10000 MΩ.km
Transmission Velocity 65%
Operating Temperation -40 °C - +75 °C
PVC Jacket Color As client's request.
Marking On Jacket

On your request (Print your brand)



ELECTRICAL CHARACTERISTICS ( CAT5e lan cable )

Frequency(MHz)

Impedance(ohm)

RL(dB)

Attenuation(dB/100m)

Next(dB)

Next Power Sum(dB)

ELFEXT(dB)

PSELFEXT(dB)

1.0

100±15

20.0

2.0

62.3~65.3

62.3~62.3

61.0~63.8

61.0~60.8

4.0

100±15

23.0

4.1

53.0~56.3

53.0~53.3

49.0~51.8

49.0~48.8

10.0

100±15

25.0

6.5

47.0~50.3

47.0~47.3

41.0~43.8

41.0~40.8

16.0

100±15

25.0

8.2

44.0~47.2

44.0~44.2

37.0~39.7

37.0~36.7

20.0

100±15

25.0

9.2

43.0~45.8

43.0~42.8

35.0~37.8

35.0~34.8

31.25

100±15

23.6

11.7

40.0~42.9

40.0~39.9

31.0~33.9

31.0~30.8

62.50

100±15

21.5

17.0

35.0~38.4

35.0~35.4

25.1~27.8

25.1~24.9

100.0

100±15

20.1

22.0

32.0~35.3

32.0~32.3

21.0~23.8

21.0~20.8



CABLE CONSTRUCTION( WIRECOM CAT5e lan cable )

Construction

Conductor AWGA

No. of Pairs

Shielding

Steel Wire

Nom O.D(mm)

UTP

24

4

Non

Non

5.1

FTP

24

4

PET/AL

--

6.2

SFTP

24

4

PET/AL+Wire Braiding

--

6.5
