| Payment & Shipping Terms | Supply Capacity | ||
|---|---|---|---|
| Trade Term: | FOB | Production Capacity: | 10,000,000pcs / month |

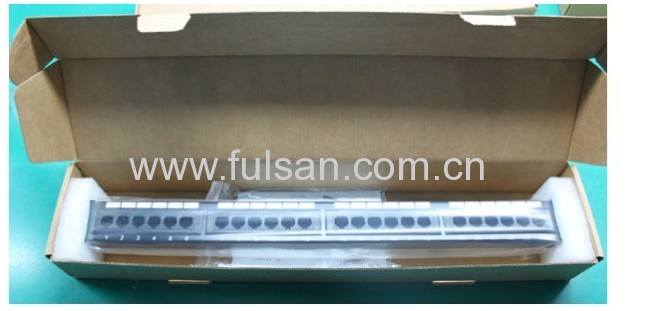

| Payment Terms: | L/C, T/T, WU | Packing: | Paper Box or According... |
| Min. Order: | 100 Piece/Pieces | Delivery Date: | About 20 days. |
| Means of Transport: | Ocean, Air, Land | ||
Product Description
Meet ISO/IEC 11801, TIA/EIA568B
Fit for wires AWG22-26
Plug omsertopm life 200 cycles
Plug insertion life 750 cycles Min
Dielectric strength: When applied AC 750V or DC
1000V 1 minute between adjacent terminal NO change
Material: Using PC/ABS for cover, PC for module, phosphor bronze for IDC wire post
Specifications

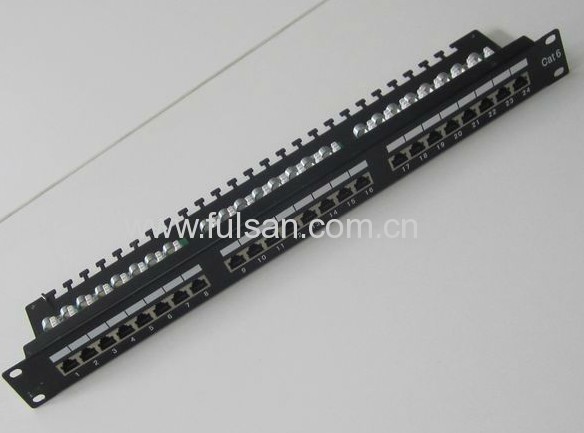

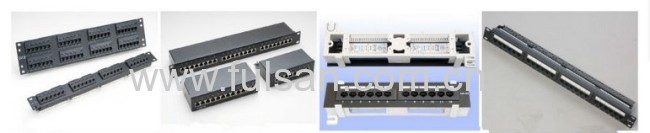

1.12/16/18/24/48 ports patch panel
2. OEM, ODM available
3. ISO9001, RoHS, CE, FCC, UL, ETL
4, Size: 1U, 2U 19"
5.110 IDC patch panel
Patch Panel Discription:
Specifications:
Meet TIA/EIA-568-A and TIA/EIA-568-B Category 5E requirements.
Meet TIA/EIA TSB-40
Meet ISO/IEC Generic Cabling Standard 11801
Meet CENELEC Generic Cabling Standard EN50173
Electrical:
Angle: 90, 180 Degree
Termination: 110 Type
Current rating: 1.5 Amp Max.
Voltage rating: 150 Volts
Contact resistance: 20 m-ohm
Insulation Resistance: 500M-ohm
Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min
Materials:
Housing: PC UL94V-0
IDC: PC UL94V-0, Accept 22-26 AWG Solid Wire.
PCB: FR4 1.6mm(0.04") thickness, 2 layers
Contact: PC UL94V-0, 0.45mm(0.018") Diameter Phosphor bronze with 3 u"-50U" Gold plating on contact area.
| Item No. | Description |
| P197-12 | 19" . 1u, 12 ports |
| P197-18 | 19" . 1u, 18 ports |
| P197-24 | 19" . 1u, 24 ports |
| P197-48 | 19" 2u, 48 ports |
Technical Details:
| Current Rating: | 1.5 Amps |
| Insulation Resistance: | 500 Megaohm |
| DC Resistance: | 0.1 ohm MAX |
| Contact Resistance | 20 Mili-ohm |
| Voltage: | 150 VAC MAX |
| Insertion Life: | ≥ 1000 Mating Cycles |
| Plug Retention Force: | 89N |
| Temperature: | — 60~80 °C |
| Humidity | 10%-90% RH |
| IDC Accept: | 22-26 AWG Solid Wire |
| Wire Scheme: | T568A/B |
Material:
| Panel | Cold rolled steel(thickness1.5mm) |
| Back Bar | Cold rolled steel(thickness1.5mm) |
| Housing | ABS |
| Spring Wire | Phosphor Bronze With Gold-plated 3u -50 u |
| IDC Contact | Phosphor Bronze |
| IDC Holder | High Impact PC |
