Coaxial Cable RJ56 Free sample 100% copper RG6 RG59 RG58 RG11 RG Series cctv coaxial cable

Availability:
Quantity:
Inquire Add to Basket

  • COA-038

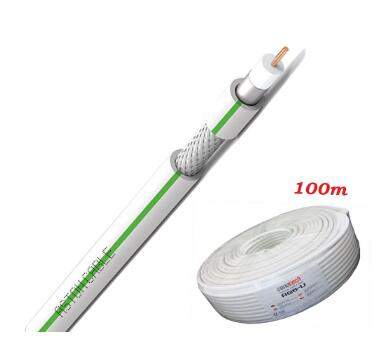

Factory of CATV using for video audio output 1.02mm 75ohm BC/CCS Communication Cables RG6 Coaxial cable

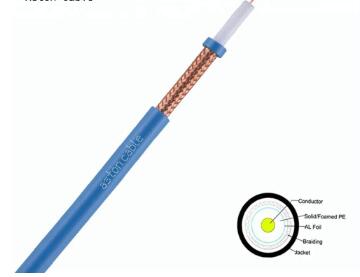

Diamensions

Type
RG59
RG6
RG11
Inner conductor(mm)
0.81
1.02
1.63
Dielectric(mm)
3.66
4.57
7.11
Outer onductor(mm)
4.47
5.38
8.03
Jacket(mm)
6.1
6.91
10.16



Electrical Character

Type
RG59
RG6
RG11
Impedance(Ω)
75±
SRL(>db)
20
Capacitance(pF/m)
53.1
Velocity of propagation
85%
Attenuation(,db/100m)
5MHz
2.91
2.00
1.44
55MHz
6.73
5.25
3.2
211MHz
12.47
10.00
6.23
300MHz
14.6
11.64
7.38
400MHz
16.73
13.61
8.53
450MHz
17.72
14.43
9.02
550MHz
19.52
16.08
9.97
750MHz
22.87
18.54
11.97
865MHz
24.67
20.01
13.05
1000MHz
26.64
21.49
14.27

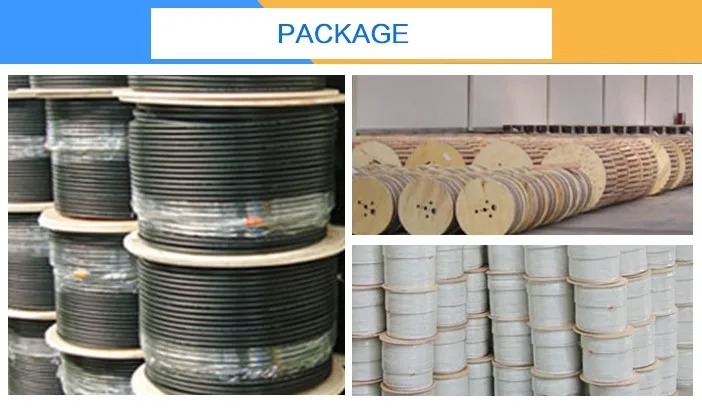

Package
