FS-DP001
Supports Synchronized Audio & Video Transmission
Support video resolutions up to 3840x2160 60Hz and 1080P (Full HD), and flawless audio pass-thru for uncompressed digital 7.1, 5.1 or 2 channel.
Meticulous Processing
Made of triple shielding, gold plated contacts and 28AWG OFC copper to ensure interference-free signal transmission, with a release button for the easy and secure connection.
Ultra HD 4K DisplayPort 1.2V
Extend or Mirror your Laptop/PC to a second display for an expanded workstation, home theater or show presentations on a projector at the office, school or home.
Compatible for (Partial list):
Laptops: Acer Aspire 8935G, HP EliteBook 8440p, Toshiba Tecra A, Dell Inspiron 14z, Lenovo Thinkpad T410 / T500 / W520, etc.
PC Graphics Cards: Geforce GTX 960 / 1080 / 1060 / 780, Radeon R9 290, etc.
Product name | AOC DP1.4 HDMI Cable game dedicated |
Cable length | 6-100m |

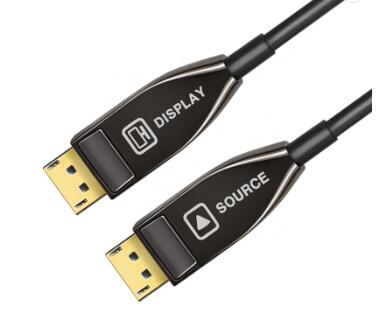

Connector | DP Male-DP Male (with a lock) |
| Bandwidth | DP1.4 standardizations,32.4G(8.1Gbps*4) |
| Resolution | 4k/120HZ 4K/144HZ 8K/60HZ |
| Power | No extra power supply |
| Power consumption | Source:85mW/3.3V, Display:290mW/3.3V |
| Cable diameter | φ4.5-5.0mm |
| Tensile force | 100N/200N |
Crush Resistance | 200N/100N |
Min curvature radius | 20mm/10mm |
Work/storage temperature | 0~50°C/-20~70°C |
Supports Synchronized Audio & Video Transmission
Support video resolutions up to 3840x2160 60Hz and 1080P (Full HD), and flawless audio pass-thru for uncompressed digital 7.1, 5.1 or 2 channel.
Meticulous Processing
Made of triple shielding, gold plated contacts and 28AWG OFC copper to ensure interference-free signal transmission, with a release button for the easy and secure connection.
Ultra HD 4K DisplayPort 1.2V
Extend or Mirror your Laptop/PC to a second display for an expanded workstation, home theater or show presentations on a projector at the office, school or home.
Compatible for (Partial list):
Laptops: Acer Aspire 8935G, HP EliteBook 8440p, Toshiba Tecra A, Dell Inspiron 14z, Lenovo Thinkpad T410 / T500 / W520, etc.
PC Graphics Cards: Geforce GTX 960 / 1080 / 1060 / 780, Radeon R9 290, etc.
Product name | AOC DP1.4 HDMI Cable game dedicated |
Cable length | 6-100m |
Connector | DP Male-DP Male (with a lock) |
| Bandwidth | DP1.4 standardizations,32.4G(8.1Gbps*4) |
| Resolution | 4k/120HZ 4K/144HZ 8K/60HZ |
| Power | No extra power supply |
| Power consumption | Source:85mW/3.3V, Display:290mW/3.3V |
| Cable diameter | φ4.5-5.0mm |
| Tensile force | 100N/200N |
Crush Resistance | 200N/100N |
Min curvature radius | 20mm/10mm |
Work/storage temperature | 0~50°C/-20~70°C |
