Double PVC Speaker Cable

Quantity:
Payment & Shipping Terms Supply Capacity
Payment Terms: L/C, T/T Production Capacity: 1000000/month
Min. Order: 1000 pcs Packing: According to client's...
Means of Transport: Ocean Delivery Date: 30days

Specifications

Conductor: OFC-OFC,CCA,CCS Tinned OFC-Tinned OFC Tinned CCA-Tinned CCA High Quality,...

Formation:

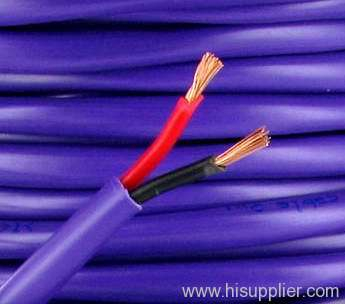

 The central part consists of 1 to 4 conductors depending on requirements each of which is composed of bare of tinned twisted copper wires and each of the conductors with PVC insulation layer, and Aluminum foil if required. If the shield is needed, it will be enveloped. The outer side is the transparent protective cover of PVC (Red of Black). This type of cable is applicable to acoustic equipment.

ROHS, Speaker cable, transparent speaker cable, black and red speaker cable, gold and silver speaker cable, Copper or CCA conductor Speaker cable,speaker wire
Red and black cable,white and black speaker wire
CCA or CCS condutor

100m/spool.


Packing Detail:



According to customers'  requriements ! It can be packed in coils, plastic reels and wooden drum and so on!

THE STRUCTURE LIST OF COLORED AUDIO & VIDEO CABLE
SERIAL No. DESCRIPTION AREA (m m2) SPECIFICATION   OUTER Φ mm WEIGHT (Kg/Km)
V-001         0.24                                   2*30/0.10        1.6*3.3            9



V-002         0.4                                     2*50/0.10         1.8*3.6           13
V-003 0.5 2*64/0.10 1.9*3.8 15
V-004 0.6 2*80/0.10 2.1*4.3 19
V-005 0.75 2*96/0.10 2.2*4.5 22
V-006 0.8 2*100/0.10 2.3*4.5 22
V-007 1 2*7*18/0.10 2.6*5.1 28
V-008 1.5 2*7*27/0.10 2.9*5.8 38
V-009 2 2*7*36/0.10 3.3*6.5 50
V-010 2.5 2*7*46/0.10 3.5*7.1 61
V-011 4 2*7*72/0.10 4.1*8.3 90
V-012 6 2*7*110/0.10 5.0*10.1 135
V-013 0.4 2*13/0.20 1.9*3.8 14
V-014 0.5 2*16/0.20 2.0*4.0 16
V-015 0.6 2*19/0.20 2.1*4.2 18
V-016 0.75 2*24/0.20 2.2*4.5 22
V-017 0.8 2*26/0.20 2.3*4.5 23
V-018 1 2*32/0.20 2.4*4.8 27
V-019 2 2*48/0.20 2.7*5.4 38
V-020 2 2*64/0.20 2.9*5.9 48
V-021 3 2*7*11/0.20 3.5*6.9 59
V-022 4 2*7*18/0.20 4.1*8.2 90
V-023 6 2*7*27/0.20 5.0*10.0 133
V-024        20                                       2*41/0.12         1.9*3.9            16

V-025        18                                       2*65/0.12        2.3*4.6           23
V-026 16 2*7*15/0.12 2.8*5.6 15
V-027 14 2*7*23/0.12 3.3*6.6 20
V-028 12 2*7*37/0.12 3.9*7.7 26
V-029 10 2*7*59/0.12 4.8*9.5 39
V-030 8 2*7*95/0.12 5.7*11.4 182

Category: Speaker Cable

Related Category: Network Cabinet  Patch Panel  Audio and Video Cable  Coaxial Cable  Scart Cable
