| Payment & Shipping Terms | Supply Capacity | ||
|---|---|---|---|
| Trade Term: | FOB | Production Capacity: | 1000000drum/month |

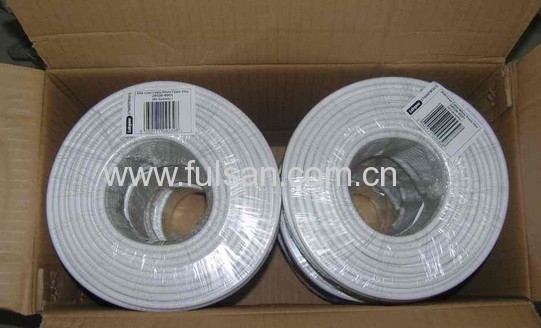

| Payment Terms: | L/C, T/T, WU | Packing: | According to client's... |
| Min. Order: | 5000 Meter | Delivery Date: | 30 days |
| Means of Transport: | Ocean, Air, Land | ||

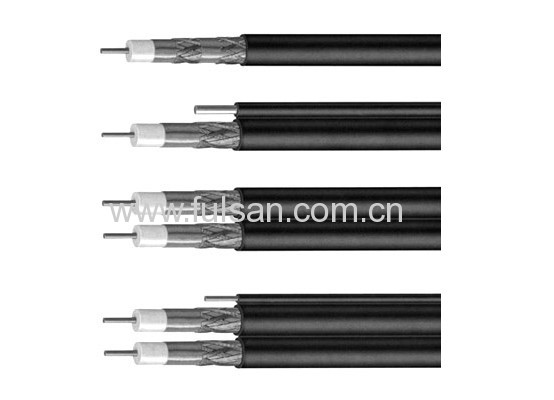

Dual Coaxial cable RG6 with messenger
1) Construction
Center Conductor: 1.02+0.01mm Solid Copper/Copper Clad Steel
Dielectric: 4.57+0.05mmFoam PE
Shield: Bonded Al Foil
Braid Coverage: 60%X16X4X0.16+0.005mmAl-Mag
Jacket: 6.90+0.05mmPVC
Jelly/APD: Per Customer' Special Requirement
Messenger: 1.13mm CCS or 1.30mm Steel
2) Characteristics
Sparker Test: 4000VAC
Impedance: 75+3 Ohm
Capacitance: 54+3pF/m
Velocity of Propagation: 85% (min)
Return Loss: 20dB min (5-2300MHz)
3) Attenuation
Attenuation [@68o F. (20o C. )]
Frequency (MHz) Maximum (dB/100 ft. ) Maximum (dB/100 m)
5 0.58 1.9
50 1.5 4.9
100 2.0 6.5
200 2.8 9.2
400 4.1 13.6
700 5.6 18.4
900 6.2 20.3
1000 6.5 21.4
1450 8.0 26.2
1800 8.5 27.9
2100 9.5 31.1
2250 10.0 34.0
3000 11.4 37.5
Jelly/APD: Per Customer' Special Requirement
Messenger: 1.15mm CCS or 1.30mm Steel
2) Characteristics
Sparker Test: 4000VAC
Impedance: 75+3 Ohm
Capacitance: 54+3pF/m
Velocity of Propagation: 85% (min)
Return Loss: 20dB min (5-2300MHz)
3) Attenuation
Attenuation [@68o F. (20o C. )]
Frequency (MHz) Maximum (dB/100 ft. ) Maximum (dB/100 m)
5 0.58 1.9
50 1.5 4.9
100 2.0 6.5
200 2.8 9.2
400 4.1 13.6
700 5.6 18.4
900 6.2 20.3
1000 6.5 21.4
1450 8.0 26.2
1800 8.5 27.9
2100 9.5 31.1
2250 10.0 34.0
3000 11.4 37.5
Double RG6 Dual Coaxial cable with messenger Detailed Selling Lead Description : 2(1.02 ± 0.02 mm Anneal Copper /4,57 ±0.10 mm Foamed PE / Bonded Al/Pet / 16*4*0.16mm60% AL Braiding / 6.80±0.10 mm White PVC )with Messenger 1.13mm CCS |
Options for material: |
