FTP/UTP CAT6 Patch Panel

Quantity:
Payment & Shipping Terms Supply Capacity
Trade Term: FOB Production Capacity: 10,000,000pcs / month
Payment Terms: L/C, T/T, WU Packing: Paper Box or According...
Min. Order: 100 Piece/Pieces Delivery Date: About 20 days.
Means of Transport: Ocean, Air, Land

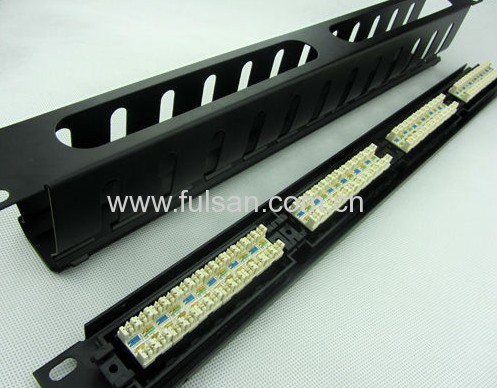

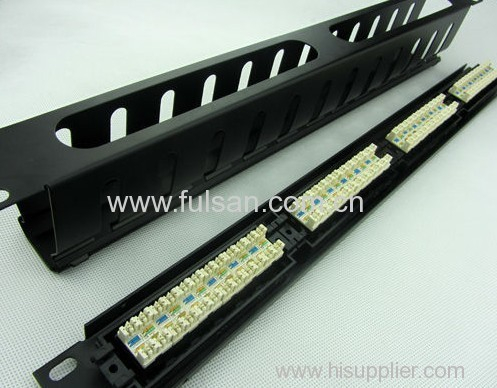

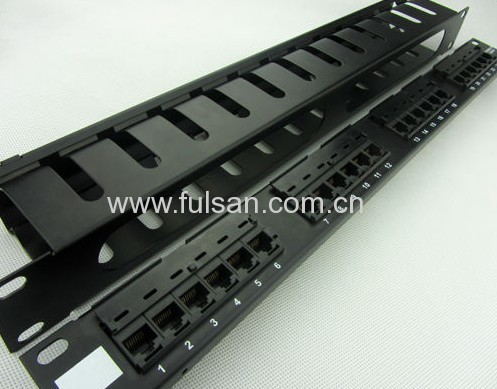

FTP/UTP cat6 patch panel

cat5e/cat6 24p/48port

UTP/FTP patch panel
(network panel,wiring block)


Meet ISO/IEC 11801, TIA/EIA568
Own patent products
PCBunitary type
Have connector & cable management, convient for usingHigh-quality guranteed!
High-quality guranteed!
Fit for wires AWG22-26
Plug omsertopm life 200 cycles
Plug insertion life 750 cycles Min
Dielectric strength: When applied AC 750V or DC 1000V 1 minute between adjacent terminal NO change
Material: Using PC/ABS for cover, PC for module, phosphor bronze for IDC wire post
Dual IDC

Item No. Description
P197-12P 19" . 1u, 12 ports
P197-18P   19" . 1u, 18 ports
P197-24P   19" . 1u, 24 ports
P197-48P   19" 2u, 48 ports

UTP/FTP patch panel

(network panel,wiring block)

Main Description of The Product:

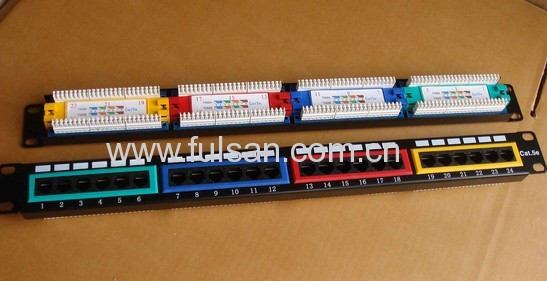

1.  24 ports patch panel, Cat.5e FTP type. The structure of each port of this patch
     panel is same which makes sure that the performance of each port is consistent.
2.  The outstanding shielding effect. The cabel management and grounding device are
     combined in this patch panel. All kinds of cables with different dimensions can
     be fixed on the patch panel. The shielding foil of the cables and the grounding
     device of the patch panel can be connected availably.
3.  According to the standard of ISO/IEC 11801:2002 CLASS D and ANSI/TIA/EIA/568B
     Cat.5e standard. T568A punching sequence and T568B punching sequence are both
     compatible. Fitting for horizontal distribution in the equipments room and
     equipments connecting.
4.  Connecting: FCC port for Cat.5e STP patch cord and IDC for horizontal distribution cables.
5.  Compatibility: Compatible for FTP Cat.5e general cable distribution systems.

Technique Characteristics:
1.  Entire high-carbon steel outer frame, with plastic powder cladding.
2.  RJ45 jack frame material: PBT, golden plated phosphor bronze pins, Shielding shell
     of the RJ45 jack: Brass housing with nicket-plated; IDC clip: Tinned phosphor
     bronze pins.
3.  Fitting for 22AWG/23AWG/24AWG cables, punching duration: 250 times. FCC ports inserting duration: 750 times.
4.  Cabling sequence: T568A & B.
5.  Punching tool: Standard LSA tool.
6.  Testing condition of transmitting capability: 100MHz


Category: Patch Panel
