FTP/UTP Cat5e Patch Panel with UL Approval

Quantity:
Payment & Shipping Terms Supply Capacity
Trade Term: FOB Production Capacity: 10,000,000pcs / month
Payment Terms: L/C, T/T, WU Packing: Paper Box or According...
Min. Order: 100 Piece/Pieces Delivery Date: About 20 days.
Means of Transport: Ocean, Air, Land

Product Description

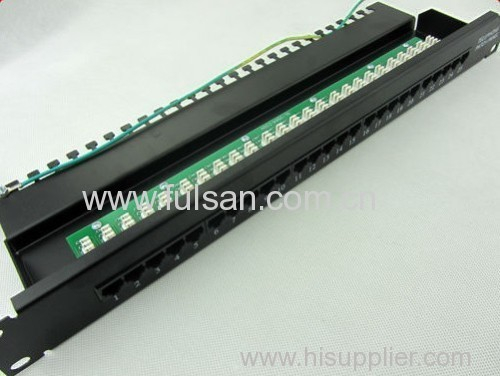

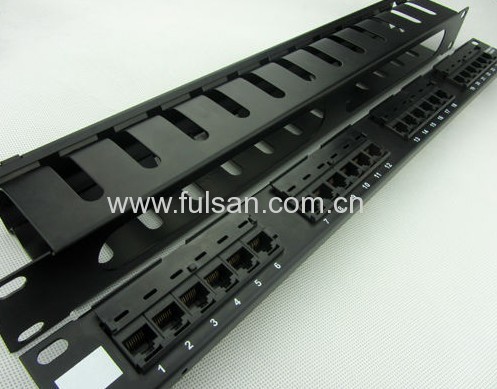

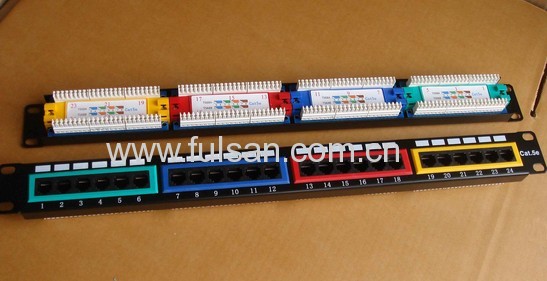

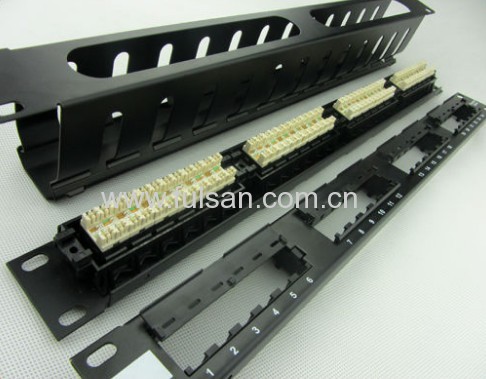

FTP/UTP Cat5e Patch Panel

Meet ISO/IEC 11801, TIA/EIA568B
Fit for wires AWG22-26
Plug omsertopm life 200 cycles
Plug insertion life 750 cycles Min
Dielectric strength: When applied AC 750V or DC
1000V 1 minute between adjacent terminal NO change
Material: Using PC/ABS for cover, PC for module, Phosphor bronze for IDC wire post

Specifications
1.12/16/18/24/48 ports patch panel
2. OEM, ODM available
3. ISO9001, RoHS, CE, FCC, UL, ETL
4, Size: 1U, 2U 19"
5.110 IDC patch panel

Patch Panel Discription:
Specifications:
Meet TIA/EIA-568-A and TIA/EIA-568-B Category 5E requirements.
Meet TIA/EIA TSB-40
Meet ISO/IEC Generic Cabling Standard 11801
Meet CENELEC Generic Cabling Standard EN50173

Electrical:
Angle: 90, 180 Degree

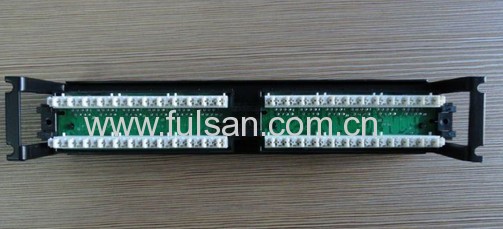

Termination: 110 Type
Current rating: 1.5 Amp Max.
Voltage rating: 150 Volts
Contact resistance: 20 m-ohm
Insulation Resistance: 500M-ohm
Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min

Materials:
Housing: PC UL94V-0
IDC: PC UL94V-0, Accept 22-26 AWG Solid Wire.
PCB: FR4 1.6mm(0.04") thickness, 2 layers
Contact: PC UL94V-0, 0.45mm(0.018") Diameter Phosphor bronze with 3 u"-50U" Gold plating on contact area.

Item No. Description

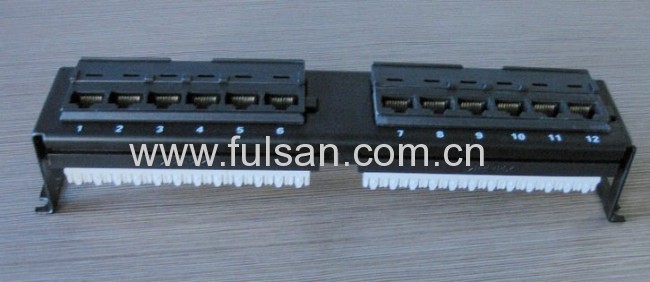

P197-12 19" . 1u, 12 ports
P197-18   19" . 1u, 18 ports
P197-24   19" . 1u, 24 ports
P197-48   19" 2u, 48 ports

Category: Patch Panel
