FTP cat5e cable for data transmission

Quantity:
Payment & Shipping Terms Supply Capacity
Unit Price: 27.0 USD Production Capacity: 10,000,000rolls/month
Trade Term: FOB,CFR,CIF,CIP Packing: Easy Pull Box or Drum
Payment Terms: L/C, T/T, WU Delivery Date: About 30 days
Min. Order: 50 Piece/Pieces
Means of Transport: Ocean, Air, Land

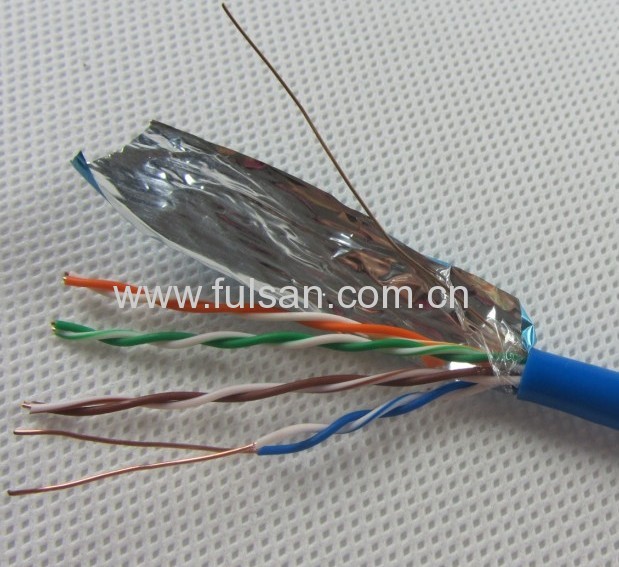

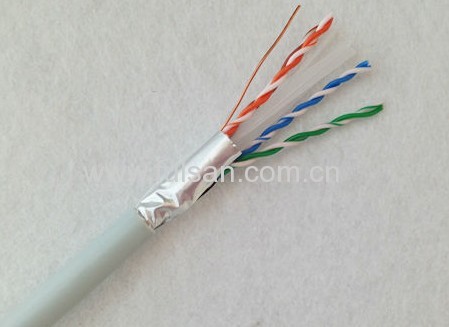

FTP CAT5e 0.50mm/0.51mm full copper cable


Conductive material: Made of 2.6mm soft annealed electrolytic copper.
Conductor diameter: 0.50mm/0.51mm, 24 AWG
Conductor insulation: HDPE.
Insulated conductor diameter: 0.95mm.
The cable jacket: PVC jacket


Mechanical Properties
Elongation: Min. 300%
Temperature Range: -40 up to +75 Celsius degree
Tensile strength: Min. 1.68kg/mm2

Electrical Properties(at 20 Celsius degree)
Conductor Resistance: Max. 9.38Ω /100m
Resistance Unbalance: Max. 2%
Insulation Resistance: Min. 150Ω /KM
Mutual Capacitance: Max. 5600pF/100m
Capacitance Unbalance Max. 330pF/100m
Impedance: 100+/-15 Ω
Spark Test: 2000V
Velocity of Propagation: 67%

Application:
100Base T4,
100Base-TX,
100VG-AnyLan,
1000 Base-T(Gigabit Ethernet),
155Mbps ATM, 622Mbps ATM
Confirm to UL requirements


100 MHz bandwidth high speed rj45 4pr 24awg copper cat 5e ftp networking cable.

Overview

  • High-Performance data cable ,application structured cabling, CCTV system , Alarm system , Telecom project etc.

  • Exceeds TIA/EIA-568B.2,ISO/IEC 11801 , ETL listed .

  • 100Base-TX,100Base-T2 and 100Base-T4 standard.

  • Can be used for voice, integrated service data network (ISDN).

  • Long transmission distance, small transmission loss, wear resistance, resistance to pressure.


Model CAT5E FTP Cable
Conductor Size 24AWG
0.48mm/0.49mm/0.5mm/0.51mm etc.
Conductor Material CCA/CCU/BC
Nuber Of Conductor 4P
Shield UTP/FTP
Flammability Grade CMP,CMX,CM,CMG,MPG,CMR,MPR
Insulation Material PE,HDPE,LSZH PE
Insulation Thickness 0.91mm
Jacket Material PVC, ROHS PVC, LSZH PVC
Outer Jacket Thickness 5.2mm
DC Resistance(Max.) 9.5Ω/100m
DC Resistance Imbalance 2.50%
Working Capacitance(Max.)

5.4nF/100m

Insulation Resistance 10000 MΩ.km
Transmission Velocity 65%
Operating Temperation -40 °C - +75 °C
PVC Jacket Color As client's request.
Marking On Jacket

On your request (Print your brand)





Category: Lan Cable
