FTP cat6 Network Cable With UL Complaint

Quantity:
Payment & Shipping Terms Supply Capacity
Unit Price: 24.0 USD Production Capacity: 10,000,000pcs/Month
Trade Term: FOB,CFR,CIF,CIP,FCA,EXW Packing: Drum or Easy Pull Box...
Payment Terms: L/C, T/T, WU Delivery Date: About 30 days
Min. Order: 50 Piece/Pieces
Means of Transport: Ocean, Air, Land

4 Pairs 23AWG Shielded FTP Cat6  networking Cable

1)23AWG Network Cable
2)Comply with UL and 11801, ISO/IEC ,TIA/EIA 568A/568B 23AWG,4prs BC

CAT6 FTP

4-Pair 23AWG CAT6 FTP Network Cable

Application

10Base-T4 100Base-TX 100Base-VG-ANYLAN 155MbpsATM 622 MbpsATM 1000Base-T 10GBase-T

Standard: According to ISO / IEC 11801 , EN50173 TIA / EIA 568-B .

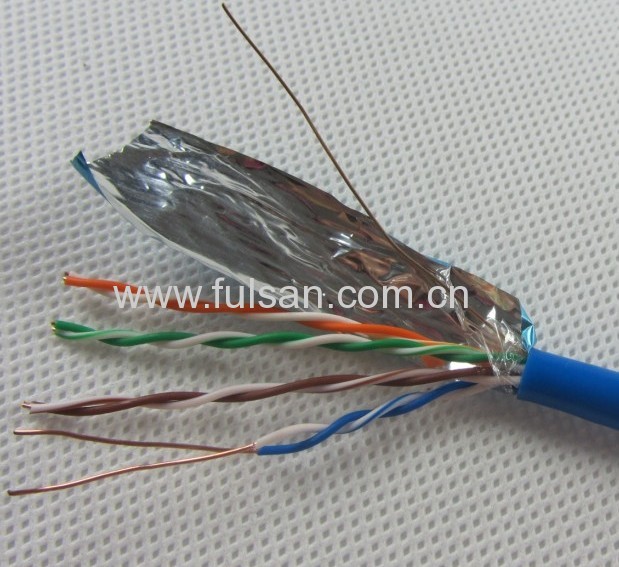

Construction Matrix


FTP

Conductor

23/24AWG Solid  Copper

Insulation

Polyethylene

Screen

Overall Aluminum
Screen

Drain Wire

7/0.2mm or 1/0.5mm

Outer Sheath

PVC/LSOH

Frequency : 1250MHz (common standard)

General Characteristic :

Characteristic Impedance :100±10

Nominal Velocity of Propagation : 68%
Maximum Mutual Capacitance : 5.6 nF/100m
Maximum Capacitance Unbal ance : 330pF/100m
Maximum DC Resistance : 7.5O/ 100m
Maximum Resistance Unbalance : 3%
Maximum Propagation Delay Skew: 30ns/100m ( 1-125MHz )
Maximum Propagation Delay: 536 ns/100m @ 100MHz
Minimum Bending radius: 10×cable outer diameter
Volta ge Rating : 60Vrms
Maximum Pulling load: 80N
Working Temperature (-20) (+60)
Storage Temperature: (-5) (+50)
Flame Retardancy : IEC 332-1( FRPVC &LSOH jacket )
IEC 332-1 & IEC 332-3C (FR LSOH jacket) .


FEATURES


TIA/EIA-568B.2-1;ISO/IEO 11801;NEC/CEC
Fire protection – IEC60332-1 (CM)
Cable is used for indoor installation


CONSTRUCTION


Conductor: Bare Solid Copper
Conductor Dia.:0.51mm±0.005mm (24AWG)
Pair Insulation:Polyethylene
Outer Cable Diameter: 5.7 ± 0.2 mm

Pair Identification: Pair1= Blue/White Pair2= Orange/White
                           Pair 3= Green/White Pair4= Brown/White
Outer Jacket: PE+PVC Compound Jacket
Jacket Color:Black Color

TECHNICAL CHARACTERISTICS


Installation Temperature: 0°C to +60°C
Operating temperature: -20°C to +75°C
DC Resistance Unbalance :5%
Pair-to-Ground Capacitance Unbalance :330 pF/100 m
Capacitance:14pF/ft nominal

Pulling strength: 130 N
Minimum bend radius: 4 outer cable diameters
Dielectric Breakdown:1000 Volts DC Conductor to Conductor
Velocity of Propagation:PE=65%
Maximum Skew:45ns@100 meters

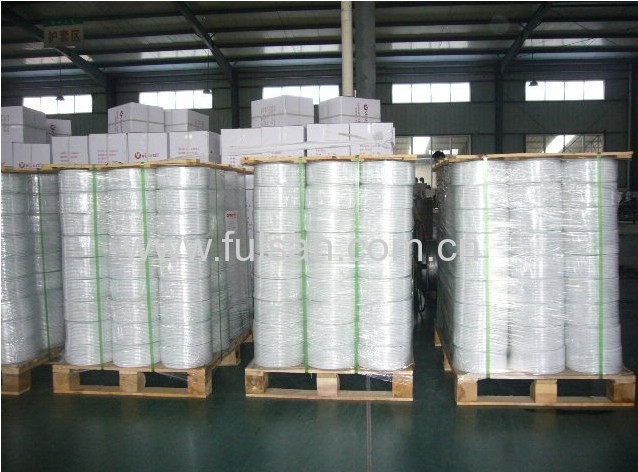

PACKAGING


305m/1000ft Easy pulling box; 500m/wooden reel;1000m/wooden reel
