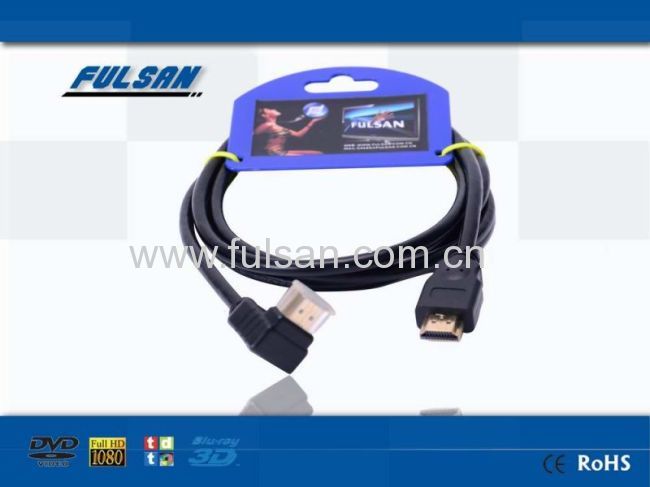

Gold Plated Right Angle HDMI Cable 1.5m 1.4v

Quantity:
Payment & Shipping Terms Supply Capacity
Trade Term: FOB Production Capacity: 10,000,000PCS/Month
Payment Terms: L/C, T/T, WU Packing: Clamshell packing or...
Min. Order: 1000 Piece/Pieces Delivery Date: About 30 days
Means of Transport: Ocean, Air, Land

Product Description

1. HDMI A 90° MALE TO A Type MALE.
2. Optional gold and nickel plating.
3. Suitable for 28AWG and 30AWG wire gauge.
4. HDMI supported uncompressed all-digital audio/video signal interface.
5. Pass 1080P and HDMI ATC test.
6. Meet the HDMI 1.4A: High speed HDMI cable.

1. Descriptions:

  • Latest Version 1.3v 1.4v & 2.0v

  • Fully compatible with HDMI 1.3b specification and Full HD Bandwidth: 10.2Gbps/340MHz

  • Version 1.4 For higher speeds, Deeper Color & Additional Color spaces (for supported devices)

  • Ethernet Capabilities (for supported devices)

  • 3D over HDMI (for supported devices)

  • Audio Return (for supported devices)

  • Supports Resolution up to 4k x 2k which is up to 4 times that of 1080P (for supported devices)

  • 28AWG (wire thickness) which is suitable for cables up to 10M in length

  • 24K Gold Plated connectors to ensure superior signal transfer and maximum performance

  • Transfer Digital Audio and Video signals at warp speed of 10.2 Gigabits per second!

  • Digital video doesn't get any better than this

  • Maximum reliability by triple shielding (2*foil and 1*metal-braid screen) and gold plated pins (10mu)

  • Large gauge PVC jacket provides maximum shielding against wear and tear and extreme

  • temperatures

  • Designed to meet all HDMI standards

  • Treble screened to provide complete immunity to environmental EMI and RFI

  • Oxygen Free Copper conductor

  • Tinned Copper Braid Shielding

  •



    2. Specifications

    Connector Type:

    HDMI male to HDMI male

    Connector Finish:

    Nickel or Gold

    Length:

    Up to 30meters

    Gauge:

    28AWG

    # of conductors:

    19Pin

    Conductor Plating:

    Tin

    Shielding level:

    Triple

    Shielding type:

    EMI

    Ferrite Cores:

    Yes

    HDMI connector Head Measures:

    20 x 11 x 37

    HMDI Connector Diameter:

    5.5mm, 7.3mm, 8mm

    Net Jacket:

    No

    Built-in Equalizer:

    No

    Supported Resolutions:

    480i to 4k x 2k

    Bandwidth:

    up to 340 Mhz   (10.2 Gbps)

    Deep Color:

    10-bit, 12-bit, and 3*16-bit (48-bit RGB or YCbCr) color depths. "x.v.Color™"

    HDMI Certified:

    Yes

    HDMI Spec:

    High Speed HDMI

    Category 2 Certified:

    Yes

    HDCP Compliant:

    Yes

    CEC Compliant:

    Yes

    ROHS Compliant:

    Yes

    Compatible with all Versions of HDMI:

    Yes

    Supports DVD Audio:

    Yes

    Supports SACD:

    Yes

    Supports TrueHD & DTS-HD:

    Yes

Category: HDMI Cable
