HDMI Cable 2.0 Optical Fiber HDMI 4k 60HZ Cable HDMI for HDR TV LCD Laptop PS3 Projector Compute

Quantity:
  • FS-Fiber hdmi 010

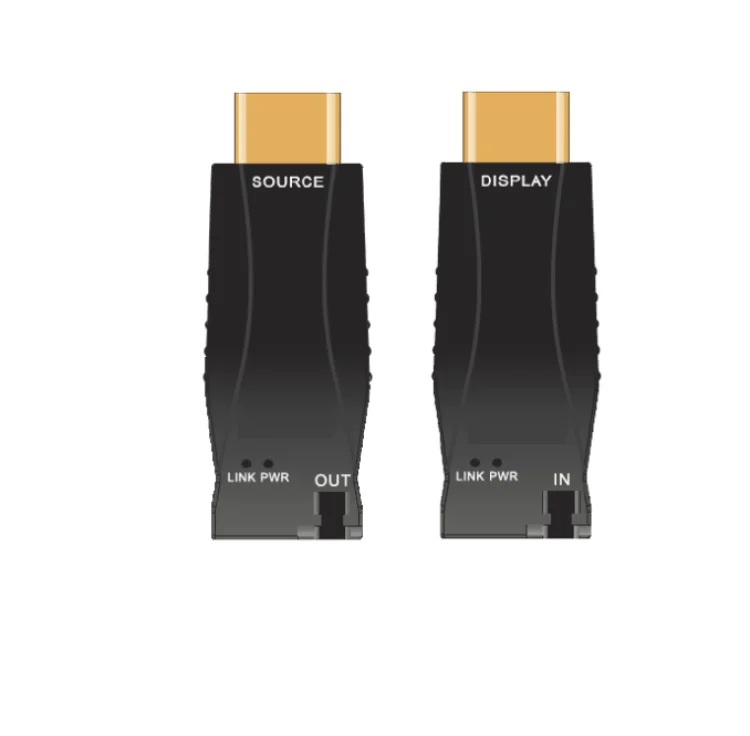

4K HDMI Fiber Optical Transmitter Receiver Up to 300m/984FT,with LC connector,Micro USB power supply

4K HDMI Fiber Optical Transmitter Receiver Up to 300m / 984FT with LC connector , Micro USB power supply

Product Description




Parameter

Specifications

Resolution

4k*2k 30Hz

3840x2160/30Hz (YUV 4:4:4)

4k*2k 60Hz

3840x2160/60Hz.(YUV 4:2:0)



Components



Laser Diodes in Tx Module

1310nm FP laser and 1550nm PIN PD

Photo Diodes in Rx Module

1550nm FP laser and 1310nm PIN PD

WDM filter

Integrated 1310nm/1550nm filter







Electrical







Input and Output Signals

TMDS Level (complying with DVI1.0)

Data Transfer Rate (Graphic Data)

Max. 3.4Gbps

Maximum Pixel Clock Frequency

340Mb/s

Maximum Video Bit Rate

10.3Gb/s

Total Jitter at the end of Rx output

Max. 309 ps

Skew inter-channels

Max. 6ns

Optical

Link Power Budget

Min 8.5dB

Mechanical

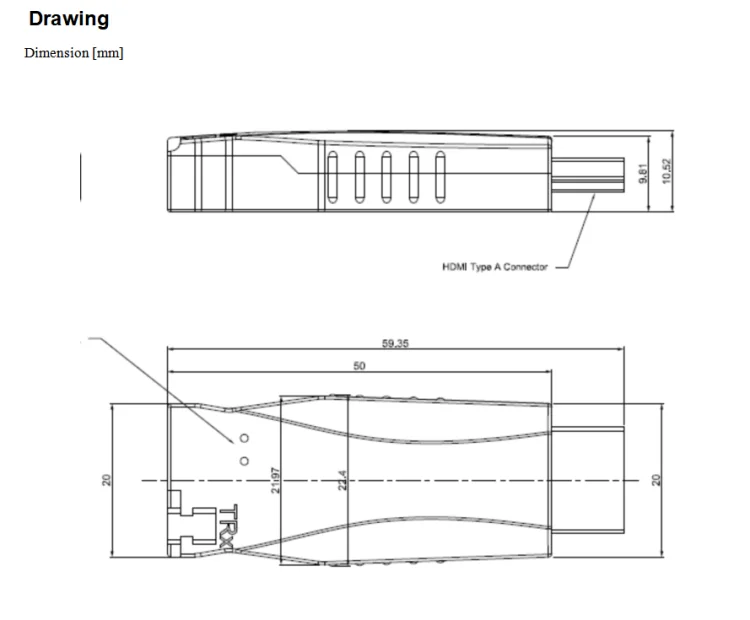

Module dimension (mm)

59.5LX20.0WX10.5H



Connector



Optical Connector

1X LC connector

Electric Connector

HDMI plug

Recommended Fiber

OM3 MM Fiber or Single-mode Fiber

Extend Distance

300m



Features:

1.Resolution up to 3840*2160/30Hz(Y:U:V 4:4:4);

2.Support resolution 3840*2160/30Hz(Y:U:V 4:2:0)

3.Extned the DVI data up to 300 meters over OM3 MMF or SMF Fiber;

4.Support HDCP;

5.Detachable feature with 1x LC OM3 MM Fiber or SM Fiber;

6.The modules are compact enough to directly plug to graphic sources and displays by adopting HDMI plugs;

7.Includes two (2) +5V DC power adapters for the transmitter and receiver ;

8.Micro USB-B power connector;

9.Data security with negligible RFI/EMI emissions and loss of video quality due to no copper conductor present ;

4K HDMI Fiber Optical Transmitter Receiver Up to 300m / 984FT with LC connector , Micro USB power supply4K HDMI Fiber Optical Transmitter Receiver Up to 300m / 984FT with LC connector , Micro USB power supply
