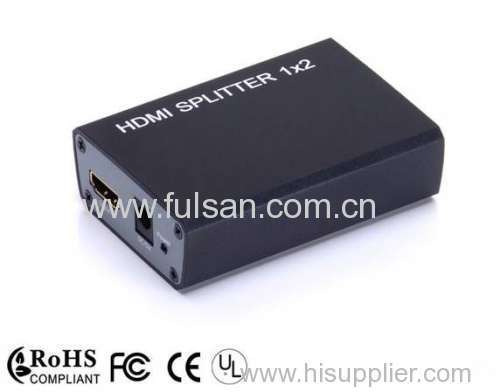

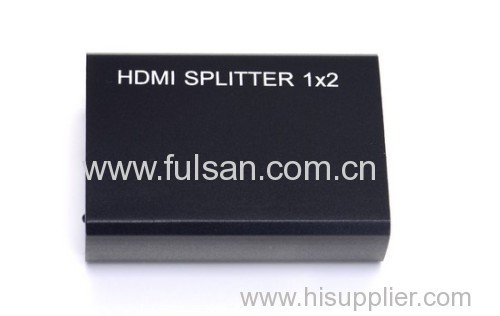

HDMI splitter 1x2 4K*2K 1.4V

Quantity:
Payment & Shipping Terms Supply Capacity
Unit Price: 9.99~49.9 USD Production Capacity: 30,000PCS/month

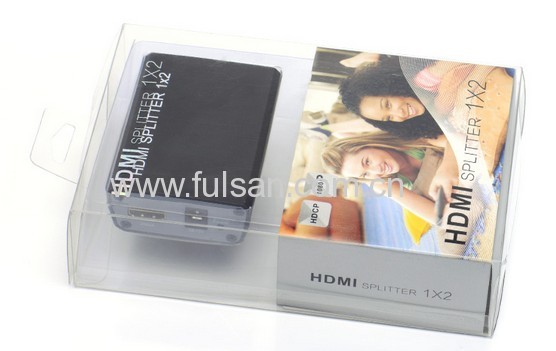

Trade Term: FOB Packing: Blister or Gift Box or...
Payment Terms: L/C, T/T, WU Delivery Date: About 15 days
Min. Order: 50 Piece/Pieces
Means of Transport: Ocean, Air, Land

1.HDCP 1080p 3D supported HDMI distributors 1 to 2,hdmi splitter 1X2
2.HDCP 1.2 protocol compliant
3.Support CEC

HDCP 1080p 3D supported HDMI distributors 1 to 2,hdmi splitter 1X2

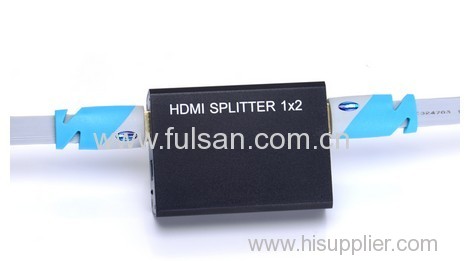

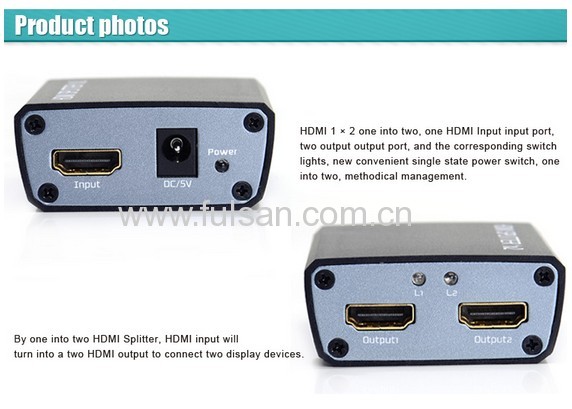

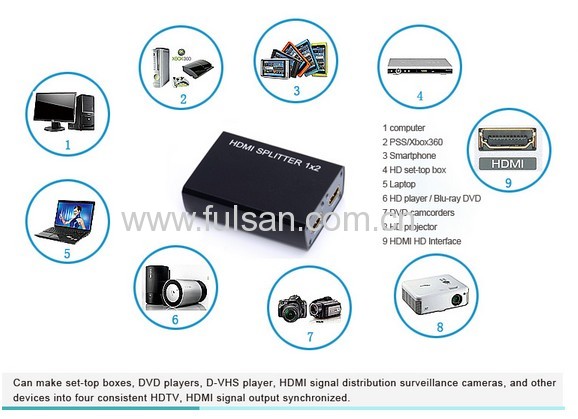

The 1x2 HDMI Splitter use a single HDMI source,accessing to multiple HDMI sinks.The Splitter allows one HDMI devices to be split easily to two HDMI compatible monitors or projectors. The Splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.

FEATURES:

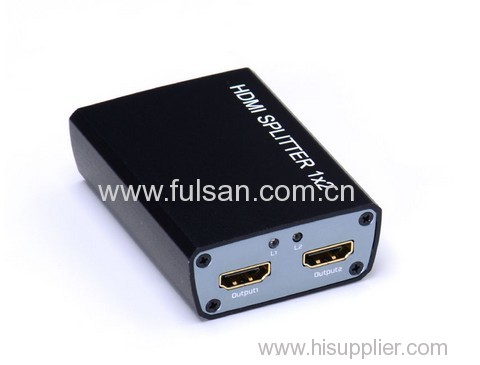

1.One HDMI input signal split to two HDMI sink devices
2.Support 3D
3.Support CEC
4.Support deep color 30bit, 36bit
5.Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
6.Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

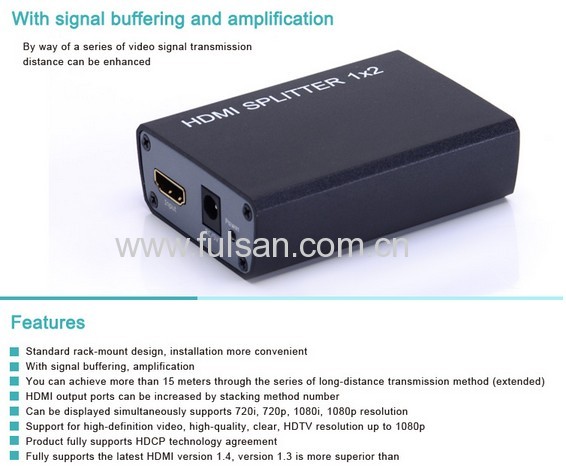

7.Support signal retiming
8.Support input up to 15metres AWG26 HDMI standard cable length,
output up to 25metres AWG26 cable length
9.No loss of quality
10.Installs in minutes

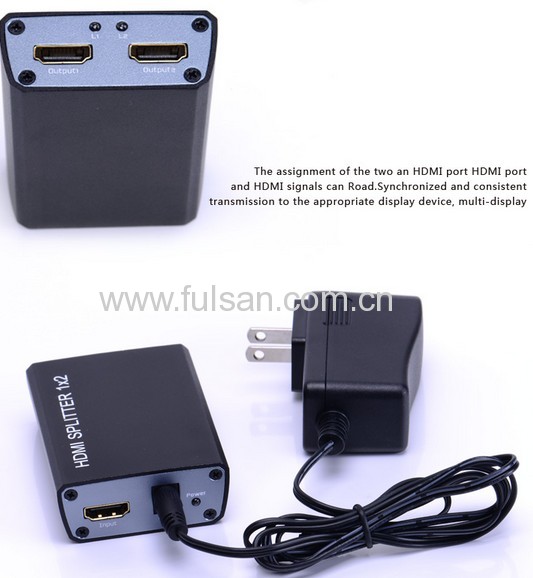

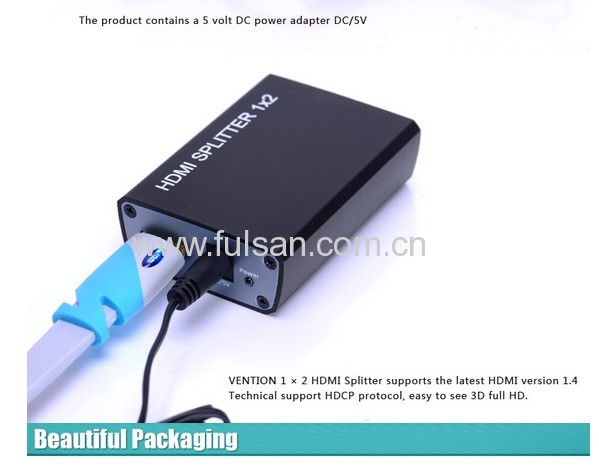

11.Need DC5V/1A power supply

Usage: Audio & video signals
Certificate: HDMI ATC Testing, UL, CE. RoHS
Export to: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

HDMI resolution 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format 24bit/deep color 30bit,36bit
Support audio format DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth 225MHz
Max  baud rate 6.75Gbps
Input/Output TMDS signal 0.5~1.5Volts p-p(TTL)
Input/Output DDC signal 5Volts p-p (TTL)
Input cable distance ≤15m AWG26 HDMI standard cable
Output cable distance ≤25m AWG26 HDMI standard cable
Max working current 500mA
Power adapter format Input AC (50HZ, 60HZ) :100V-240V; Output: DC5V/1A
Operating Temperature range  (-15 to +55°C)
Operating Humidity range 5 to 90%RH (No Condensation)
Dimension (L x W x H) 105X50X20mm
Weight 130g

Category: HDMI Splitter & HDMI Switch & HDMI Extender
