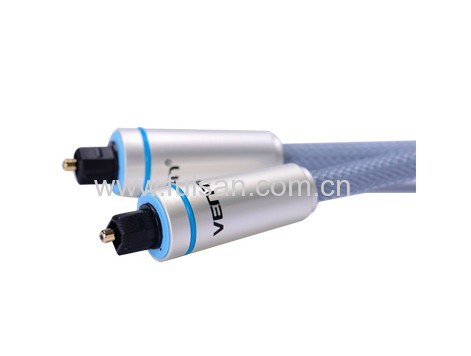

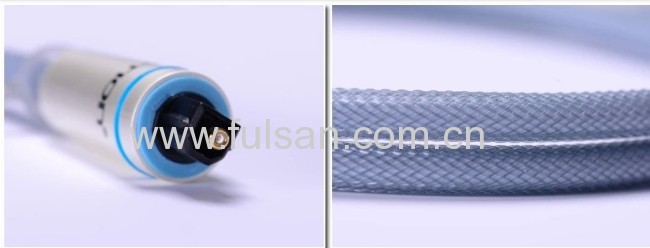

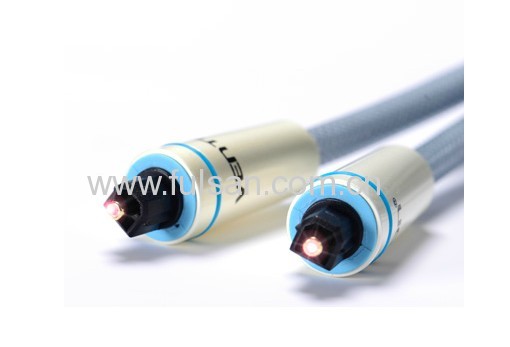

High Performance Digital Audio Optical Fiber Toslink Cable

Quantity:
Payment & Shipping Terms Supply Capacity
Trade Term: FOB Production Capacity: 10,000,000pcs/Month
Payment Terms: L/C, T/T, WU Packing: Clamshell packing
Min. Order: 500 Piece/Pieces Delivery Date: About 30 days
Means of Transport: Ocean, Air, Land

Metal toslink plug , optical fiber cord, audio system optic cable , toslink to toslink

Specifications
1.High Quality cable with superb flexibility characteristics,structural integrity
2.Highest level in bandwidth characteristic

Toslink To Toslink plug cable
Gold-plated connector
Low internal loss less than 0.2dB/m
ROHS Compliant


a.Fiber 1.0±0.05mm(PMMA)
b.Shield2.2±0.7mm(Shields material PE)
c.Shield+3.5PVC
d.Overall diameter2.2mm.4.0mm,5.0mm,6.0mm(PVC)
e.Nylon braid is provided for 5.0mm,6.0mm,7.0mm,8.0mm type
f.Colorfast electroplated connectors are available
g.Length 0.5M to 50M
h.The color of jacket can be custom-made

The high performance 5mm fiber optic TosLink cables offer the best protection against kinds and breakgae caused by moving equipment .
The ends are metal with built in grips to make them easier to in stall and remove.

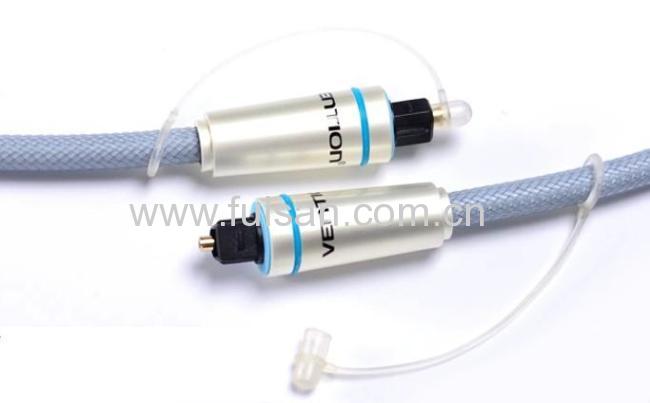

The protective covers for the ends are attached so they don't get lost .

compatible with :
Sony play station 2, Xbox, XBOX360,ALESIS
DVD player, CD player, SACD player, Divx player, DAT player/recorder, MINI Disc player/recorder,
Hard disk driver/recorder,Outboard AD/DA converter, SAT top boxes, cable boxes,
Audio receivers, Dolly Digital DTS Surround sound receiver, Digital receiver, satellite dish receiver,
Digital signal processor, Digital mixers,video game consoles,MP3 application.


Conductors Optical Fiber Cable
Insulation Outer Jacket with protective nylon sleeve.(color optional)
Connector 24K---Gold Plated
Connectors Metal shell or PVC Molding type ( Toslink )
Available Lengths 0.5m ~ 50m
Available Terminations MU, Toslink
Available Gauge OD:2.2/4.0/5.0/6.0/7.0/8.0mm
Certification RoHS, UL
FEATURES
1) Toslink Digital Audio Cable provides you the cleanest possible signal, even at extreme volume levels
2) There cables use 1mm low-loss core, low-jitter synthetic fiber and heavy metal connectors to dampen vibration
3) Optical cables transfer the signal using light; thus completely eliminating and chance for RFI,EMI or ground loop interference
4) The stylish PVC HEAVY 5.0mm JACKET helps prevent cable damage and adds flexibility and durability for years of listening pleaseure
5) MOULDED STRAIN RELIEFD reduce stress where cable and connectors meet
6) GOLD-PLATED FERRULE prevents corrosion and provides for maximum protection of the fiber tip
7) PRECISION POLISHED FIBER TIPS for maximum signal transfer(includes tip protectors)
8) Connect to your DVD,CD,MINI Disc,DAT other digital audio equipment for clear, full and richly detailed sound
9) Connectors: TOSLINK Male To TOSLINK Male
10) Designed for CD,D/A Converters, Dolby Digital DTS Surround Sound receivers,DVD,Min Disk players and recorders, Pro Audio cards, etc
ELECTRICAL
Quality Control Operation according to regulations & rules in ISO9001:2008
Mating Durability (500C) DC300V 5M ohm/10ms
Temperature Stability 0.3dB
Working Temperature -40~+85
Working Temperature -40~+85
PACKING
1) Bubble blister packing - higher price but more attractive
2) Premium slide blister packing - reasonable price
3) Gift box packing - eco - friendly
4) Polybag packing - low - cost, with card header and barcode number
