You are here: Home » Products » Electric Appliance » Extension Cord » High Quality 14AWG 16AWG USA spiral Power Cord to IEC C13
Share to:

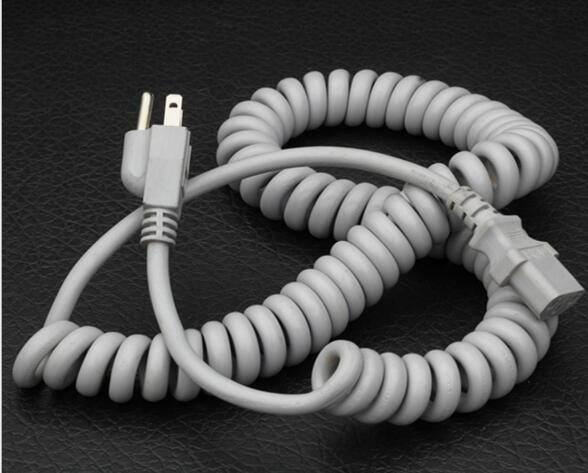

High Quality 14AWG 16AWG USA spiral Power Cord to IEC C13

Input: 100V-240V AC. 50/60Hz, 300mA
Output: 5.0V--3.1A (For USB * 2)
OFF Load: ≤ 0.5W
Plugs: US/EU/UK/AU plug
Charger weight: 87g / 3.1oz
Total weight: 150g / 5.29oz

Quantity:
  • Coiled Power Cord (FS-PC01)
  • Fulsan
  • 854442
  • 1m, 2m, 3m, 5m, 10m, 12m, 15m, 20m

OEM Manufacture customized 1.8m Sprial Coiled AC Power Cord AU/US/EU/UK

1)Plug:

AU/EU/US/UK plug to stripped end

2)Current: 16A/250V
3)Material: Environment-friendly PVC, TPE or TPU, copper
4)Certificate:

VDE,NF,IMQ,CEBEC,KEMA,DEMKO,NEMKO

5)Available cable:

H03VV-F 3G0.5~0.75mm²;H05VV-F 3G0.75~1.5mm²;
H05V2V2-F 3G0.75~1.5mm²;H05RN-F 3G0.75~1.0mm²;H05RR-F 3G0.75~1.5mm²;
H07RN-F 3G1.0~1.5mm²

6)Color:

Black/white or customized

7)Length: 1.8m or cusomized
8)Support: OEM/ODM service

Certificate:
1)CE,VDE,SAA and UL

Cable:
1)Material:PVC jacket,copper conductor and PP braiding.
2)Color:white,black,transperant or with colored braiding.
3)Core: 2 core and 3 core
4)Thickness:0.5mm2,0.75mm2,1.0mm2,1.5mm2
5)Shape:flat or round.
6)Rating voltage:230V(Euro) 250V(Aust) 125V(USA)

Plug:
1)Material:PVC body with copper fittings
2)Color:black/white/transparent/golden
3)Euro standard,Aust standard and USA standard


3A 5A 10A 13A 250V
H03VV-F 3x0.5-0.75MM2
H05VV-F 3x0.75-1.5MM2
H03RT-F 3x0.75-1.5MM2
H05RN-F 3x1.0-1.5MM2
Example: VDE H05RR-F, H05RN-F, H07RN-F

Color: Black
Cable:

14AWG*3C
16AWG*3C
SJTW/SJTOW/SJTOOW  SJT/SJTO/SJTOO

 Plug NEMA 5-15p
Rating: 15A 125V
Material: PVC,Copper
Cerfificates: UL/CUL


1)Plug:

AU/EU/US/UK plug to stripped end

2)Current: 16A/250V
3)Material: Environment-friendly PVC, TPE or TPU, copper
4)Certificate:

VDE,NF,IMQ,CEBEC,KEMA,DEMKO,NEMKO

5)Available cable:

H03VV-F 3G0.5~0.75mm²;H05VV-F 3G0.75~1.5mm²;
H05V2V2-F 3G0.75~1.5mm²;H05RN-F 3G0.75~1.0mm²;H05RR-F 3G0.75~1.5mm²;
H07RN-F 3G1.0~1.5mm²

6)Color:

Black/white or customized

7)Length: 1.8m or cusomized
8)Support: OEM/ODM service



specification

Conductor

Normal thickness of insulation
mm

Normal thickness of jacket
mm

Over diameter

mm

Max conductor resistance at 20°C
≤Ω/km

Ampere
rating
A

No. of core

normal cross-sectional area of conductor
mm 2
No. / Dia.
mm
1 1.5 30/0.25 0.8 1.4 5.8~6.7 13.3 27
2.5 49/0.25 0.9 1.4 6.5~7.2 7.98 37
4 56/0.30 1.0 1.5 7.6~8.5 4.95 47
6 84/0.30 1.0 1.6 8.5~9.5 3.30 52
2 1 32/0.20 0.8 1.3 8.2~9.1 19.5 17
1.5 30/0.25 0.8 1.5 9.1~10.1 13.3 21
2.5 49/0.25 0.9 1.7 10.9~12.4 7.98 30
2×4 56/0.30 1.0 1.8 12.9~14.8 4.95 39
3×6 84/0.30 1.0 2.0 14.7~16.6 3.30 51
3 3×1 32/0.20 0.8 1.4 8.9~9.9 19.5 12
3×1.5 30/0.25 0.8 1.6 9.8~11.1 13.3 18
3×2.5 49/0.25 0.9 1.8 11.7~13.4 7.98 26
3×4 56/0.30 1.0 1.9 13.8~15.7 4.95 34
3×6 84/0.30 1.0 2.1 15.7~17.6 3.30 43

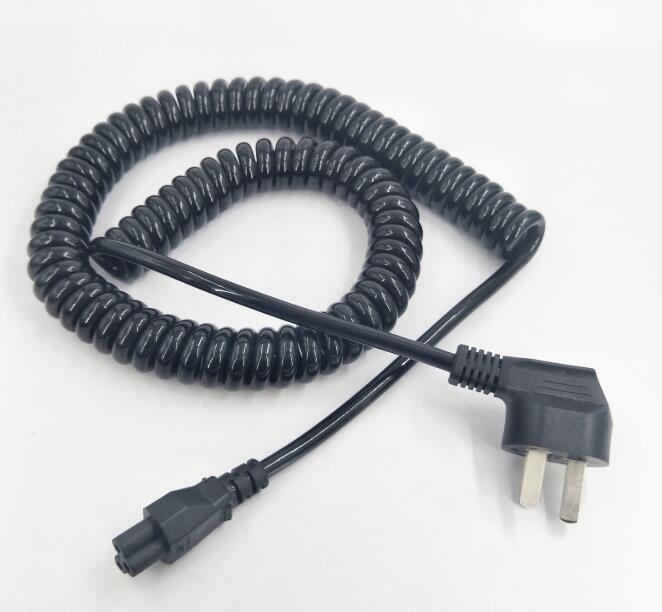

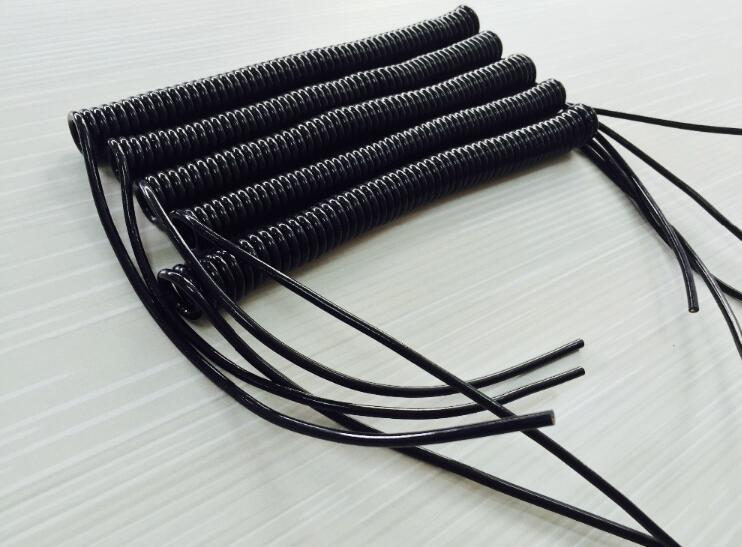

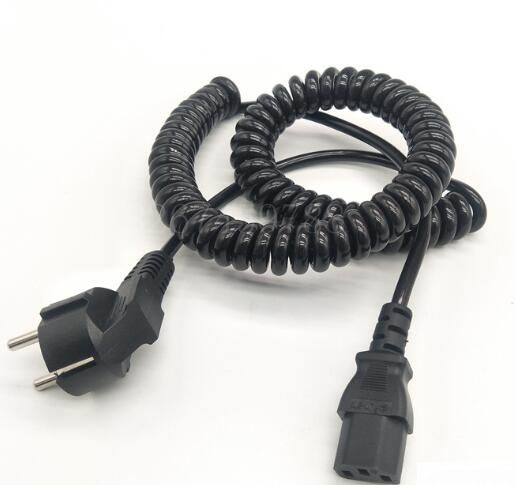

Coiled Power Cord 23Coiled Power Cord 1 - 副本Coiled Power Cord 25Coiled Power Cord 8
