High Quality 4 Pairs FTP cat5e cable

Quantity:
Payment & Shipping Terms Supply Capacity
Trade Term: FOB Production Capacity: 10,000,000pcs/Month
Payment Terms: L/C, T/T, WU Packing: Drum or Easy Pull Box...
Min. Order: 50 Rolls Delivery Date: About 30 days
Means of Transport: Ocean, Air, Land

Specifications

CAT5 FTP Cable
1) 0.50mm BC or CCA, Al foiled,steel messenger, solid or stranded
2) Standard: UL444, TIA/EIA568B, YD/T1019

We can produce various specification of LAN cable,network cable,including CAT5,CAT5e,CAT6, CAT6A



Type: cat5e FTP network cable, Lan cable

1) Specifications:

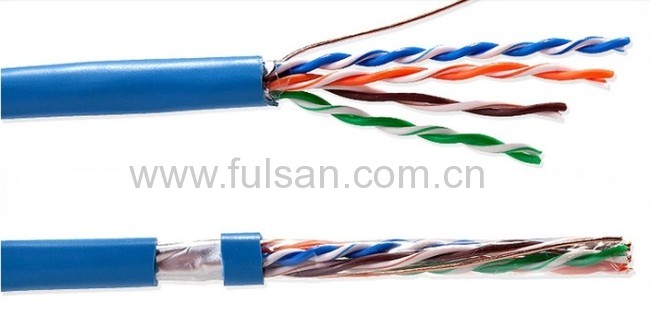

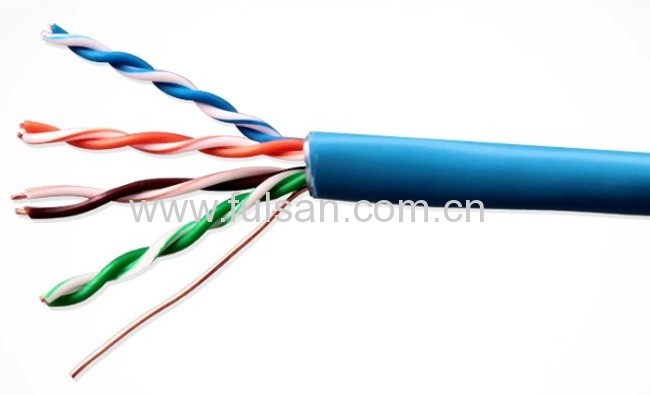

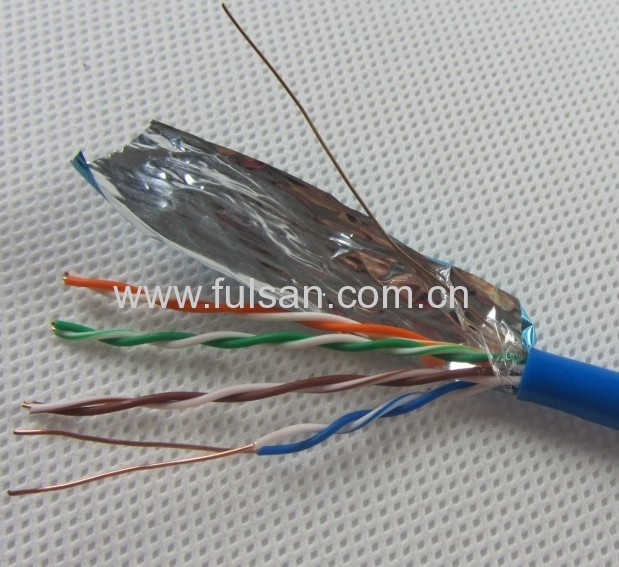

1)4Px24AWG BC/CCA/CCS Conductor+0.91mm PE Insulation+PE Tap+0.4mm BC/TC/CCA/CCS Drain wire+Al Foil+Rip Cord+6.2mm PVC Jacket

2) Customers' specifications are welcomed.



Note:

1)Rated Temperature: 60º C, 75º C

2) Center Conductor: BC, CCS, CCA.

3) Colour-coated PE insulation

4) Flammadbility Grade: CMX, CM, CMR,

5) PVC Rohs or LSOH jacket


 Electrical Specifications

  • DC resistance(Max.) 9.5Ω/100m

  • DC Resistance Imbalance(Average) 2.5%

  • Working Capacitance(Max.)5.4nF/100m

  • Insulation Resistance 10000MΩ.km

  • Transmission Velocity 65%

  • Operating temperation: -20°C~60°C

    Frequency

     (Mhz)

    ACR (dB)

    RL

    (dB)

    ATT

    (dB/100)

    NEXT

    (dB)

    PS.NEXT

    (dB)

    ELFEXT

    (dB)

    PS-ELFEXT

    (dB)

    0.772

    67.7

      20

    1.8

    67.0

    64.0

    66.0

    63.0

    1

    66.3

    20

    2.

    65.3

    62.3

    63.8

    60.8

    4

    55.2

    23.0

    4.1

    56.3

    53.3

    51.7

    48.7

    8

    49.0

    24.5

    5.8

    51.3

    48.8

    45.7

    42.7

    10

    46.8

    25

    6.5

    50.3

    47.3

    43.8

    40.8

    16

    42.1

    25

    8.2

    47.3

    44.3

    39.7

    36.7

    20

    39.5

    25

    9.3

    45.8

    42.8

    37.7

    34.7

    25

    36.9

    24.3

    10.3

    44.3

    41.3

    35.8

    32.8

    31.25

    34.2

    23.3

    11.7

    42.9

    39.9

    33.9

    30.9

    62.3

    24.4

    20.7

    17.0

    38.4

    35.4

    27.8

    24.8

    100

    16.3

    19

    22.0

    35.3

    32.3

    23.8

    20.8
