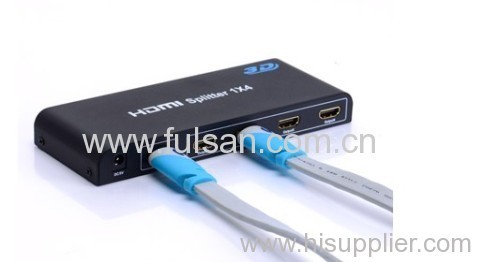

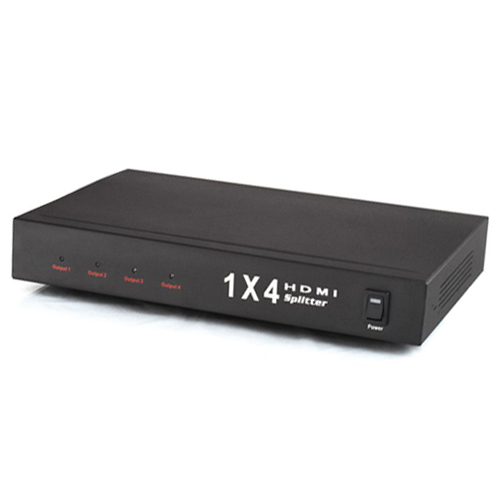

High Quality 4 ports Hdmi Splitter v1.3b & v1.4 Full HD 1080P
Model: SH-9009

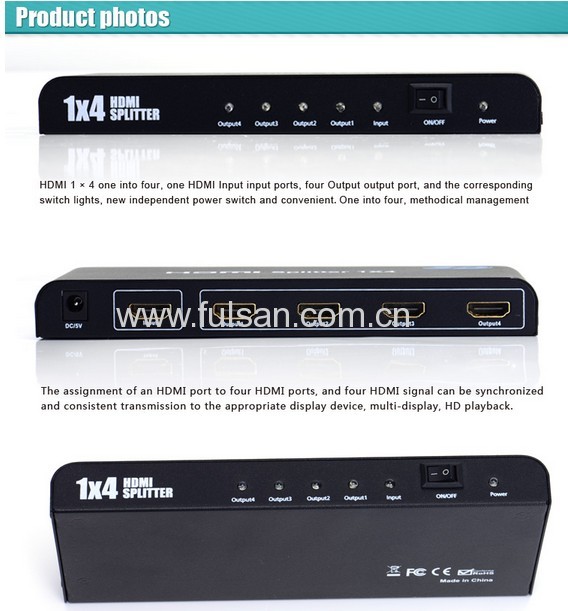

1 input 4 outputs,
HDMI V1.3b, V1.4, Full HD 1080P
Accessories: AC/DC Power adaptor, User's Manual
Packing: Color Gift Box

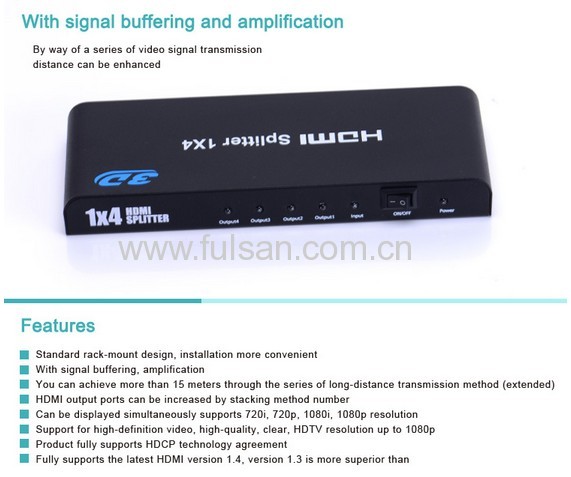

FEATURES
One HDMI input signal split to four HDMI sink devices
Support 3D
Support CEC
Support deep color 30bit, 36bit
Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Support signal retiming
Support input up to 15metres AWG26 HDMI standard cable length,
output up to 25metres AWG26 cable length
No loss of quality
Installs in minutes
Need DC5V/1A power supply
CONNECTING AND OPERATING:

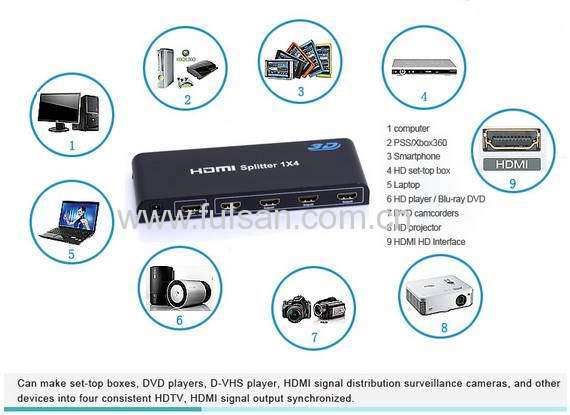

1. Connect one cable from HDMI source devices into HDMI Splitter input.
2. Connect one cable from each display (monitor or projector) into the HDMI Splitter outputs.

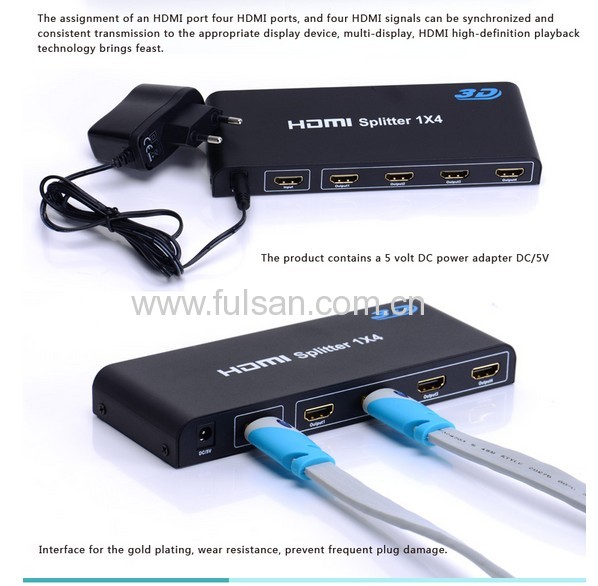

3. Connect 5V power supply to the HDMI 1x4 Splitter.
SPECIFICATIONS:
HDMI resolution ................24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format ........................24bit/deep color 30bit,36bit
Support audio format..........DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth...........................................225MHz
Max baud rate............................................6.75Gbps
Input/Output TMDS signal ..............................0.5~1.5Volts p-p(TTL)
Input/Output DDC signal ................................ 5Volts p-p (TTL)
Input cable distance..... ....................≤15m AWG26 HDMI standard cable
Output cable distance......................≤25m AWG26 HDMI standard cable
Max working current............................................600mA
Power adapter format..Input: ...........AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range.............................. (-15 to +55°C)
Operating Humidity range.....................5 to 90%RH (No Condensation)
Dimension (L x W x H) ...............................115x61x25 (mm)
Weight..................................................190g
Notes:
Pls use the machine as the instruction listed to keep the long use lifetime of the machine.
1. The machine should be placed at the spot far from the Damp, High-Temperature, Dusty, Erosive, and oxidative environment.
2. All parts will be free from the strong shake, hit, fall.
3. Touching the power adaptor with the wet hands is prohibited.
4. Pls hold the power adaptor head and do not pull the power cord when cut off from the socket.
5. Pls turn the power off when the machine is not used for long time.
6. Pls do not open the cover and do not touch the inside parts.
7. Pls use the original factory power adaptor.
Usage: Audio & video signals
Certificate: HDMI ATC Testing, UL, CE. RoHS
Export to: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Category: HDMI Splitter & HDMI Switch & HDMI Extender
