| Payment & Shipping Terms | Supply Capacity | ||
|---|---|---|---|
| Unit Price: | 0.25 USD | Production Capacity: | 10,000,000m/month |
| Trade Term: | FOB,CFR,CIF,EXW | Packing: | Plastic Reel or... |
| Payment Terms: | L/C, T/T, WU | Delivery Date: | About 30 days |
| Min. Order: | 5000 Meter | ||
| Means of Transport: | Ocean, Air, Land | ||

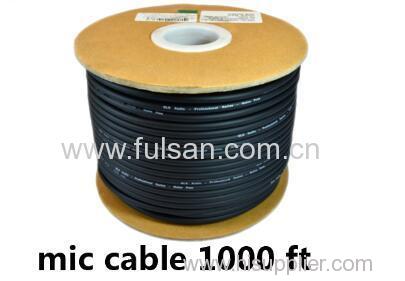

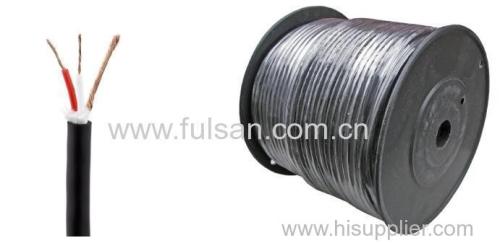

2 cores 4 cores Flexible Double Shield Microphone Cable

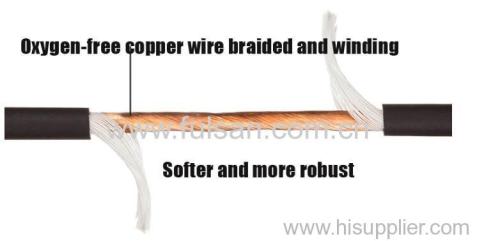

1. Conductor: Oxygen-free copper
2.jacket material: flexible pvc
3.OD:6.0mm
Microphone cable
1) Application: Used in microphone
2 ) Standard: AWG or according to customer'
3 ) Conductor: OFC/TCU/CCA/TCCA/CCS
4) Rated Voltage: Low
5) Jacket: A variety of colors transparent PVC & Colored PVC
6) Color: Red and Black, Clear, Yellow, Blue, etc or according to customer'srequest
7) Minimum order quantity: 5 kilometers
8) Price: FOB shanghai or Ningbo /C&F destination port
9) Payment: T/T or L/C
10) Lead Time: According to the detail quantity
11) Packing: plastic reel, Coils, wooden drum, carton
12) Sample: Free sample is available for you
13) Individual Service: can print your logo or brand name on cable

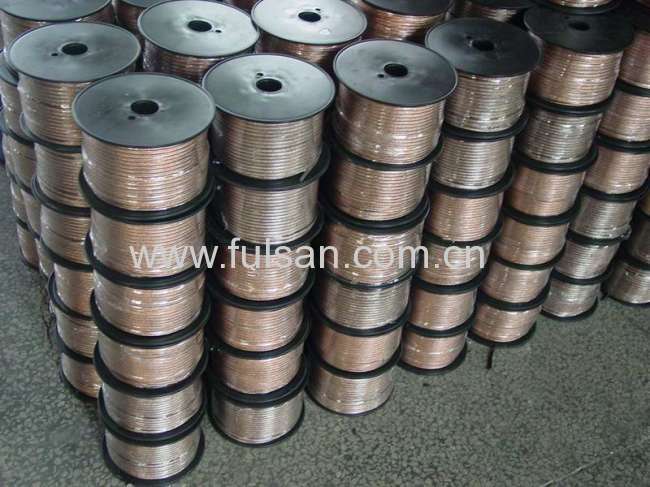

Packing Lengths: 100m/roll, 200m/roll, 305m/roll, 500m/roll.
Inner packing: Wooden reel, plastic reel, and paper reel.
Outer packing: Carton box, pull out box, pallet available.
Other packing available according to client's request

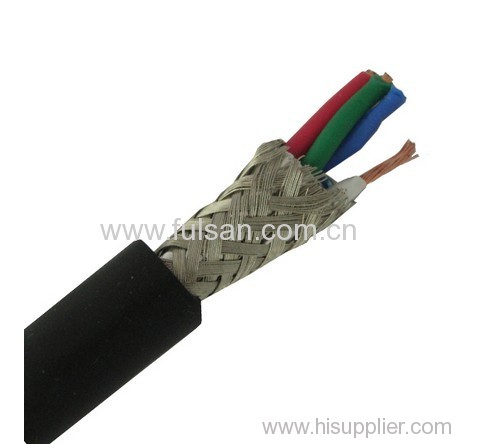

Overview
standed bare copper
pvc insulation
cotton thread or other filled
copper braid shield
flexible TPE sheathed
| No. of core | Conductor construction | Braid | Max. diameter of cable | |
| AWG | construction No./mm | mm | ||
| 1 | 26 | 10/0.12 | 32/0.12 48/0.12 64/0.12 or to client's require | 5.8 |
| 24 | 19/0.12 | 5.8 | ||
| 22 | 26/0.12 | 5.8 | ||
| 20 | 42/0.12 | 5.8 | ||
| 2 | 26 | 10/0.12 | 6.0 | |
| 24 | 19/0.12 | 6.0 | ||
| 22 | 26/0.12 | 6.0 | ||
| 20 | 42/0.12 | 6.0 | ||
| 3 | 26 | 10/0.12 | 6.0 | |
| 24 | 19/0.12 | 6.0 | ||
| 22 | 26/0.12 | 6.0 | ||
| 20 | 42/0.12 | 6.0 | ||
