| Payment & Shipping Terms | Supply Capacity | ||
|---|---|---|---|
| Unit Price: | 0.2 USD | Production Capacity: | 10,000,000m/month |
| Trade Term: | FOB,CFR,CIF,CIP | Packing: | Plastic Reel or... |
| Payment Terms: | L/C, T/T, WU | Delivery Date: | About 30 days |
| Min. Order: | 5000 Meter | ||
| Means of Transport: | Ocean, Air, Land | ||

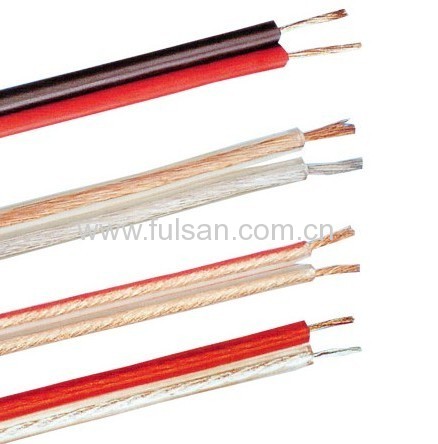

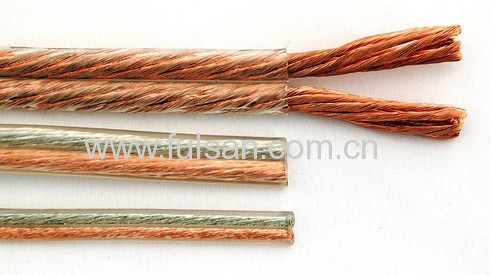

High Quality Double Shielded 2 Cores Speaker Cable
Features of 2 core speaker cable :
Speaker cable is installed in Wall, 12 gauge, 65/0.254mm or 87/0.22mm or 165/0.16mm, 2 cores, OD 7.8mm Jacket in black or other colors you required.

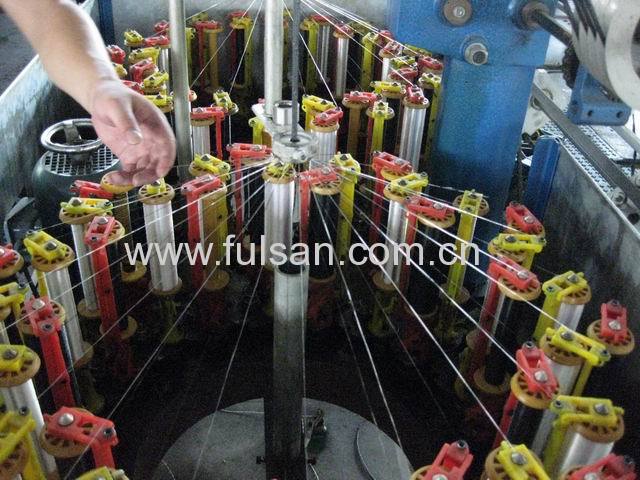

High Purity ,Tinned OFC , oxygen-free copper, CCS( Copper Clad Steel), CCA(Copper Clad Aluminum) Conductors. Multi-twist, rope lay braiding available.
UL CL2 , CL3 or FT4, FT6 rated PVC insulation and jacket .

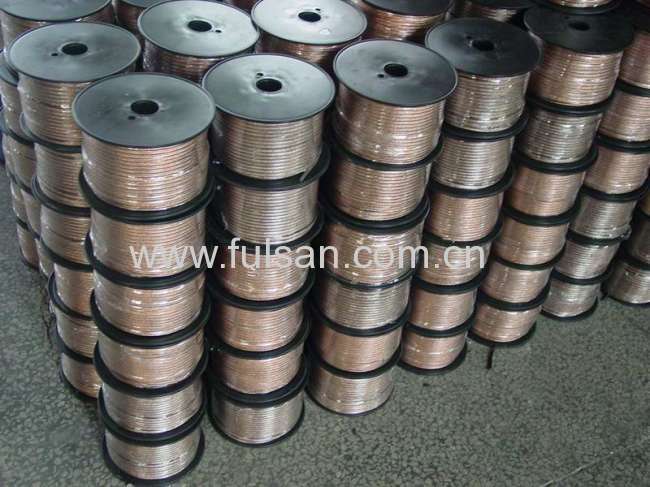

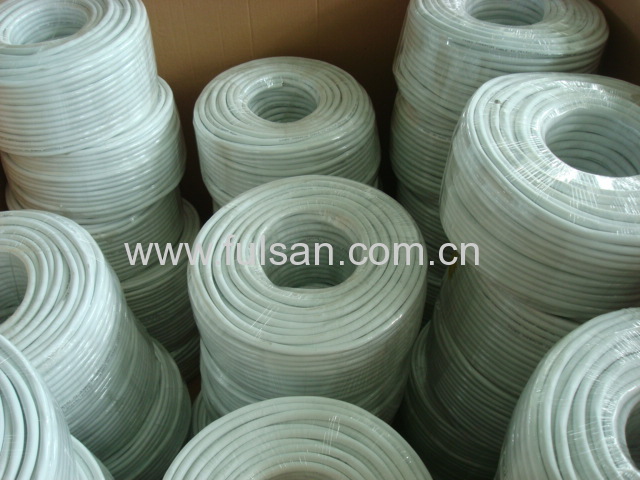

Spool, coil, blister, gift box, push box and other package per your requirement.
Perfect for using in or out of wall with a variety of speaker types including in-wall and in-ceiling.
Compatible with banana plugs.

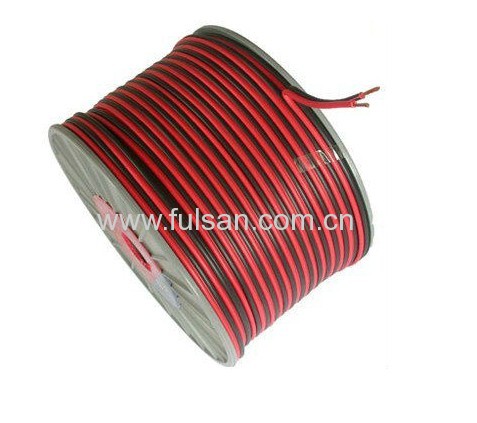

Clearly distinguishable Red and Black insulators for determining polarity.
OEM and ODM services are provided
| THE STRUCTURE LIST OF COLORED AUDIO & VIDEO CABLE | ||||
| SERIAL No. | DESCRIPTION AREA (m m2) | SPECIFICATION | OUTER Φ mm | WEIGHT (Kg/Km) |
| V-001 | 0.24 | 2*30/0.10 | 1.6*3.3 | 9 |
| V-002 | 0.4 | 2*50/0.10 | 1.8*3.6 | 13 |
| V-003 | 0.5 | 2*64/0.10 | 1.9*3.8 | 15 |
| V-004 | 0.6 | 2*80/0.10 | 2.1*4.3 | 19 |
| V-005 | 0.75 | 2*96/0.10 | 2.2*4.5 | 22 |
| V-006 | 0.8 | 2*100/0.10 | 2.3*4.5 | 22 |
| V-007 | 1 | 2*7*18/0.10 | 2.6*5.1 | 28 |
| V-008 | 1.5 | 2*7*27/0.10 | 2.9*5.8 | 38 |
| V-009 | 2 | 2*7*36/0.10 | 3.3*6.5 | 50 |
| V-010 | 2.5 | 2*7*46/0.10 | 3.5*7.1 | 61 |
| V-011 | 4 | 2*7*72/0.10 | 4.1*8.3 | 90 |
| V-012 | 6 | 2*7*110/0.10 | 5.0*10.1 | 135 |
| V-013 | 0.4 | 2*13/0.20 | 1.9*3.8 | 14 |
| V-014 | 0.5 | 2*16/0.20 | 2.0*4.0 | 16 |
| V-015 | 0.6 | 2*19/0.20 | 2.1*4.2 | 18 |
| V-016 | 0.75 | 2*24/0.20 | 2.2*4.5 | 22 |
| V-017 | 0.8 | 2*26/0.20 | 2.3*4.5 | 23 |
| V-018 | 1 | 2*32/0.20 | 2.4*4.8 | 27 |
| V-019 | 2 | 2*48/0.20 | 2.7*5.4 | 38 |
| V-020 | 2 | 2*64/0.20 | 2.9*5.9 | 48 |
| V-021 | 3 | 2*7*11/0.20 | 3.5*6.9 | 59 |
| V-022 | 4 | 2*7*18/0.20 | 4.1*8.2 | 90 |
| V-023 | 6 | 2*7*27/0.20 | 5.0*10.0 | 133 |
| THE STRUCTURE LIST OF COLORED AUDIO & VIDEO CABLE | ||||
| SERIAL No. | DESCRIPTION AREA(m m2) | SPECIFICATION | OUTER Φ mm | WEIGHT (Kg/Km) |
| V-024 | 20 | 2*41/0.12 | 1.9*3.9 | 16 |
| V-025 | 18 | 2*65/0.12 | 2.3*4.6 | 23 |
| V-026 | 16 | 2*7*15/0.12 | 2.8*5.6 | 15 |
| V-027 | 14 | 2*7*23/0.12 | 3.3*6.6 | 20 |
| V-028 | 12 | 2*7*37/0.12 | 3.9*7.7 | 26 |
| V-029 | 10 | 2*7*59/0.12 | 4.8*9.5 | 39 |
| V-030 | 8 | 2*7*95/0.12 | 5.7*11.4 | 182 |
