High Speed HDMI 90 Degree Cable

Quantity:
Payment & Shipping Terms Supply Capacity
Trade Term: FOB Production Capacity: 1000000PCS/Month
Payment Terms: L/C, T/T, WU Packing: Clamshell packing
Min. Order: 500 PCS Delivery Date: 30 days
Means of Transport: Ocean, Air, Land

Product Description

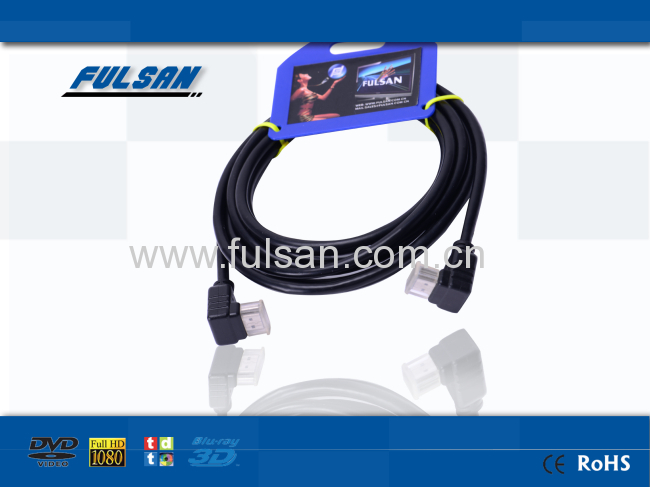

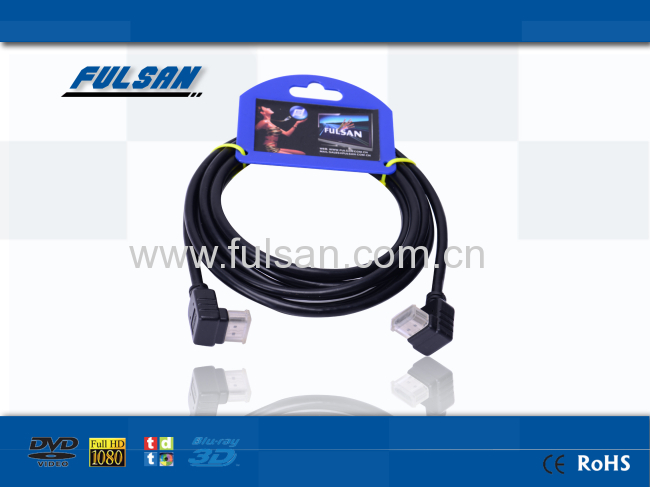

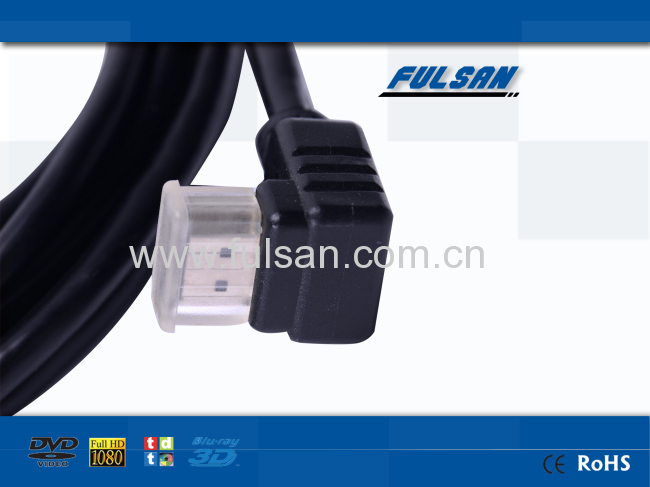

  1. HDMI A 90° MALE TO A 90 ° Type MALE.
    2. Optional gold and nickel plating.
    3. Suitable for 28AWG and 30AWG wire gauge.
    4. HDMI supported uncompressed all-digital audio/video signal interface.
    5. Pass 1080P and HDMI ATC test.
    6. Meet the HDMI 1.4v & 2.0v: High speed HDMI cable.

    HDMI to HDMI Cable((HDMI 1.4V & 2.0V Cable, 1080P, 3D, Ethernet)
    2 X HDMI 19-pin, male connectors, version 1.4 & 2.0V
    Gold plated connectors
    With nylon protection layer protect cable from abrasion
    Digital transfers at rates up to 10.2Gbps
    High purity oxygen free copper conductor
    All materials conform to RoHS standard of Europe

    Features:
    A premium quality V1.4 & 2.0 HDMI to HDMI cable is suitable for use in HDTV, home theater, DVD player, projector, PS3, xBox360, and other HDMI devices
    24K gold plated connector resists corrosion and ensures an optimum connection for maximum signal transfer
    High pure oxygen free copper conductor for maximum conductivity and reliability
    High density triple shielding for maximum rejection of EMI and RFI
    Compatible with multiple audio formats from stereo to multichannel sound
    Transfer digital audio and video signals at warp speed of 10.2GB per second

    Electrical:
    100% open and short test
    Voltage: 300V DC, 5MΩ /10ms
    Insulation resistance: 10MΩ Minimum
    Contact resistance: 2Ω Maximum
    Working temperature: -25 to 80 degree Celsius

Item High Speed HDMI cable with ethernet
Connector Full 19pin HDMI port 24k gold plated
Connector type Type A
Plug mould PVC injection mould, bi-color mould, metal shell mould
Gender Male
conductor Full oxygen-free pure copper
Wire gauge AWG24, AWG26, AWG28, AWG30
Cable jacket PVC
Support 1080P, 3D, ethernet, 4K, audio return channel
Application HDTV, DVD player, set top box, xbox360, ps3, satellite, home studio^
Packing 1. Polybag, blister packaging etc

2.According to customers.

Category: HDMI Cable

Related Category: Power Strip  Network Tool  Wifi Dongle  HDMI Splitter & HDMI Switch & HDMI Extender  Network Cabinet

Payment & Shipping Terms Supply Capacity
Trade Term: FOB Production Capacity: 1000000PCS/Month
Payment Terms: L/C, T/T, WU Packing: Clamshell packing
Min. Order: 500 PCS Delivery Date: 30 days
Means of Transport: Ocean, Air, Land

Product Description

  1. HDMI A 90° MALE TO A 90 ° Type MALE.
    2. Optional gold and nickel plating.
    3. Suitable for 28AWG and 30AWG wire gauge.
    4. HDMI supported uncompressed all-digital audio/video signal interface.
    5. Pass 1080P and HDMI ATC test.
    6. Meet the HDMI 1.4v & 2.0v: High speed HDMI cable.

    HDMI to HDMI Cable((HDMI 1.4V & 2.0V Cable, 1080P, 3D, Ethernet)
    2 X HDMI 19-pin, male connectors, version 1.4 & 2.0V
    Gold plated connectors
    With nylon protection layer protect cable from abrasion
    Digital transfers at rates up to 10.2Gbps
    High purity oxygen free copper conductor
    All materials conform to RoHS standard of Europe

    Features:
    A premium quality V1.4 & 2.0 HDMI to HDMI cable is suitable for use in HDTV, home theater, DVD player, projector, PS3, xBox360, and other HDMI devices
    24K gold plated connector resists corrosion and ensures an optimum connection for maximum signal transfer
    High pure oxygen free copper conductor for maximum conductivity and reliability
    High density triple shielding for maximum rejection of EMI and RFI
    Compatible with multiple audio formats from stereo to multichannel sound
    Transfer digital audio and video signals at warp speed of 10.2GB per second

    Electrical:
    100% open and short test
    Voltage: 300V DC, 5MΩ /10ms
    Insulation resistance: 10MΩ Minimum
    Contact resistance: 2Ω Maximum
    Working temperature: -25 to 80 degree Celsius

Item High Speed HDMI cable with ethernet
Connector Full 19pin HDMI port 24k gold plated
Connector type Type A
Plug mould PVC injection mould, bi-color mould, metal shell mould
Gender Male
conductor Full oxygen-free pure copper
Wire gauge AWG24, AWG26, AWG28, AWG30
Cable jacket PVC
Support 1080P, 3D, ethernet, 4K, audio return channel
Application HDTV, DVD player, set top box, xbox360, ps3, satellite, home studio^
Packing 1. Polybag, blister packaging etc

2.According to customers.

Category: HDMI Cable

Related Category: Power Strip  Network Tool  Wifi Dongle  HDMI Splitter & HDMI Switch & HDMI Extender  Network Cabinet
