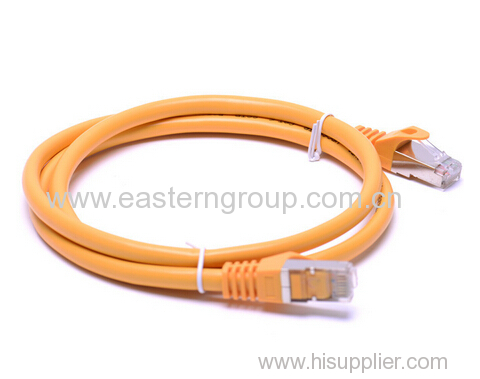

High frequency SSTP CAT6a Networking Cable/Pass Fluke Test

Quantity:

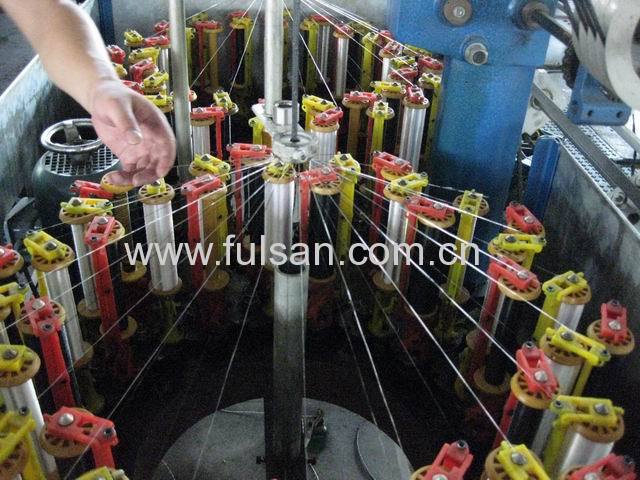

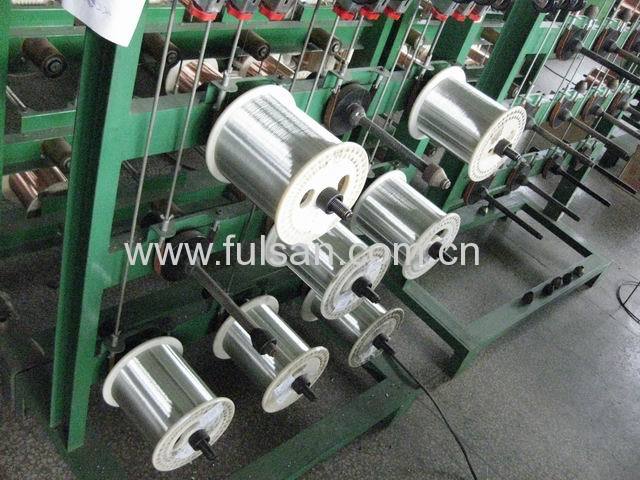

Payment & Shipping Terms Supply Capacity
Unit Price: 0.5 USD Production Capacity: 10,000,000pcs / month
Trade Term: FOB,CFR,CIF,CIP,FCA,EXW Packing: Blister or Polybag or...
Payment Terms: L/C, T/T, WU Delivery Date: About 30 days
Min. Order: 500 Piece/Pieces
Means of Transport: Ocean, Air, Land

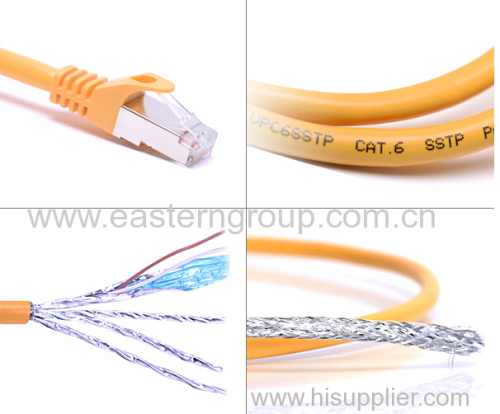

0.57mm 23 AWG,High Speed SSTP cat6A Patch Cord Cable with UL complaince



1x 4 PAIRES SOLID COPPER (100% COPPER) AWG23 100 OHMS LSZH

GREEN LSZH JACKET(RAL 6018)



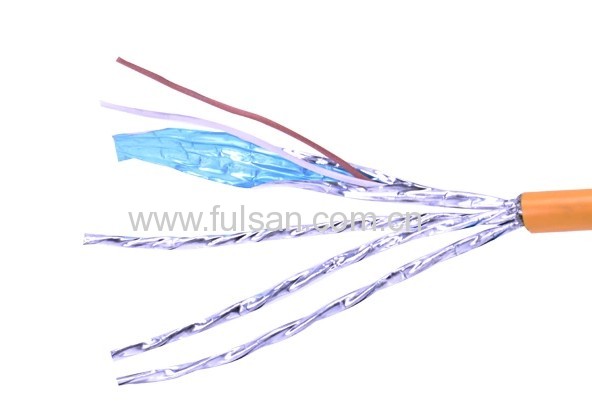

Each pair must be Aluminum foiled separately

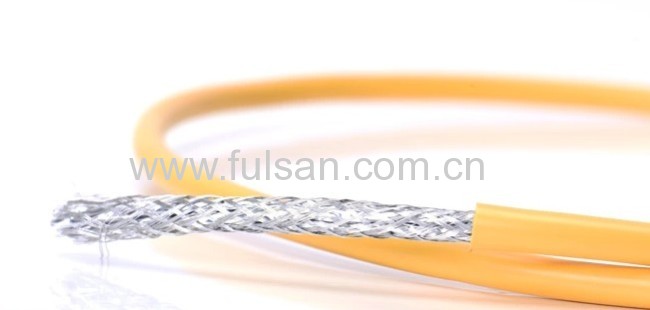

Overall shielding with Aluminum foil, tinned copper drain wire



500M/WOOD DRUM

WOODEN PALLET PACKAGE



OEM order is welcome



· Includes:

BC conductor

F-PE insulation

Twisted pair screen

Drain wire

Overall screen

Rip cord

PVC sheath



·  Conductor:

 Material: solid bare copper

 Number of pairs: 4 pairs

 AWG: 24

Conductor diameter: 0.575 ±0.003mm



·Insulation:

Material: F-PE

Diameter: 1.35 ±0.005mm

Average thickness: 0.3875mm

 Minimum point thickness: 0.3870mm

Twisted pair screen: AL foil (25%)

Drain wire: Ø0.4mm TC

Overall screen: AL foil (25%)

Jacket rid cord: optional


 · Sheath:

Material: PVC or LSOH

Nominal diameter: 8.5 ±0.2mm

Average thickness: 0.65mm

Minimum point thickness: 0.645mm

Operating temperature: -20 to 75°C

Minimum bend radius (install): (OD) 8mm

Flame test: CMX, CM, CMR and IEC60332-1

1)       Cat5e patch cord:

Cable

Cat.5e UTP or FTP cable

Jacket

PVC/LSZH jacket

Wire

4*2*AWG24/26, Twisted Pair

Plug

RJ45 Gold plating from FU" to 50U"

Transmission

It supports data transmission to 100MHz



2)       Cat6 patch cord:

Cable

Cat.6 UTP or FTP cable, with Cross inside

Jacket

PVC/LSZH jacket

Wire

4*2*AWG24/26, Twisted Pair

Plug

RJ45 Gold plating from FU" to 50U"

Transmission

It supports data transmission to 250MHz



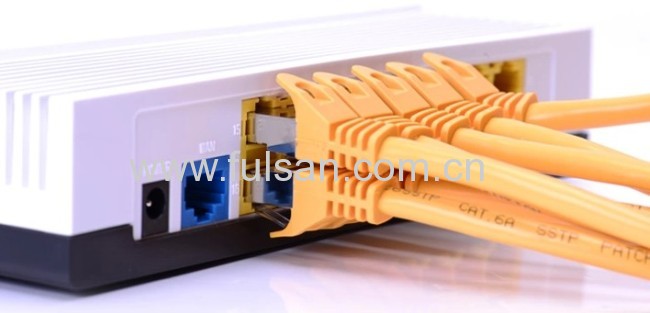

3)       Cat6A patch cord:

Cable

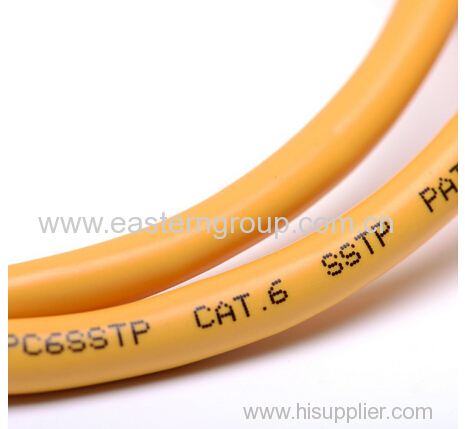

Cat.6A SSTP(PiMF) cable

Jacket

PVC/LSZH jacket

Wire

4*2*AWG26, Twisted Pair

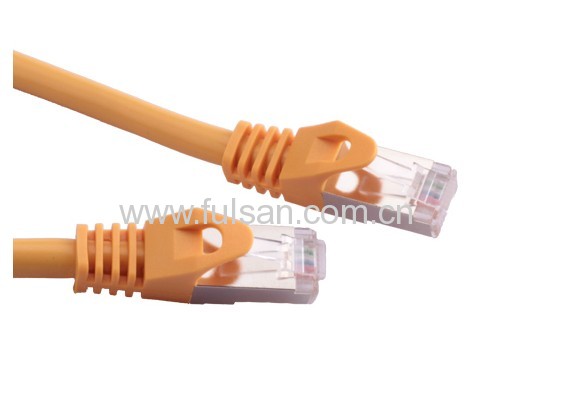

Plug

RJ45 50U" Gold plating

Transmission

It supports data transmission to 500MHz


ELECTRICAL PROPERTIES

Conductor Resistance

Max. 138 ohms/km at 20°C

Insulation Resistance

Min. 5000 mega ohms-km at 20°C

Dielectric Test

1000V DC /1 min ; No Breakdown

Temperature Rating

75°C

Voltage Rating

30V

f
(MHZ)

Zin-OS
(Ohm)

Fitted Z
(Ohm)

SRL
(dB)

ATT(PATCH)
(dB/100M)

DELAY
(ns/100M)

MAX. DELAY SKEW(ns/100M)

NEXT
(dB)

PSNEXT
(dB)

0.772

100±15

100±15

19.40

1.8

574.97

45.0

67

64

1

20.00

2

570

45.0

65.3

62.31

4

23.00

4.1

552.00

45.0

56.3

53.28

8

24.50

5.8

546.73

45.0

51.8

48.77

10

25.00

6.5

545.38

45.0

50.3

47.31

16

25.00

8.2

543.00

45.0

47.3

44.25

20

25.00

9.3

542.05

45.0

45.8

42.8

25

24.30

10.4

541.20

45.0

44.3

41.35

31.25

23.60

11.7

540.44

45.0

42.9

39.89

62.5

24.30

10.4

541.20

45.0

44.3

41.35

100

23.60

11.7

540.44

45.0

42.9

39.89

250

23.60

11.7

540.44

45.0

42.9

39.89

350

24.30

10.4

541.20

45.0

44.3

41.35

500

23.60

11.7

540.44

45.0

42.9

39.89

550

21.50

17

538.55

45.0

38.4

35.38

600

20.10

22

537.60

45.0

35.3

32.31
