| Payment & Shipping Terms | Supply Capacity | ||
|---|---|---|---|
| Unit Price: | 27.0~60.0 USD | Production Capacity: | 10,000,000rolls/month |
| Trade Term: | FOB | Packing: | Easy Pull Box or Drum |
| Payment Terms: | L/C, T/T, WU | Delivery Date: | About 30 days |
| Min. Order: | 50 ROLLS | ||
| Means of Transport: | Ocean, Air, Land | ||
FTP CAT6 LAN CABLE
1)23AWG Network Cable
2)Comply with UL and 11801, ISO/IEC ,TIA/EIA 568A/568B
3)4prs BC

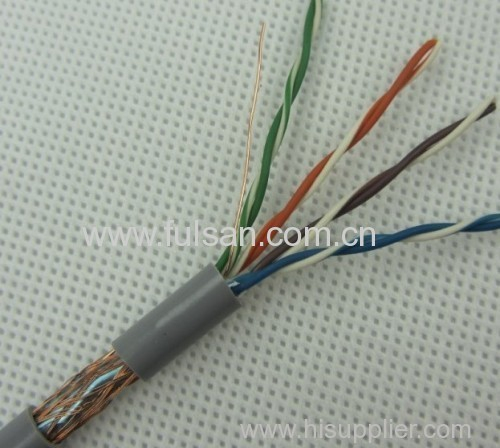

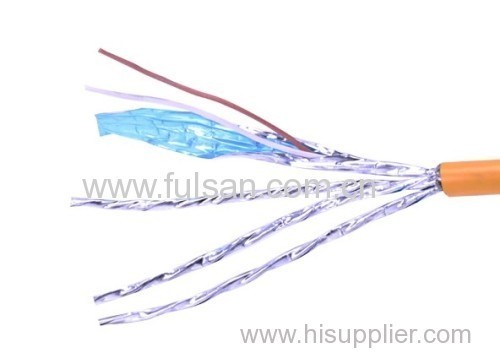

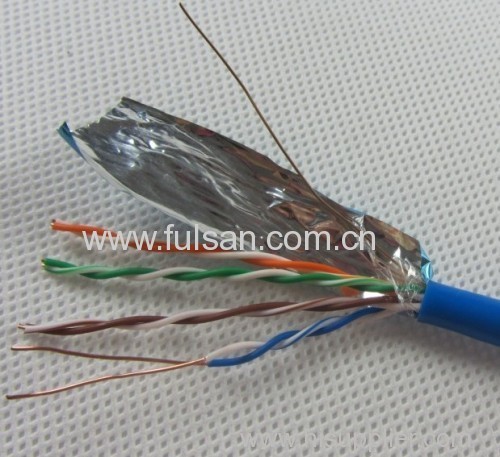

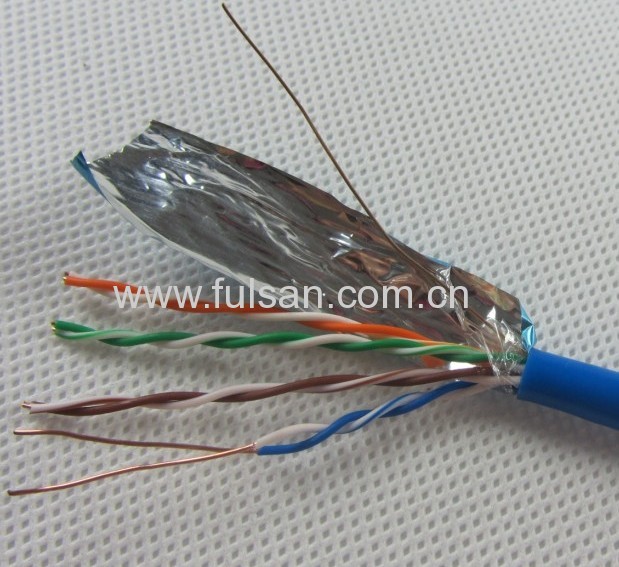

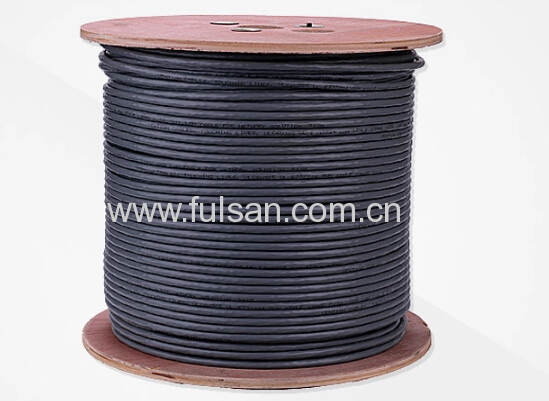

FTP CAT6 LAN CABLE
4-Pair 23AWG CAT6 FTP Network Cable
Application
10Base-T4 100Base-TX 100Base-VG-ANYLAN 155MbpsATM 622 MbpsATM 1000Base-T 10GBase-T
Standard: According to ISO / IEC 11801 , EN50173 TIA / EIA 568-B .
Frequency : 1250MHz (common standard)
General Characteristic :
Characteristic Impedance :100±10
Nominal Velocity of Propagation : 68%
Maximum Mutual Capacitance : 5.6 nF/100m
Maximum Capacitance Unbal ance : 330pF/100m
Maximum DC Resistance : 7.5O/ 100m
Maximum Resistance Unbalance : 3%
Maximum Propagation Delay Skew: 30ns/100m ( 1-125MHz )
Maximum Propagation Delay: 536 ns/100m @ 100MHz
Minimum Bending radius: 10×cable outer diameter
Volta ge Rating : 60Vrms
Maximum Pulling load: 80N
Working Temperature (-20) (+60)
Storage Temperature: (-5) (+50)
Flame Retardancy : IEC 332-1( FRPVC &LSOH jacket )
IEC 332-1 & IEC 332-3C (FR LSOH jacket) .
Usage: Network cabling
Certificate: UL, CE, CCC
Export to: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, MID East, Eastern Asia, Western Europe
| Model | CAT6 FTP Cable |
| Conductor Size | 23AWG |
| 0.48mm/0.49mm/0.5mm/0.51mm/0.57mm etc. | |
| Conductor Material | CCA/CCU/BC |
| Nuber Of Conductor | 4P |
| Shield | UTP/FTP |
| Flammability Grade | CMP,CMX,CM,CMG,MPG,CMR,MPR |
| Insulation Material | PE,HDPE,LSZH PE |
| Insulation Thickness | 0.91mm |
| Jacket Material | PVC, ROHS PVC, LSZH PVC |
| Outer Jacket Thickness | 5.2mm |
| DC Resistance(Max.) | 9.5Ω/100m |
| DC Resistance Imbalance | 2.50% |
| Working Capacitance(Max.) | 5.4nF/100m |
| Insulation Resistance | 10000 MΩ.km |
| Transmission Velocity | 65% |
| Operating Temperation | -40 °C - +75 °C |
| PVC Jacket Color | As client's request. |
| Marking On Jacket | On your request (Print your brand) |
