Hybrid Cable RG6+Cat5e for CATV and Computer Home Application

Quantity:
Payment & Shipping Terms Supply Capacity
Unit Price: 0.6 USD Production Capacity: 1000000drum/month
Trade Term: FOB Packing: According to client's...
Payment Terms: L/C, T/T, WU Delivery Date: 30 days
Min. Order: 5000 Meter
Means of Transport: Ocean, Air, Land

CAT 5e Construction:
1. Construction:
Conductor: Solid bare copper / AWG 24
Conductor Dia(mm): 0.50
Insulation: PE
Average thickness ( +/-0.03mm): 0.25mm
Min point thickness: 0.22mm
Insulation Dia ( +/-0.03mm): 1.00mm
Jacket: PVC or LSZH
Average thickness: 0.5
Min point thickness: 0.46
Outer Dia( +/-1.0mm) 5.1
Rip cord: YES
Core color:
Pair 1: Blue - white/blue
Pair 2: Orange - white/orange
Pair 3: Green - white/orange
Pair 4: Brown - white/brown

2. Electrical Performance (At 100MHz)
1.0-100.0MHz Impendance(ohms) 100+/-15
1.0-100.0MHz Impendance delay screw(ns/100m)<45
Pair to Ground Capacitance Unbalance (PF/100m) 330Max
Conductor DC resistance 20%(ohms/km)<93.8
Resistance Unbalance(%): 5
Spark Test 850 V AC
Dielectric Strength 2500 V DC / 3 seconds
Insulation Resistance Test Min. 150 MΩ /Km
Conductor Resistance Max. 9.38Ω /100m at 20
Resistance Unbalance Max. 5%
Capacitance Unbalance Max. 330 pF/100m
Mutual Capacitance Max. 5600 pF/100m

RG6 coaxial cable
1) Construction
Center Conductor: 1.02+0.01mm Solid Copper/Copper Clad Steel
Dielectric: 4.57+/-0.05mm Foam PE
Shield: Optional Bonded or unbonded Aluminum Foil or double Aluminum foil
Braid Coverage: 40 - 95% Al-Mg or copper or CCA wires
Jacket: 6.9+0.05mm PVC
Jelly/APD: Per Customers' Special Requirement

2) Characteristics
Sparker Test: 4000VAC
Impedance: 75+3 Ohm
Capacitance: 54+3pF/m
Velocity of Propagation: 85%
Return Loss: 20dB min (5-2300MHz)

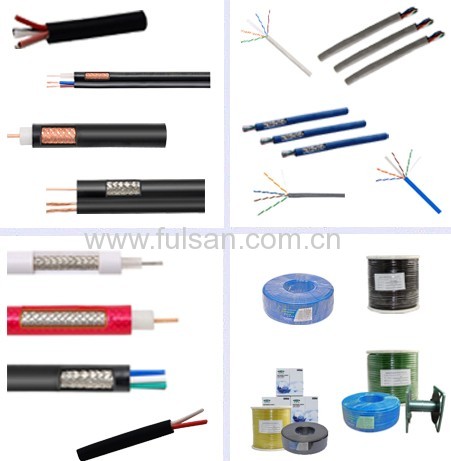

3) Composite available
1.2*RG6+2*CAT5e UTP or CAT6
2.2*RG6 TRI shield + 2*CAT5e UTP or CAT6
3.2*RG6 quad shield + 2*CAT5e UTP or CAT6
4.4*RG6 (different color, can be in standard shield, Tri shield or Quad super Shield)
5.5 Cat5e UTP...
More option available upon your requirements.

3. Package: 500ft, 1000ft wooden drum, and then pallet.

Attenuation [@68 o F. (20 o C. )]
Frequency (MHz) Maximum (dB/100 ft. ) Maximum (dB/100 m)
5 0.58 1.9
50 1.5 4.9
100 2.0 6.5
200 2.8 9.2
400 4.1 13.6
700 5.6 18.4
900 6.2 20.3
1000 6.5 21.4
1450 8.0 26.2
1800 8.5 27.9
2100 9.5 31.1
2250 10.0 34.0
3000 11.4 37.5


Category: Coaxial Cable
